Поз.
Артикул
Описание

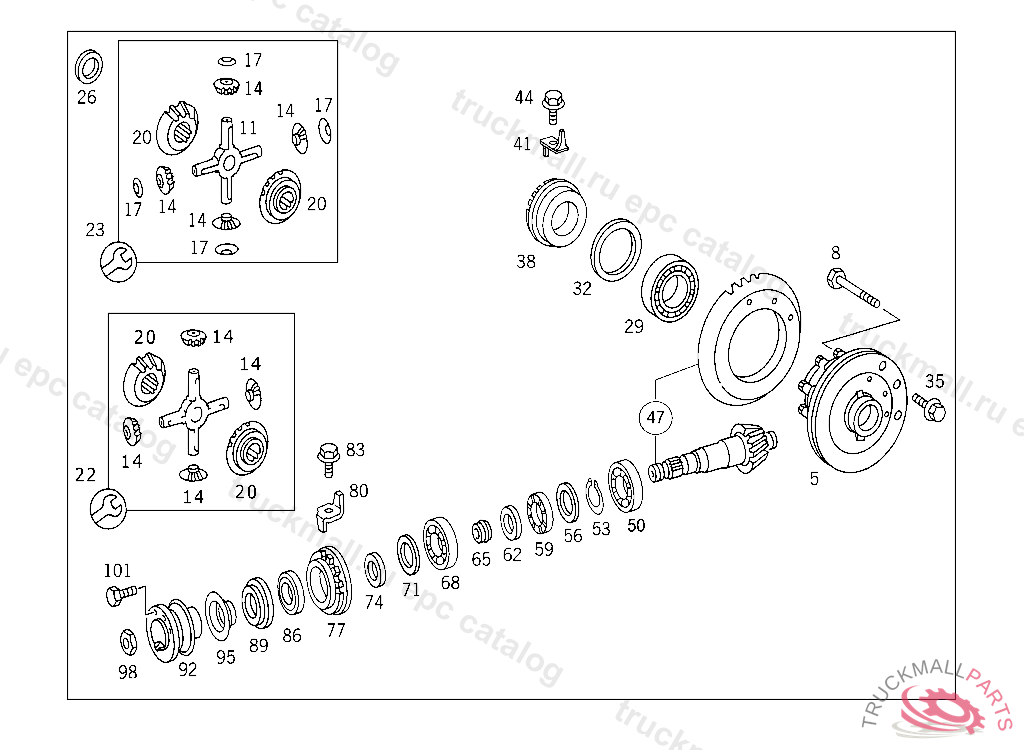

5
DIFFERENTIAL GEAR
5
DIFFERENTIAL GEAR LESS RING GEAR AND PINION
5
DIFFERENTIAL GEAR
5
DIFFERENTIAL GEAR LESS RING GEAR AND PINION
8
SCREW DIFFERENTIAL CASE
11
DIFFERENTIAL SPIDER DIFFERENTIAL GEAR
14
DIFFERENTIAL PINION , Replaced By: A6673530114, +004A6683530024
14
DIFFERENTIAL PINION DIFFERENTIAL GEAR TO A 667 353 00 15
17
SPHERICAL WASHER DIFFERENTIAL GEAR
20
SIDE GEAR DIFFERENTIAL GEAR
22
PARTS KIT DRIVE PINION
23
REPAIR KIT DIFFERENTIAL GEAR
26
THRUST WASHER AS REQUIRED 1.30 MM
26
THRUST WASHER , Replaced By: A6693530162
26
THRUST WASHER AS REQUIRED 1.40 MM
26
THRUST WASHER , Replaced By: A6693530362
26
THRUST WASHER AS REQUIRED 1.50 MM
26
THRUST WASHER , Replaced By: A6693530562
26
THRUST WASHER AS REQUIRED 1.60 MM
26
THRUST WASHER , Replaced By: A6693530762
26
THRUST WASHER AS REQUIRED 1.70 MM
26
THRUST WASHER , Replaced By: A6693530962
26
THRUST WASHER AS REQUIRED 1.80 MM
26
THRUST WASHER , Replaced By: A6693531162
29
TAPERED ROLLER BEARING RING GEAR BEARING
29
TAPERED ROLLER BEARING DIFFERENTIAL GEAR BEARING
32
SPACER WASHER AS REQUIRED 5.56 MM
32
SPACER WASHER AS REQUIRED 5.58 MM
32
SPACER WASHER AS REQUIRED 5.60 MM
32
SPACER WASHER AS REQUIRED 5.62 MM
32
SPACER WASHER AS REQUIRED 5.64 MM
32
SPACER WASHER AS REQUIRED 5.66 MM
32
SPACER WASHER AS REQUIRED 5.68 MM
32
SPACER WASHER AS REQUIRED 5.70MM
32
SPACER WASHER AS REQUIRED 5.72 MM
32
SPACER WASHER AS REQUIRED 5.74MM
32
SPACER WASHER AS REQUIRED 5.76 MM
32
SPACER WASHER AS REQUIRED 4.90 MM
32
SPACER WASHER AS REQUIRED 5.82MM
32
SPACER WASHER AS REQUIRED 5.00 MM
32
SPACER WASHER AS REQUIRED 5.80 MM
32
COMPENSATING DISC. SPACER WASHER , Replaced By: A6013536454
32
SPACER WASHER AS REQUIRED 5.84 MM
32
SPACER WASHER AS REQUIRED 5.86MM
32
SPACER WASHER AS REQUIRED 5.88 MM
32
SPACER WASHER AS REQUIRED 5.90MM, Replaced By: A6013536854
32
SPACER WASHER AS REQUIRED 5.90MM
32
SPACER WASHER AS REQUIRED 4.92 MM, Replaced By: A6013537052
32
COMPENSATING DISC. SPACER WASHER , Replaced By: A6013537054
32
SPACER WASHER AS REQUIRED 4.92 MM
32
SPACER WASHER AS REQUIRED 5.96 MM
32
SPACER WASHER AS REQUIRED 4.96 MM, Replaced By: A6013537252
32
SPACER WASHER AS REQUIRED 5,94MM
32
SPACER WASHER AS REQUIRED 4.96 MM
32
SPACER WASHER AS REQUIRED 6.00 MM
32
SPACER WASHER AS REQUIRED 5.02 MM, Replaced By: A6013537452
32
SPACER WASHER AS REQUIRED 5.02 MM
32
SPACER WASHER AS REQUIRED 6.04 MM
32
SPACER WASHER AS REQUIRED 5.06 MM, Replaced By: A6013537652
32
SPACER WASHER AS REQUIRED 6.06MM
32
SPACER WASHER AS REQUIRED 5.06 MM
32
SPACER WASHER AS REQUIRED 6.08 MM
32
SPACER WASHER AS REQUIRED 5.12 MM
32
SPACER WASHER AS REQUIRED 6.10 MM
32
SPACER WASHER AS REQUIRED 5.12 MM, Replaced By: A6013537752
32
SPACER WASHER AS REQUIRED 6.12 MM
32
SPACER WASHER AS REQUIRED 5.14MM
32
SPACER WASHER DIFFERENTIAL GEAR,REAR,AS REQUIRED 6.14 MM
32
SPACER WASHER AS REQUIRED 5.16 MM
32
SPACER WASHER AS REQUIRED 6.16 MM
32
SPACER WASHER AS REQUIRED 5.18MM
32
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 6.18 MM, 88.5/76.0 MM
32
SPACER WASHER AS REQUIRED 5.20 MM
32
SPACER WASHER AS REQUIRED 6.20 MM
32
SPACER WASHER AS REQUIRED 5.22MM
32
SPACER WASHER DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 6.22 MM, 88.5/76.0 MM
32
SPACER WASHER AS REQUIRED 5.24 MM
32
SPACER WASHER AS REQUIRED 6.24 MM
32
SPACER WASHER AS REQUIRED 5.26MM
32
SPACER WASHER DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 6.26 MM, 88.5/76.0 MM
32
SPACER WASHER AS REQUIRED 5.28 MM
32
SPACER WASHER AS REQUIRED 6.28 MM
32
SPACER WASHER AS REQUIRED 5.30MM
32
SPACER WASHER AS REQUIRED 6.30 MM
32
SPACER WASHER AS REQUIRED 5.32 MM
32
SPACER WASHER AS REQUIRED 6.32 MM
32
SPACER WASHER AS REQUIRED 5.34MM
32
SPACER WASHER DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 6.34 MM, 88.5/76.0 MM
32
SPACER WASHER AS REQUIRED 5.36 MM
32
SPACER WASHER AS REQUIRED 6.36 MM
32
COMPENSATING DISC. SPACER WASHER , Replaced By: A6013539252
32
SPACER WASHER DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, REAR,AS REQUIRED 6.38 MM
32
SPACER WASHER AS REQUIRED 5.40 MM
32
SPACER WASHER AS REQUIRED 5.42 MM
32
SPACER WASHER AS REQUIRED 5.44 MM
32
SPACER WASHER AS REQUIRED 5.46 MM
32
SPACER WASHER AS REQUIRED 5.48 MM
32
SPACER WASHER AS REQUIRED 5.50 MM
32
SPACER WASHER AS REQUIRED 5.52 MM
32
SPACER WASHER AS REQUIRED 5.54 MM
35
SCREW RING GEAR TO DIFFERENTIAL CASE
35
SCREW RING GEAR TO DIFFERENTIAL CASE
35
SCREW , Replaced By: A6019900501
47
RING GEAR AND PINION , Replaced By: A6683500439, +001A6023530048
47
RING GEAR AND PINION , Replaced By: A6683500739, +001A6013510172
47
RING GEAR AND PINION RATIO: 41.11
47
BEVEL GEAR SET RATIO: 41(41:11)
47
DRIVE PINION , Replaced By: A6683500739
47
DRIVE PINION RATIO: 11(41:11), Replaced By: A9033500739
50
TAPERED ROLLER BEARING DRIVE SHAFT,REAR
50
TAPERED ROLLER BEARING DRIVE SHAFT,REAR
50
TAPERED ROLLER BEARING DRIVE SHAFT,REAR
50
TAPERED ROLLER BEARING DRIVE SHAFT,REAR
56
SPACER WASHER AS REQUIRED 5.56 MM
56
SPACER WASHER AS REQUIRED 5.58 MM
56
SPACER WASHER AS REQUIRED 5.60 MM
56
SPACER WASHER AS REQUIRED 5.62 MM
56
SPACER WASHER AS REQUIRED 5.64 MM
56
SPACER WASHER AS REQUIRED 5.66 MM
56
SPACER WASHER AS REQUIRED 5.68 MM
56
SPACER WASHER AS REQUIRED 5.70MM
56
SPACER WASHER AS REQUIRED 5.72 MM
56
SPACER WASHER AS REQUIRED 5.74MM
56
SPACER WASHER AS REQUIRED 5.76 MM
56
SPACER WASHER AS REQUIRED 4.90 MM
56
SPACER WASHER AS REQUIRED 5.82MM
56
SPACER WASHER AS REQUIRED 5.00 MM
56
SPACER WASHER AS REQUIRED 5.80 MM
56
COMPENSATING DISC. SPACER WASHER , Replaced By: A6013536454
56
SPACER WASHER AS REQUIRED 5.84 MM
56
SPACER WASHER AS REQUIRED 5.86MM
56
SPACER WASHER AS REQUIRED 5.88 MM
56
SPACER WASHER AS REQUIRED 5.90MM, Replaced By: A6013536854
56
SPACER WASHER AS REQUIRED 5.90MM
56
SPACER WASHER AS REQUIRED 4.92 MM, Replaced By: A6013537052
56
COMPENSATING DISC. SPACER WASHER , Replaced By: A6013537054
56
SPACER WASHER AS REQUIRED 4.92 MM
56
SPACER WASHER AS REQUIRED 5.96 MM
56
SPACER WASHER AS REQUIRED 4.96 MM, Replaced By: A6013537252
56
SPACER WASHER AS REQUIRED 5,94MM
56
SPACER WASHER AS REQUIRED 4.96 MM
56
SPACER WASHER AS REQUIRED 6.00 MM
56
SPACER WASHER AS REQUIRED 5.02 MM, Replaced By: A6013537452
56
SPACER WASHER AS REQUIRED 6.02MM
56
SPACER WASHER AS REQUIRED 5.02 MM
56
SPACER WASHER AS REQUIRED 6.04 MM
56
SPACER WASHER AS REQUIRED 5.06 MM, Replaced By: A6013537652
56
SPACER WASHER AS REQUIRED 6.06MM
56
SPACER WASHER AS REQUIRED 5.06 MM
56
SPACER WASHER AS REQUIRED 6.08 MM
56
SPACER WASHER AS REQUIRED 5.12 MM
56
SPACER WASHER AS REQUIRED 6.10 MM
56
SPACER WASHER AS REQUIRED 5.12 MM, Replaced By: A6013537752
56
SPACER WASHER AS REQUIRED 6.12 MM
56
SPACER WASHER AS REQUIRED 5.14MM
56
SPACER WASHER DIFFERENTIAL GEAR,REAR,AS REQUIRED 6.14 MM
56
SPACER WASHER AS REQUIRED 5.16 MM
56
SPACER WASHER AS REQUIRED 6.16 MM
56
SPACER WASHER AS REQUIRED 5.18MM
56
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 6.18 MM, 88.5/76.0 MM
56
SPACER WASHER AS REQUIRED 5.20 MM
56
SPACER WASHER AS REQUIRED 6.20 MM
56
SPACER WASHER AS REQUIRED 5.22MM
56
SPACER WASHER DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 6.22 MM, 88.5/76.0 MM
56
SPACER WASHER AS REQUIRED 5.24 MM
56
SPACER WASHER AS REQUIRED 6.24 MM
56
SPACER WASHER AS REQUIRED 5.26MM
56
SPACER WASHER DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 6.26 MM, 88.5/76.0 MM
56
SPACER WASHER AS REQUIRED 5.28 MM
56
SPACER WASHER AS REQUIRED 6.28 MM
56
SPACER WASHER AS REQUIRED 5.30MM
56
SPACER WASHER AS REQUIRED 6.30 MM
56
SPACER WASHER AS REQUIRED 5.32 MM
56
SPACER WASHER AS REQUIRED 6.32 MM
56
SPACER WASHER AS REQUIRED 5.34MM
56
SPACER WASHER DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 6.34 MM, 88.5/76.0 MM
56
SPACER WASHER AS REQUIRED 5.36 MM
56
SPACER WASHER AS REQUIRED 6.36 MM
56
COMPENSATING DISC. SPACER WASHER , Replaced By: A6013539252
56
SPACER WASHER DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, REAR,AS REQUIRED 6.38 MM
56
SPACER WASHER AS REQUIRED 5.40 MM
56
SPACER WASHER AS REQUIRED 5.42 MM
56
SPACER WASHER AS REQUIRED 5.44 MM
56
SPACER WASHER AS REQUIRED 5.46 MM
56
SPACER WASHER AS REQUIRED 5.48 MM
56
SPACER WASHER AS REQUIRED 5.50 MM
56
SPACER WASHER AS REQUIRED 5.52 MM
56
SPACER WASHER AS REQUIRED 5.54 MM
62
RING
65
SPACER BUSHING
65
SPACER TUBE INSIDE DIAMETER X LENGTH: 34X21MM
68
TAPERED ROLLER BEARING DRIVE SHAFT,FRONT
68
TAPERED ROLLER BEARING DRIVE SHAFT,FRONT
68
TAPERED ROLLER BEARING DRIVE SHAFT,FRONT
68
TAPERED ROLLER BEARING DRIVE SHAFT,FRONT
89
SEAL RING PINION,OUTSIDE
92
FLANGE (COUPLING FLANGE),DIA., 120 MM
98
NUT FLANGE TO DRIVE PINION
98
NUT FLANGE TO PINION,R 067538
98
NUT , Replaced By: A6013510072
