Mercedes A0009906804 - Болт

HL 1/9-5,6 741.580

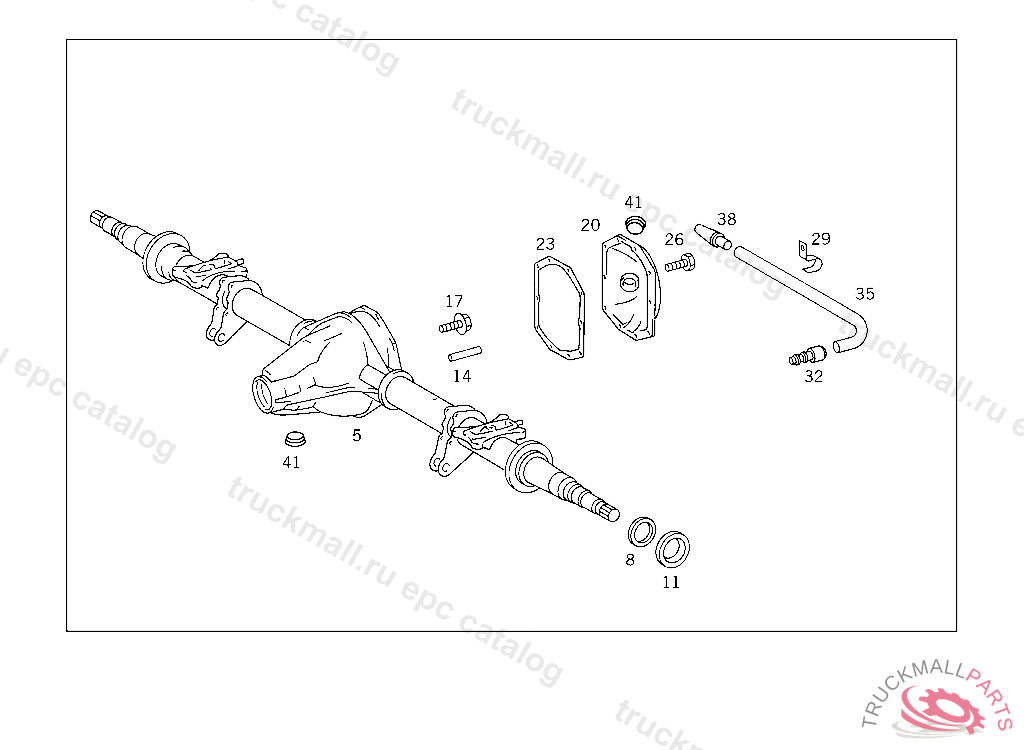

35 REAR AXLE - 250 AXLE CASING,ATTACHMENT PARTS

Поз.
Артикул
Описание
5
A6693501020
AXLE HOUSING WITH REAR AXLE TUBES
8
A3183560515
THRUST RING LEFT AND RIGHT
11
A3093570082
OIL COLLECTOR REAR AXLE TUBE
11
A3143570082
OIL COLLECTOR
14
N000007006205
CYLINDRICAL PIN
17
A0009906804
SCREW SUPPORT TO CYLINDER CRANKCASE
20
A6733500021
COVER , Replaced By: A6733510408
20
A6733510408
COVER REAR AXLE HOUSING
23
A6733510080
GASKET COVER TO DIFFERENTIAL CASE TO 673 350 00 21
26
A0009908704
SCREW COVER TO AXLE HOUSING M 10X20, TO 673 350 00 21, 02 21
26
N914112010016
SCREW COVER TO REAR AXLE HOUSING TO 615 350 04 21,615 351 07 08
32
A3833510065
FITTING BLEEDING
32
A9013510065
FITTING AXLE BREATHING
41
A3529970032
SCREW PLUG BELL HOUSING
