Поз.
Артикул
Описание

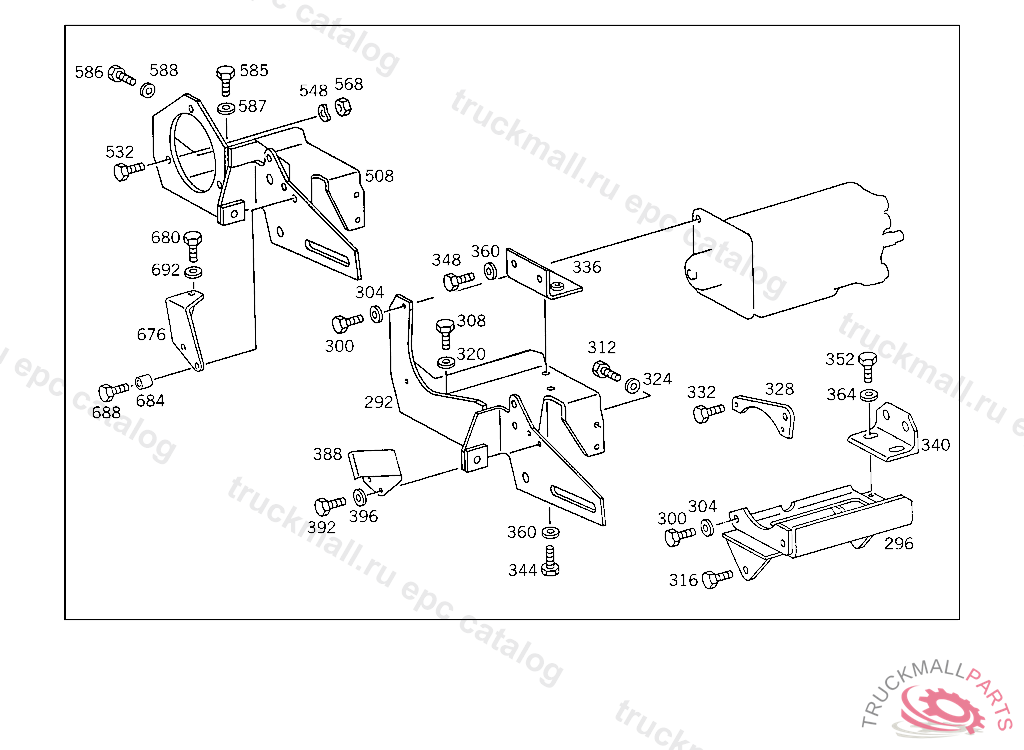

292
SUPPORT (CONSOLE),COMPRESSOR
296
SUPPORT (CONSOLE),COMPRESSOR
300
SCREW REFRIGERANT COMPRESSOR MOUNTING PARTS
304
WASHER , Replaced By: N000125008443
304
WASHER EXHAUST MUFFLER TO STRAP
308
SCREW , Replaced By: N304017012020
308
SCREW END PIECE TO EXHAUST PIPE M 12X30
312
SCREW PIPE ELBOW TO BRACKET M 10X50
312
SCREW , Replaced By: N304017010053
316
SCREW REFRIGERANT LINE TO COMPRESSOR,5 017486
320
WASHER
324
WASHER STRUT TO CROSS MEMBER
324
WASHER , Replaced By: N007349010007
328
BRACKET REFRIGERANT COMPRESSOR
332
SCREW REFRIGERANT COMPRESSOR MOUNTING PARTS
336
BRACKET COMPRESSORE CONSOLE
340
BRACKET COMPRESSORE CONSOLE
344
SCREW , Replaced By: N304017010040
344
SCREW STRUT TO CROSS MEMBER M 10X25
348
SCREW REFRIGERANT COMPRESSOR MOUNTING PARTS
352
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
352
SCREW CLUTCH TO FLYWHEEL M8X18,4 188090-4 277323
360
WASHER RADIATOR TO RUBBER MOUNTING
364
WASHER
388
SCREENING PLATE COMPRESSORE CONSOLE
392
SCREW CLUTCH TO FLYWHEEL M8X18,4 188090-4 277323
396
WASHER , Replaced By: N000125008443
396
WASHER EXHAUST MUFFLER TO STRAP
508
SUPPORT (CONSOLE),HYDRAULIC PUMP
532
SCREWM 8X40
532
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
532
SCREW CONSOLE TO REAR CROSS MEMBER M 8X38
548
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
548
SPRING WASHER , Replaced By: N000137008212
568
NUT , Replaced By: N304032008006
568
NUT
568
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
585
SCREW END PIECE TO EXHAUST PIPE M 12X30
585
SCREW , Replaced By: N304017012020
586
SCREW , Replaced By: N304017010053
586
SCREW PIPE ELBOW TO BRACKET M 10X50
587
WASHER
588
WASHER STRUT TO CROSS MEMBER
588
WASHER , Replaced By: N007349010007
676
BRACKET COMPRESSORE CONSOLE
680
SCREW END PIECE TO EXHAUST PIPE M 10X25
684
SPACER TUBE MOUNTING PLATE TO CYLINDER CRANKCASE
688
SCREW RADIATOR M 10X45
692
WASHER RADIATOR TO RUBBER MOUNTING
999
CYLINDER HEAD , Replaced By: A0001303619, +001N070614010021
999
BALL BEARING PULLEY
999
CLAMP , Replaced By: N916016011202
999
COMPRESSOR , Replaced By: A0031312501
999
BALL BEARING , Replaced By: A0039818025
999
NUT , Replaced By: A0029908051
999
V-BELT , Replaced By: A0049970192
999
V-BELT , Replaced By: A0039970192
999
V-BELT , Replaced By: A0099976892
999
V-BELT12.5X1725
999
V-BELT , Replaced By: A0049976992
999
V-BELT , Replaced By: A0099976992
999
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
999
OIL FILLER NECK , Replaced By: A3520106164
999
VIBRATION ABSORBER VIBRATION ABSORBER
999
CRANKSHAFT , 044067, Replaced By: A3520305601, +001A3140350214
999
VIBRATION ABSORBER , Replaced By: A3520303403
999
POINTER , Replaced By: A3520321515
999
THRUST RING
999
PULLEY , Replaced By: A3520352312
999
PULLEY , Replaced By: A3662051308
999
BEARING RING DRIVE, NOT USED
999
NUT ALTERNATOR
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 810351, Replaced By: A3661550127
999
BUSHING
999
SCREENING PLATE , Replaced By: A3522030192
999
ENGINE SUPPORT , Replaced By: A3622200016
999
ENGINE SUPPORT FRONT
999
BEARING BRACKET , Replaced By: A3522300139
999
FLANGE PROPELLER SHAFT TO DRIVE,518930
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 775696, Replaced By: A3622300040
999
BRACKET
999
PULLEY , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 4 629840, Replaced By: A3522361510
999
WASHER , Replaced By: A3149900940
999
WASHER , Replaced By: N000433010510
999
WASHER VIBRATION ABSORBER TO BRACKET
999
NARROW V-BELT , Replaced By: A0039970592
