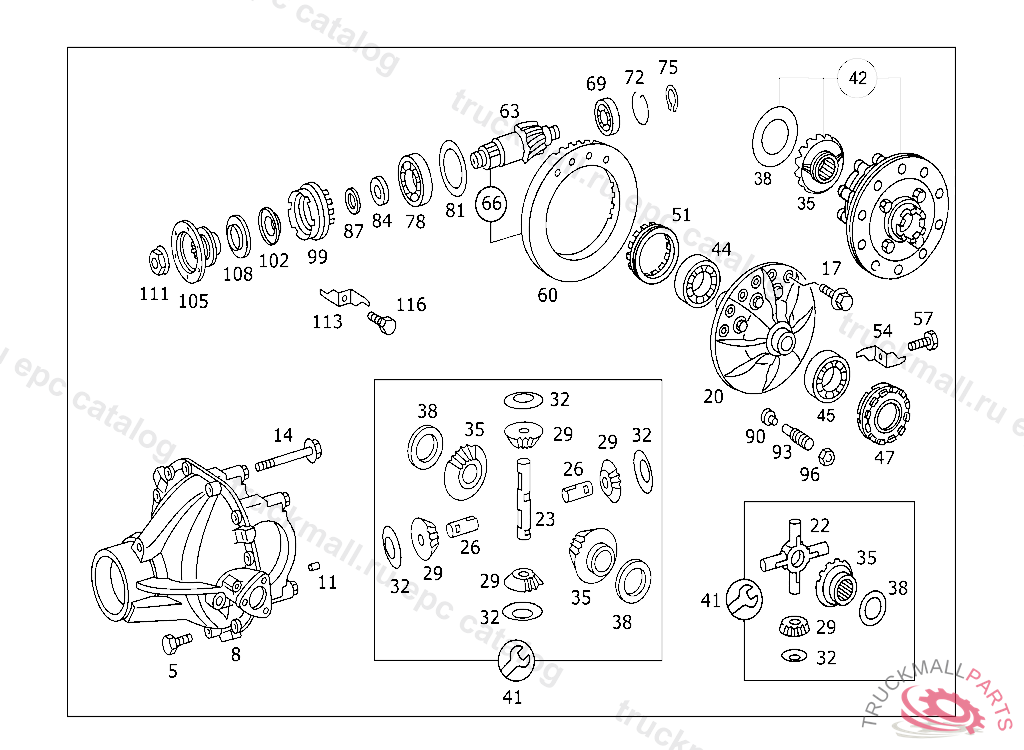

Поз.
Артикул
Описание
14
SCREW COVER TO DIFFERENTIAL CASE
14
SCREW STEERING ARM TO STEERING KNUCKLE M 14X50, SERRATED BOLT
17
SCREW RING GEAR TO DIFFERENTIAL CASE,2 135404
20
DIFFERENTIAL GEAR LESS FLANGE
20
DIFFERENTIAL GEAR LESS RING GEAR AND PINION
20
DIFFERENTIAL GEAR LESS RING GEAR AND PINION
20
DIFFERENTIAL GEAR WITH SIDE GEARS AND DIFFERENTIAL PINIONS, 003723
22
DIFFERENTIAL SPIDER DIFFERENTIAL GEAR
29
DIFFERENTIAL PINION DIFFERENTIAL GEAR
32
SPHERICAL WASHER DIFFERENTIAL GEAR BEARING,2 603408
35
SIDE GEAR LEFT AND RIGHT
35
SIDE GEAR , NOT USED ONLY REPLACEABLE BY THE SET
38
THRUST WASHER SIDE GEAR
38
THRUST WASHER SIDE GEAR
41
REPAIR KIT DIFFERENTIAL GEAR
41
REPAIR KIT DIFFERENTIAL GEAR
44
TAPERED ROLLER BEARING FRONT
44
TAPERED ROLLER BEARING
44
TAPERED ROLLER BEARING ANNULUS,FRONT
44
TAPERED ROLLER BEARING ANNULUS,FRONT
44
TAPERED ROLLER BEARING DIFFERENTIAL GEAR,RIGHT
44
TAPERED ROLLER BEARING BOTTOM REAR COVER
44
TAPERED ROLLER BEARING BOTTOM REAR COVER
44
TAPERED ROLLER BEARING DIFFERENTIAL GEAR,RIGHT
44
TAPERED ROLLER BEARING
47
SCREW COLLAR
51
SCREW COLLAR
54
LOCK , UP TO REAR AXLE 154947, FROM REAR AXLE,SEE UNIT MICROFICHE 816,MODEL 743.4
54
LOCK
54
LOCK SCREW COLLAR
57
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
66
RING GEAR AND PINION43:11
66
RING GEAR AND PINION RATIO: 40:7
66
RING GEAR AND PINION
66
RING GEAR AND PINION DIFFERENTIAL GEAR,RATIO: 41:13
66
RING GEAR AND PINION43:11
66
RING GEAR AND PINION RATIO: 40:11
66
RING GEAR AND PINION38:13
66
RING GEAR AND PINION RATIO: 10:43, 309.370-391 FROM CHASSIS 012169,309.4 FROM CHASSIS 085136
69
CYLINDR. ROLLER BEARING
69
CYLINDR. ROLLER BEARING , 309.370-391 FROM CHASSIS 012169,309.4 FROM CHASSIS 085136
69
CYLINDR. ROLLER BEARING , 309.370-391 FROM CHASSIS 012169,309.4 FROM CHASSIS 085136
69
CYLINDR. ROLLER BEARING , 309.370-391 FROM CHASSIS 012169,309.4 FROM CHASSIS 085136
72
SNAP RING
75
LOCK RING
78
TAPERED ROLLER BEARING DRIVE PINION BEARING, F 016457
78
TAPERED ROLLER BEARING DRIVE PINION BEARING,F 016457
78
TAPERED ROLLER BEARING DRIVE PINION BEARING,F 016457
81
SPACER WASHER0.1 MM
81
SPACER WASHER0.5 MM
81
SPACER WASHER0.20 MM
81
SPACER WASHER0.15 MM
84
SPACER RING , UP TO REAR AXLE 154947, FROM REAR AXLE,SEE UNIT MICROFICHE 816,MODEL 743.4
84
SPACER RING DRIVE PINION,AS REQUIRED 7.20 MM,F 016457
84
SPACER RING DRIVE PINION,AS REQUIRED 7.04 MM
84
SPACER RING DRIVE PINION,AS REQUIRED 7.40 MM
84
COMPENSATING RING DRIVE PINION,AS REQUIRED 7.24 MM
84
SPACER RING
84
SPACER RING
84
SPACER RING DRIVE PINION,AS REQUIRED 7.24 MM
84
SPACER RING DRIVE PINION BEARING,AS REQUIRED 7.50 MM
90
SLIDE
93
SET SCREW
93
SET SCREW , UP TO REAR AXLE 321.0/1-058524 OR UP TO CHASSIS 002010 AND FOOTNOTE 8
96
HEXAGON NUT RING GEAR CHECK M22X1.5
99
SCREW COLLAR RING GEAR AND PINION SETTING,F 016457
102
SEAL RING
105
FLANGE DRIVE
105
FLANGE
105
FLANGE (COUPLING FLANGE)
108
PROTECTIVE PLATE
111
NUT
113
LOCK
116
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
999
FINAL DRIVE , IDENTIFY MAJOR ASSEMBLY FROM VEDOC OR ORDER BY SPECIFYING THE VEHICLE IDENT NO. OR MAJOR ASSEMBLY NUMBER.
