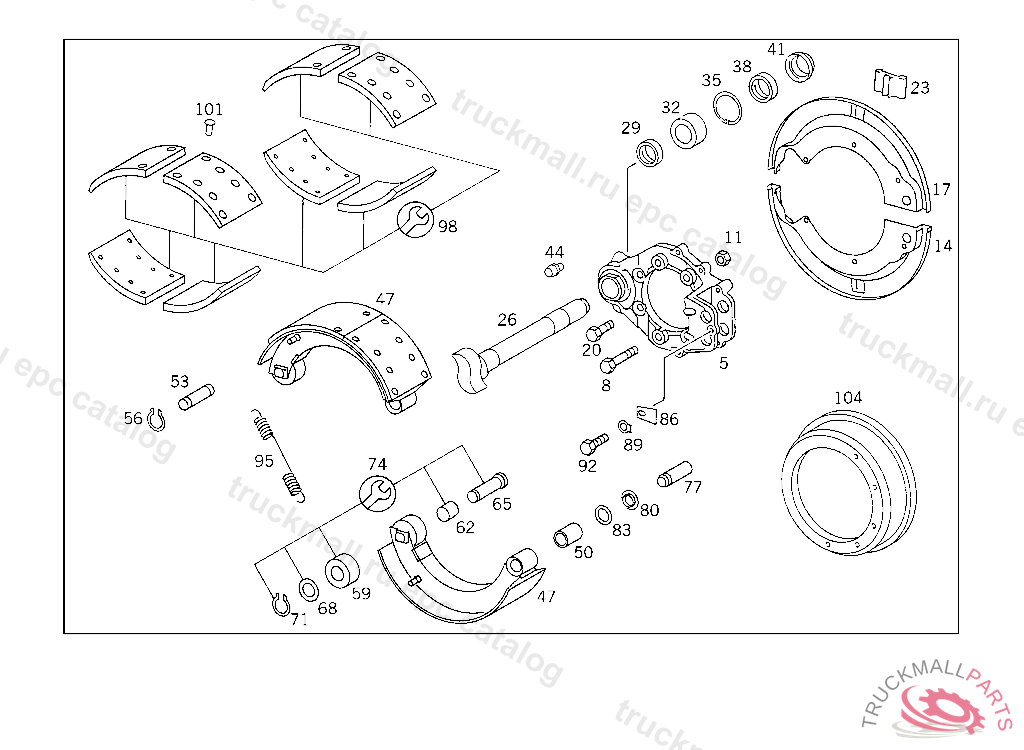

Поз.
Артикул
Описание
5
BRAKE ANCHOR (BRAKE ANCHOR)
8
SCREW , Replaced By: A3469902604
8
SCREW REAR WHEEL BRAKE TO REAR AXLE
11
NUT BEARING BRACKET TO BRAKE ANCHOR
11
NUT WITH COLLAR
11
NUT , Replaced By: A0009905750
14
PROTECTIVE PLATE , Replaced By: A6954200044
17
PROTECTIVE PLATE , Replaced By: A6954200044
20
SCREW BRAKE SHOE TO BRAKE ANCHOR PLATE TO 302 420 11 16
23
PLUG PROTECTIVE PLATE
26
BRAKE CAMSHAFT LEFT
26
BRAKE CAMSHAFT RIGHT
26
BRAKE CAMSHAFT LEFT
26
BRAKE CAMSHAFT RIGHT
29
SEAL RING BRAKE CAMSHAFT BEARING
29
SEAL RING OUTSIDE BEARING BRACKET
29
SEAL RING OUTSIDE BEARING BRACKET
29
SEAL RING OUTSIDE BEARING BRACKET
32
JOINT BEARING BRAKE CAMSHAFT BEARING IN CASE
32
JOINT BEARING BRAKE CAMSHAFT BEARING IN CASE
32
JOINT BEARING BEARING BRACKET
35
SNAP RING BEARING BRACKET TO AXLE
35
SNAP RING BRAKE CAMSHAFT BEARING
38
SEAL RING INSIDE BEARING BRACKET
38
SEAL RING BRAKE CAMSHAFT BEARING IN CASE
38
SEAL RING INSIDE BEARING BRACKET
41
SEAL HOLDER , Replaced By: A9454230058
41
SEAL HOLDER BEARING BRACKET
44
GREASE NIPPLE , Replaced By: N071412008102
47
BRAKE SHOE , FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE 669844, Replaced By: A3454200419
50
BUSHING ,669844
53
PIN , Replaced By: A6584210074
56
LOCK RING
59
ROLLER , Replaced By: A3014200039, +002A0039971548
62
BUSHING
62
BUSHING
65
PIN , Replaced By: A3074200339
68
FITTED WASHER BRAKE SHOE ROLLER
68
WASHER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N000988017100
71
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
74
ROLLER , Replaced By: A3014200039, +002A0039971548
77
PIN BRAKE SHOE TO BRAKE ANCHOR PLATE,078418
77
PIN , Replaced By: A3454217074
80
SPACER WASHER BRAKE SHOE TO BRAKE ANCHOR
83
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
86
LOCK BRAKE SHOE TO BRAKE ANCHOR
89
LOCK PLATE BRAKE SHOE TO BRAKE ANCHOR PLATE, UP TO CHASSIS 588185,FROM CHASSIS FB588186,SEE SPARE PARTS LIS T,BM 732.7
89
LOCK BRAKE SHOE TO BRAKE ANCHOR PLATE, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185 UP TO CHASSIS FB588185,FROM CHASSIS FB588186,SEE SPARE PARTS LIST 743.0
92
SCREW SELF-LOCKING M 10X20
92
SCREW BRACKET TO STEERING
95
SPRING BRAKE SHOE IN WELDED VERSION
95
SPRING , Replaced By: A6179931110
98
BRAKE LINING (BRAKE LINING SET),REPAIR SIZE I 18.8 MM
98
BRAKE LINING (BRAKE LINING SET),STANDARD 18.0 MM
98
BRAKE LINING (BRAKE LINING SET),REPAIR SIZE II 19.50 MM X 160 MM
98
BRAKE LINING (BRAKE LINING SET),REPAIR SIZE 0 16.70 MM X 160 MM
101
PANHEAD RIVET BRAKE LINING TO BRAKE SHOE 15 MM
101
RIVET BRAKE LINING 15 MM
104
BRAKE DRUM
999
PROTECTIVE PLATE PARTS KIT
