Mercedes A3973560115 -

HH 4/12D-10/43:10 743.085

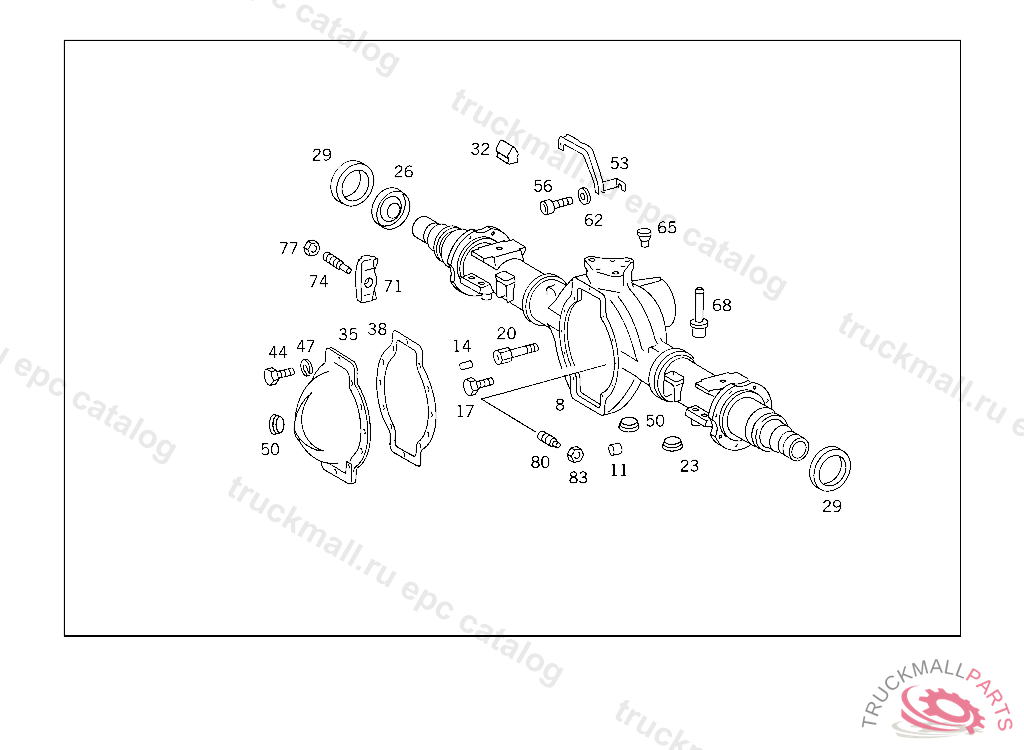

35 743.0 REAR AXLE - 200 REAR AXLE,AXLE CASING,ATTACHMENT PARTS IL. 2

Поз.
Артикул
Описание
8
A3903500120
AXLE HOUSING
14
N000007006205
CYLINDRICAL PIN
17
A0049908304
SCREW BEARING COVER TO AXLE HOUSING M 16X95
20
A6169900204
SCREW BEARING COVER TO AXLE HOUSING
29
A3973560115
THRUST RING AXLE TUBE TO AXLE HOUSING
35
A3453510108
COVER REAR AXLE HOUSING
44
A0049909904
SCREW COVER TO REAR AXLE HOUSING
44
A0059900104
SCREW COVER TO REAR AXLE HOUSING M 10X60
50
A0009973432
SCREW PLUG HOUSING,BOTTOM,183596
50
A9049900512
SCREW PLUG OIL FILLING, Replaced By: A0009976232
50
A0009972632
SCREW PLUG HOUSING,BOTTOM,183596
53
A3643507065
OIL SCRAPER
56
N000912008000
SCREW , UP TO REAR AXLE 11016,FROM REAR AXLE SEE SPARE PARTS LIST 816
62
N000125008417
WASHER TRAILER PLUG SOCKET TO BRACKET
68
A6883517065
FITTING BREATHER
71
A3853530149
SLIDE , NOT USED
74
A3833530276
SET SCREW RING GEAR CHECK
77
A3159900051
NUT SET SCREW
80
A3853370171
SCREW
83
N070852014000
NUT COVER TO REAR AXLE HOUSING
999
A6843500501
REAR AXLE WITH BRAKES 43:10
