Mercedes N304017008034 - Болт крепления

OM 355 355.964 TO MOTOR 533223

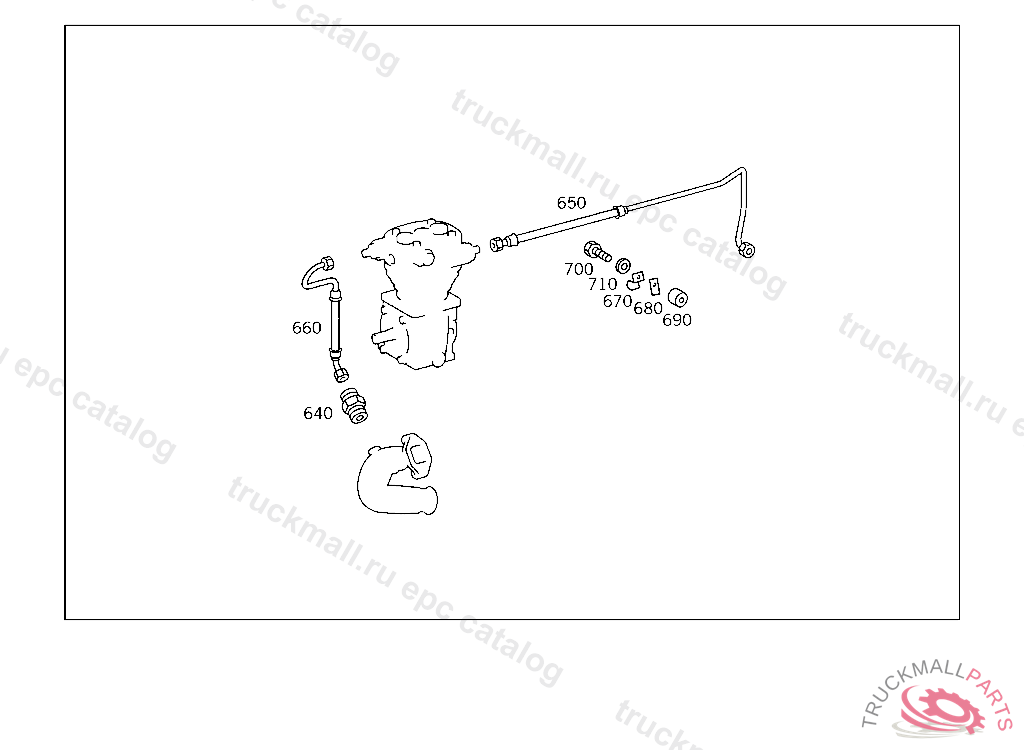

13 AIR COMPRESSOR - 001 ONE-CYLINDER AIR COMPRESSOR,WATER-COOLED IL.2

Поз.
Артикул
Описание
640
A4039971172
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
650
A3552030582
HOSE FROM CYLINDER CRANKCASE TO AIR COMPRESSOR
660
A3552030482
HOSE FROM AIR COMPRESSOR TO OIL-TANK COOLING WATER LINE
670
A3049951720
CLAMP COMPRESSED AIR LINE TO FRAME
680
A3552030084
SHIM
690
A3469910040
SPACER SLEEVE. SPACER TUBE FAN SHROUD TO RADIATOR,4 1619994 428844
700
N000933008153
SCREW , Replaced By: N304017008034
700
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
710
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
710
N000125008418
WASHER , Replaced By: N000125008443
999
A0001312408
SPRING TOP
999
A0001312508
SPRING BOTTOM
999
A0001315211
PISTON RING TOP
999
A0001315311
PISTON RING BOTTOM
999
A0001315411
PISTON RING
999
A0021313601
COMPRESSOR , Replaced By: A0041310301
999
A3350103508
CRANKCASE
999
N007603026104
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
