Mercedes N000939010050 -

OM 355 A 355.977 TO MOTOR 533223

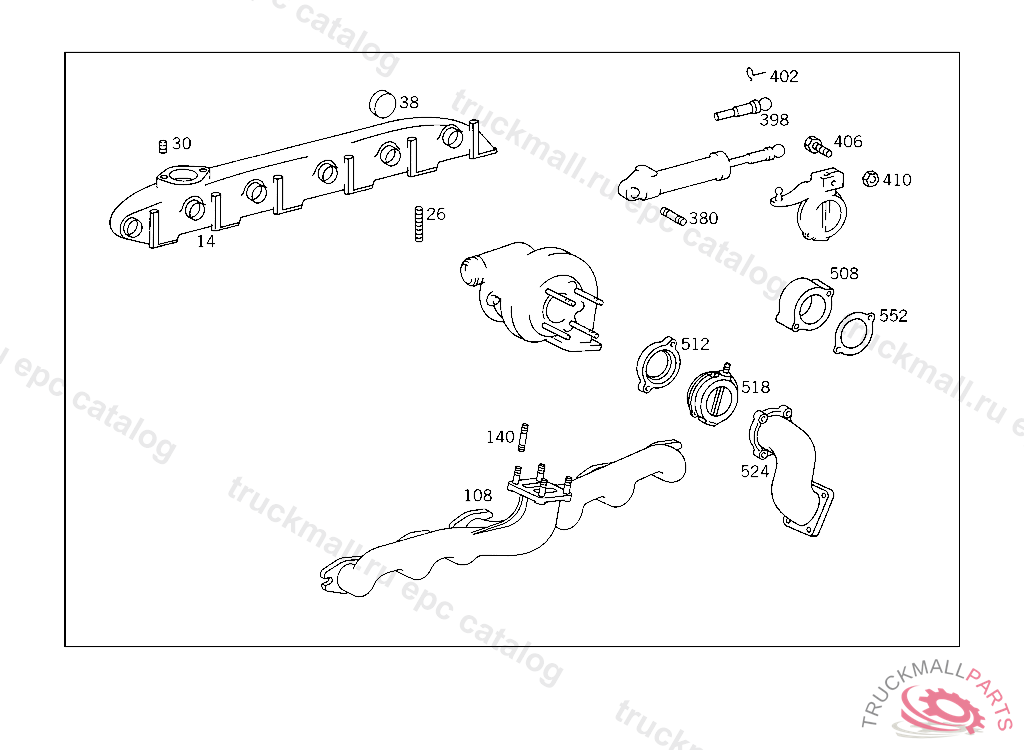

14 INTAKE AND EXHAUST MANIFOLDS - 001 INTAKE AND EXHAUST MANIFOLDS IL. 3

Поз.
Артикул
Описание
14
A3551401501
INTAKE MANIFOLD
26
N900421008004
THREADED INSERT
30
N900421012005
THREADED INSERT
38
A3269970720
EXPANSION PLUG
108
A3551401114
EXHAUST MANIFOLD
140
N000939010050
STUD BOLT BEARING COVER TO TRANSMISSION CASE, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
380
N000835008099
STUD
398
A3511400146
ROD
402
N071805013402
SECURING CLIP. CIRCLIP
406
N000933008152
SCREW , Replaced By: N304017008027
406
N304017008027
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
410
N000934008010
NUT , Replaced By: N304032008006
512
A3511440044
FLANGE
518
A3551400053
THROTTLE HOUSING WITH THROTTLE VALVE
524
A3551420201
EXHAUST MANIFOLD
552
A3551420280
GASKET , Replaced By: A3551420880
552
A3551420880
GASKET FLANGE TO TURBOCHARGER
999
A3511400325
LEVER
