Поз.
Артикул
Описание

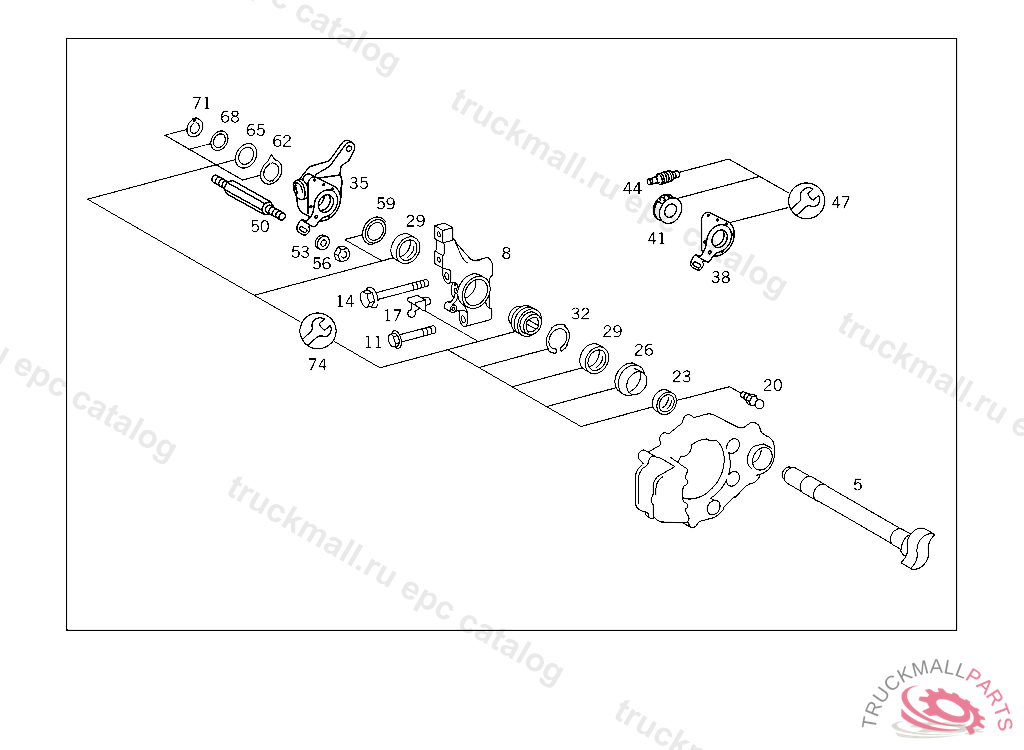

5
BRAKE CAMSHAFT , Replaced By: A3414231736
5
BRAKE CAMSHAFT , Replaced By: A3414231836
5
BRAKE CAMSHAFT ON BEARING BRACKET,LEFT
5
BRAKE CAMSHAFT ON BEARING BRACKET,RIGHT
8
BEARING BRACKET LEFT BRAKE SHAFT
8
BEARING BRACKET RIGHT BRAKE SHAFT
11
SCREW STEERING ARMS TO FRONT AXLE M 16X90
11
SCREW CROSS MEMBER TO SIDE MEMBERS
14
SCREW BEARING BRACKET TO REAR AXLE M 16X140
17
GREASE NIPPLE FOR SPRING
20
GREASE NIPPLE
23
SEAL RING , Replaced By: A0129973747
23
SEAL RING , Replaced By: A0129973647
23
SEAL RING OUTSIDE BEARING BRACKET
23
SEAL RING OUTSIDE BEARING BRACKET
23
SEAL RING OUTSIDE BEARING BRACKET
26
SEAL HOLDER , Replaced By: A9454230058
26
SEAL HOLDER BEARING BRACKET
29
SEAL RING , Replaced By: A0149972247
29
SEAL RING INSIDE BEARING BRACKET
29
SEAL RING INSIDE BEARING BRACKET
29
SEAL RING INSIDE BEARING BRACKET
29
SEAL RING , Replaced By: A0129974147
32
SNAP RING BEARING BRACKET TO AXLE
35
ADJUSTER AUTOMATIC,RIGHT
35
ADJUSTER AUTOMATIC,LEFT
35
ADJUSTER AUTOMATIC,RIGHT
35
ADJUSTER AUTOMATIC,LEFT
38
CONTROL UNIT
41
WORM GEAR"SAB"
44
WORM SCREW"SAB"
47
REPAIR KIT SLACK ADJUSTER "SAB"
47
REPAIR KIT , Replaced By: A0004200092
50
PIN SLACK ADJUSTER TO BEARING BRACKET
53
WASHER BRACKET TO CROSS MEMBER
56
NUT
59
SPACER WASHER , Replaced By: A3464230752
59
SPACER WASHER BEARING BRACKET TO AXLE
62
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
65
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
65
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
65
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
65
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
68
SPACER WASHER ADJUSTER
71
LOCK RING CLUTCH LEVER TO PEDAL SHAFT
74
REPAIR KIT BRAKE CAMSHAFT BEARING
