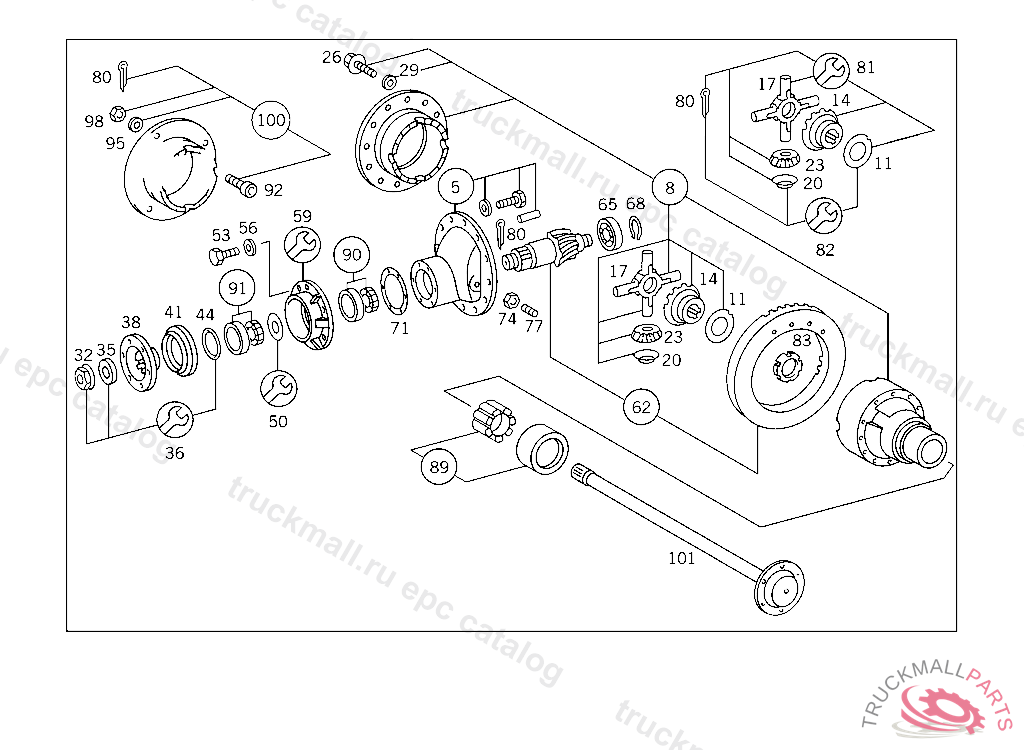

Поз.
Артикул
Описание
5
DIFFERENTIAL CASE
8
DIFFERENTIAL GEAR
11
THRUST WASHER SIDE GEAR
14
SIDE GEAR
17
DIFFERENTIAL SPIDER
20
WASHER DIFFERENTIAL PINION
23
DIFFERENTIAL PINION
26
SCREW
29
WASHER
32
NUT
35
WASHER FLANGE TO DRIVE PINION
36
FLANGE REPAIR KIT
38
FLANGE
38
FLANGE , Replaced By: A6843514015
38
FLANGE , Replaced By: A6843504045
41
PROTECTIVE PLATE
44
SEAL RING DRIVE PINION,FRONT
44
SEAL RING , NOT USED
44
SEAL RING , Replaced By: A6849974047
50
SPACER WASHER
50
SPACER WASHER
50
SPACER WASHER
50
SPACER WASHER
50
SPACER WASHER
50
SPACER WASHER
50
SPACER WASHER
50
REPAIR KIT DRIVE PINION BEARING
50
SPACER WASHER
50
SPACER WASHER
50
SPACER WASHER
53
SCREW
56
WASHER
59
AXLE SHAFT REPAIR KIT
62
RING GEAR AND PINION3.7:1
65
BALL BEARING DRIVE PINION,REAR
68
LOCK BALL BEARING TO BEVEL GEAR
71
SPACER WASHER0.003"
71
SPACER WASHER0.005"
74
NUT
77
SCREW
80
COTTER PIN DIFFERENTIAL GEAR ADJUSTMENT
81
REPAIR KIT DIFFERENTIAL GEAR
82
REPAIR KIT DIFFERENTIAL GEAR
83
SCREW COLLAR DIFFERENTIAL GEAR ADJUSTMENT
83
RING , Replaced By: A6843534225
89
OUTER RACE , Replaced By: A0029817518
89
ROLLER BEARING , Replaced By: A0029817518
89
ROLLER BEARING DIFFERENTIAL GEAR
90
ROLLER BEARING DRIVE PINION,ON PINION END
91
ROLLER BEARING DRIVE PINION,ON FLANGE END
92
SCREW
95
WASHER
98
NUT
100
SCREW RING GEAR TO DIFFERENTIAL CASE
101
SHAFT REAR AXLE SHAFT
