Поз.
Артикул
Описание

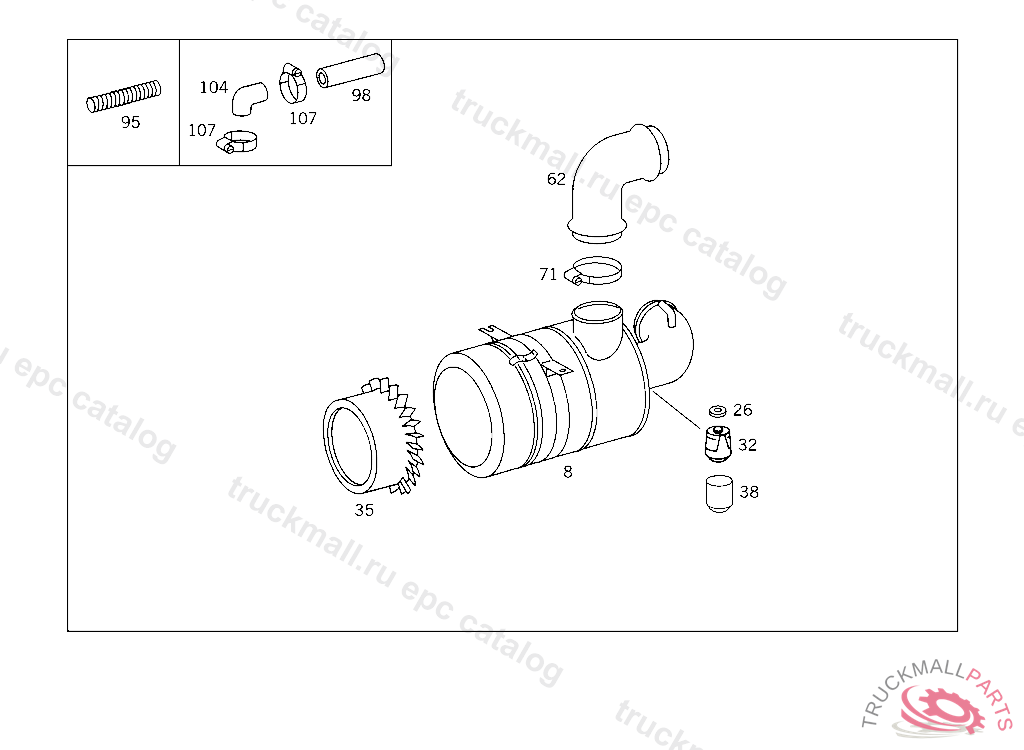

8
AIR CLEANER ,086793
26
WASHER FELT
32
MAINTENANCE INDICATOR ,086793
35
COVER
38
CAP FROM WARNING INDICATOR TO AIR CLEANER, FROM IDENT NO. 004703 ALSO INSTALLED ON 004316,004586,004634,004640,004650,004662,004673.
71
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
71
CLAMP , Replaced By: N000000000678
71
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
95
HOSE HOSE TO AIR INTAKE PIPE & TO AIR COMPRESSOR & ENGINE BREATHER,RESP., ORDER BY THE METER
98
HOSE FROM AIR CLEANER TO INTAKE PIPE,086793
98
HOSE , Replaced By: N900271035008
104
HOSE INTAKE MUFFLER TO AIR COMPRESSOR,086973
107
CLAMP LINE MOUNTING
107
CLAMP
107
CLAMP , Replaced By: N000000000670
107
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
107
CLAMP25-40X13 MM
999
AIR INTAKE PIPE FROM AIR CLEANER TO INTAKE PIPE,086793
999
AIR INTAKE CASE ,086793
