Поз.
Артикул
Описание

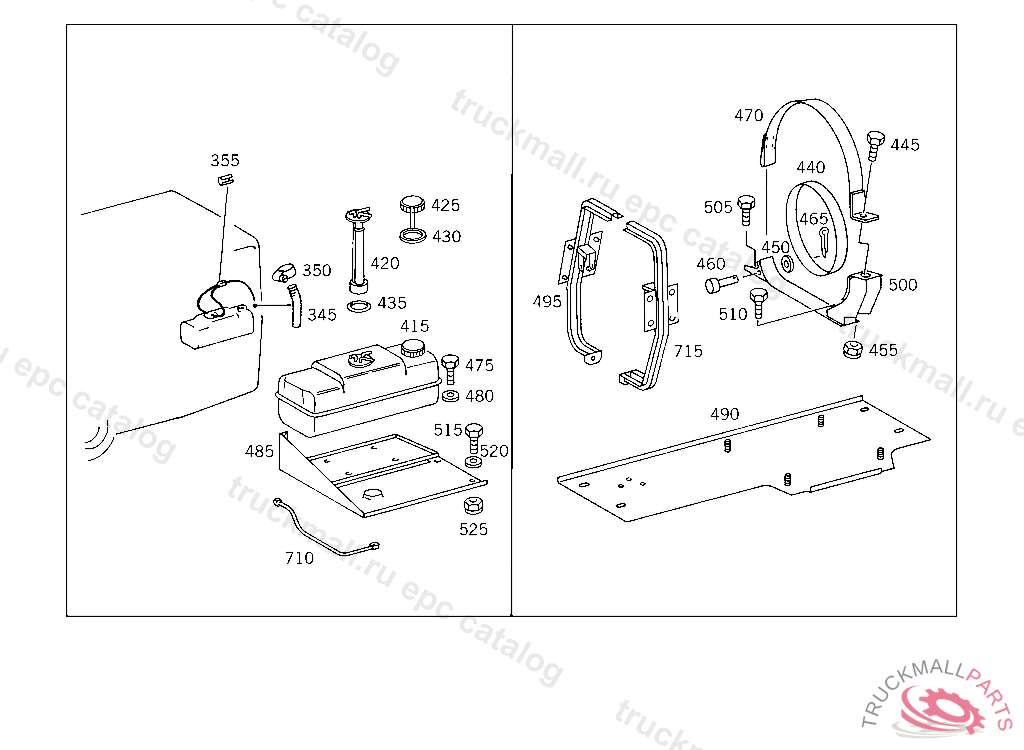

345
INSULATING HOSE HOSE LINE PROTECTION 13 MM, ORDER BY THE METER
350
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
350
CLAMP , Replaced By: N000000000665
350
CLAMP , Replaced By: N916017011001
355
CLIP HOSE TO CAB,4 238841
415
RESERVOIR PARTICLE FILTER
415
RESERVOIR ACTIVATING AGENT
415
RESERVOIR ACTIVATING AGENT
420
METERING CHAMBER WITH METERING PUMP 16 ML, TO 000 491 04 35
420
METERING CHAMBER WITH METERING PUMP 10 ML, TO 000 491 02 35, 03 35
425
COVER ACTIVATING AGENT RESERVOIR
430
FLANGE GASKET FILLER CAP
435
SEAL RING LINE CONNECTION
440
BASE PLATE STRAP TO BRACKET
445
SCREW STRAP TO BRACKET
450
WASHER EXHAUST MUFFLER TO STRAP
450
WASHER , Replaced By: N000125008443
455
NUT , Replaced By: N913004008001
460
PIN PAWL TO HANDLE
465
COTTER PIN BRACKET TO BATTERY CASE, 415 5 014668 416 5 000515 417 4 972023
470
STRAP STRAP TO BRACKET
475
SCREW PIPE CLAMP
475
SCREW , Replaced By: N304017008021
480
WASHER EXHAUST MUFFLER TO STRAP
480
WASHER , Replaced By: N000125008443
485
PLATE TANK TO CONSOLES
490
PLATE MOUNTING PLATE TO SUBSTRUCTURE MOUNTED CONSOLES,070537
490
PLATE MOUNTING PLATE TO SUBSTRUCTURE MOUNTED CONSOLES,070538
495
BRACKET MOUNTING PLATE TO SUBSTRUCTURE MOUNTED CONSOLES
500
BRACKET MOUNTING PLATE TO SUBSTRUCTURE MOUNTED CONSOLES
505
SCREW , Replaced By: N304017008034
505
SCREW BRACKET TO CROSS CONNECTION STRUT
510
SCREW , Replaced By: N304017008016
510
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
515
SCREW MOUNTING PLATE TO SUBSTRUCTURE MOUNTED CONSOLES M 8X20
520
WASHER EXHAUST MUFFLER TO STRAP
520
WASHER , Replaced By: N000125008443
525
NUT , Replaced By: N913004008001
710
OIL LINE FROM OIL TANK TO FILTER
715
BRACKET OIL TANK
999
FLEXIBLE METAL TUBE FRONT LEFT
999
FLEXIBLE METAL TUBE CONNECTOR
999
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
999
BOOT PRESSURE SWITCH SCREW-CONNECTION TO M 27X1, M 24X1
999
BRACKET AT BRACKET
999
BRACKET
999
BRACKET
999
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
PUMP (METERING PUMP)
999
VALVE PRESSURE RELIEF VALVE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
LINE
999
EXHAUST PIPE FRONT
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE REAR
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER ,076651
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
BRACKET EXHAUST PIPE TO SUPPORT
999
CONNECTOR
999
BRACKET REAR EXHAUST PIPE,079546
999
SUPPORT REAR EXHAUST MUFFLER
999
GROMMET LINE CONNECTION
999
CONSOLE EXHAUST MUFFLER
999
FITTING LINE CONNECTION
999
RUBBER BUFFER COVERING TO FRAME
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 27X1
999
ACTIVATING AGENT
999
ACTIVATING AGENT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009890250
999
CONNECTOR HEATER PLUG
999
AIR INTAKE PIPE , Replaced By: A3909970682
999
NOZZLE
999
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
999
VALVE
999
VALVE COOLING AIR
999
SEPARATOR (WATER SEPARATOR)
