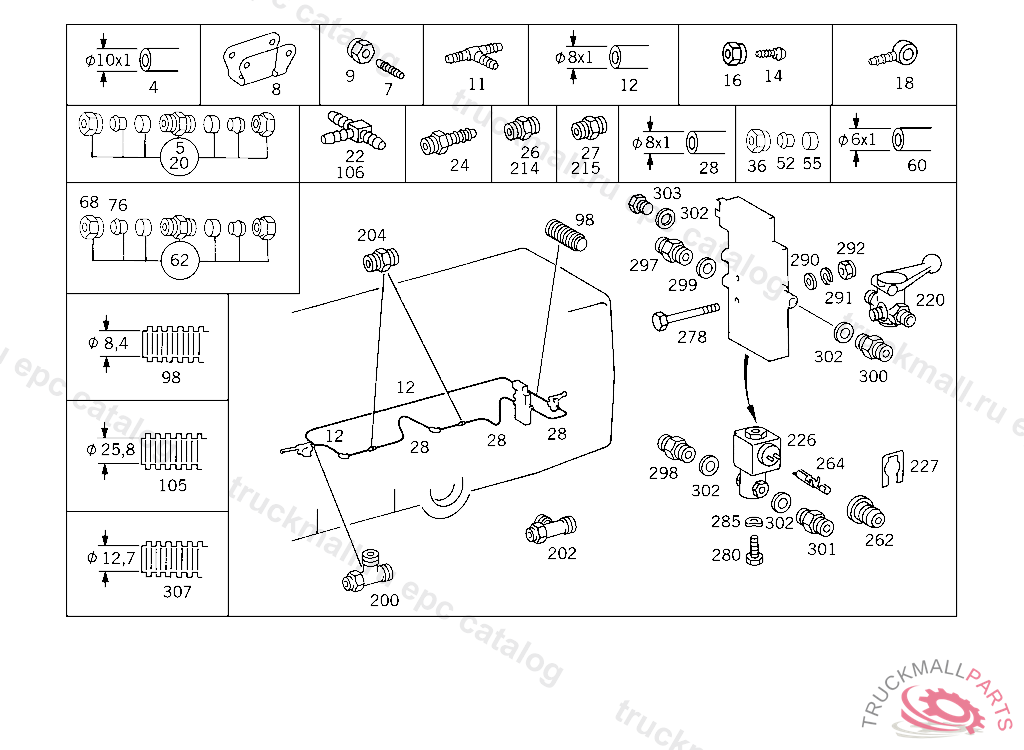

Поз.
Артикул
Описание
4
HOSETO 346 500 60 03, ORDER BY THE METER
5
FITTING (PARTS KIT),LINE RUPTURE
7
FITTING RETURN
8
BRACKET ENGINE SUSPENSION,VIBRATION DAMPER END
9
NUT. UNION NUT RETURN
11
T-FITTING FROM FUEL TANK TO WEBASTO HEATER
12
PLASTIC PIPE AERATION, ORDER BY THE METER
12
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
14
FITTING
14
FITTING RETURN LINE
16
UNION NUT RETURN
18
BANJO UNION HEATING CONNECTION,K 169122
20
FITTING (PARTS KIT),LINE RUPTURE
20
FITTING , Replaced By: A0029905971
22
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
24
FITTING
26
DOUBLE FITTING
26
FITTING LINE CONNECTION
27
FITTING
28
LINE CLUTCH 8 X 1, LENGTH AVAILABLE 3000 MM
36
UNION NUT LINE MOUNTING,5 9363655 812730
36
UNION NUT LINE CONNECTION
52
GLAND LINE CONNECTION
52
GLAND LINE MOUNTING,5 9363655 812730
55
SLEEVE LINE CONNECTION
60
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
60
PLASTIC PIPE RISING PIPE 4X6 MM
62
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
68
UNION NUT
76
GLAND , Replaced By: A0019901667
98
CORRUGATED HOSE , ORDER BY THE METER, Replaced By: A0005461630
105
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 26 MM
106
DISTRIBUTOR HOSE WIDTH, 6 MM
200
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
202
T-FITTING 3/2-WAY VALVE,CONNECTIONS: "30,50"
204
FITTING (PARTS KIT),LINE RUPTURE
214
FITTING LINE CONNECTION
215
FITTING
220
VALVE (BALL COCK),5 512267
226
VALVE 2/2-WAY VALVE
226
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004910681, +002A0015454826, +001A6555453428, +001A6555450150, +001A3805460135, +001A0009903654, +001A3879940042, +001N003861008005, +001N003901006011, +001N003901008009, +002N007603014102, +001N915017008100
227
LOCK INSULATING HOSE
262
BUSHING , Replaced By: A6555454028
262
PLUG , Replaced By: A6555454028
262
PLUG , Replaced By: A6555406981
262
PLUG SOCKET (PARTS KIT),HEAT RESISTANT,BIPOLAR SCREW CONNECTION,FOR INSULATING HOSE M 27X1
264
ROUND PIN BUSHING REAR "ENR" SOLENOID VALVE BRANCH-OFF 0.75-2.5MM2
278
SCREW SWITCH TO BEARING BRACKET M 4X35
278
SCREW FROM AIR CLEANER TO AIR INTAKE PIPE
280
SCREW SHUT-OFF VALVE TO BRACKET
285
SPRING WASHER ALTERNATOR CONNECTION D+
290
WASHER , Replaced By: N000125004319
290
WASHER BRACKET TO SUPPORT
291
LOCK WASHER T-FITTING TO BRACKET
292
NUT ATTACHMENT, MARKER LIGHT
292
NUT , Replaced By: N913002004001
297
SCREW-IN FITTING AIR DEHYDRATOR,CONNECTIONS: "4,22"
298
SCREW-IN FITTING 3/2-WAY VALVE,CONNECTIONS: "10,20,40"
299
SEALING RING. SEAL RING ENGINE BREATHING
300
FITTING SHUT-OFF VALVE,CONNECTION: "40"
301
FITTING COMPRESSED AIR LINE TO SOLENOID VALVE, CONNECTION: "A", TO 000 491 06 81
302
SEALING RING. SEAL RING ENGINE BREATHING
303
SCREW PLUG
307
INSULATING HOSE HOSE LINE PROTECTION 13 MM, ORDER BY THE METER
999
SEPARATOR (WATER SEPARATOR)
999
VALVE COOLING AIR
999
VALVE
999
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
999
NOZZLE
999
AIR INTAKE PIPE , Replaced By: A3909970682
999
CONNECTOR HEATER PLUG
999
ACTIVATING AGENT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009890250
999
ACTIVATING AGENT
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 27X1
999
RUBBER BUFFER COVERING TO FRAME
999
FITTING LINE CONNECTION
999
CONSOLE EXHAUST MUFFLER
999
GROMMET LINE CONNECTION
999
SUPPORT REAR EXHAUST MUFFLER
999
BRACKET REAR EXHAUST PIPE,079546
999
CONNECTOR
999
BRACKET EXHAUST PIPE TO SUPPORT
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER ,076651
999
EXHAUST MUFFLER
999
EXHAUST PIPE REAR
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE FRONT
999
LINE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
VALVE PRESSURE RELIEF VALVE
999
PUMP (METERING PUMP)
999
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET
999
BRACKET
999
BRACKET AT BRACKET
999
BOOT PRESSURE SWITCH SCREW-CONNECTION TO M 27X1, M 24X1
999
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
999
FLEXIBLE METAL TUBE CONNECTOR
999
FLEXIBLE METAL TUBE FRONT LEFT
