Главная
›
Mercedes
›
AXLE
›
H 4/22 D-10
›
746.891
›

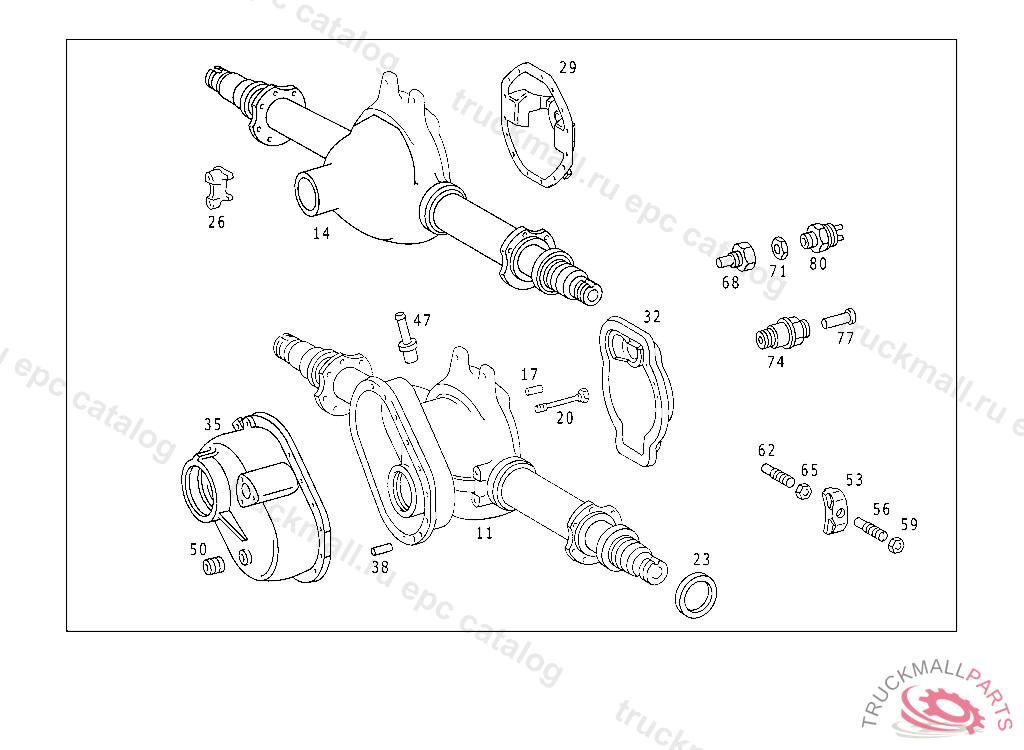

35 746.8 REAR AXLE
›
200 REAR AXLE,AXLE CASING,ATTACHMENT PARTS
Mercedes A3973560115 -
H 4/22 D-10 746.891
35 746.8 REAR AXLE - 200 REAR AXLE,AXLE CASING,ATTACHMENT PARTS
Поз.
Артикул
Описание
14
A3863503320
AXLE HOUSING WITH REAR AXLE TUBES
14
A3843501120
AXLE HOUSING WELDED VERSION
17
N000007006205
CYLINDRICAL PIN
20
A0049908304
SCREW BEARING COVER TO AXLE HOUSING M 16X95
23
A3973560115
THRUST RING AXLE TUBE TO AXLE HOUSING
26
A3834270441
BRACKET BEARING BRACKET
29
A3863510108
COVER AXLE HOUSING,REAR
47
A6883517065
FITTING BREATHER
50
A0009972632
SCREW PLUG HOUSING,BOTTOM,183596
53
A3853530149
SLIDE , NOT USED
56
A3833530276
SET SCREW RING GEAR CHECK
59
A3159900051
NUT SET SCREW
62
A3853370171
SCREW
65
N080705014003
NUT CYLINDER TO BRACKET
68
A6743530084
FITTING COMPRESSED AIR CONNECTION
71
N000934016002
NUT BRAKE ANCHOR PLATE TO REAR AXLE
74
A6743530071
SCREW SHIFTING CYLINDER
77
N308734004001
CYLINDRICAL PIN DIFFERENTIAL LOCK INDICATOR SWITCH
80
A6745450011
SWITCH DIFFERENTIAL LOCK INDICATOR SWITCH
