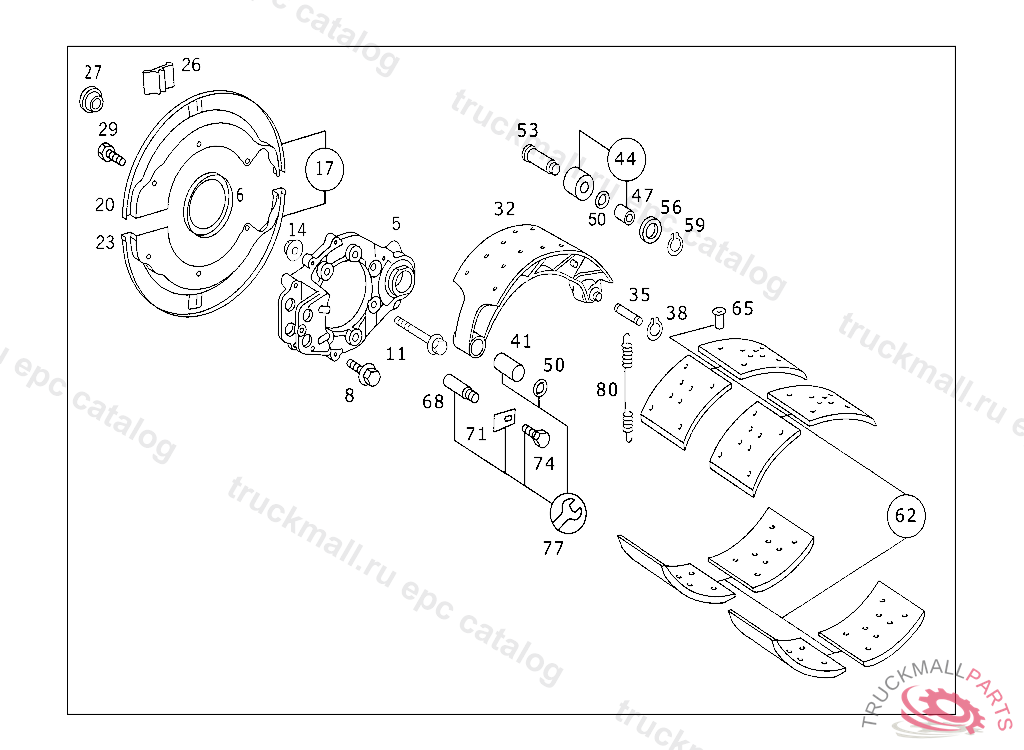

Поз.
Артикул
Описание
5
BRAKE ANCHOR (BRAKE ANCHOR)
8
HEXAGON HEAD BOLT TRAILER COUPLING TO FRONT CROSS MEMBER M16X1.5X45
8
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X60, IN CONJUNCTION WITH CODE: 8224
11
SCREW BRAKE ANCHOR TO AXLE HOUSING 70 MM
11
SCREW CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS
11
SCREW BEARING BRACKET TO BRAKE ANCHOR
11
SCREW BRAKE ANCHOR PLATE AND SUPPORTING SLEEVE TO JOINT HOUSING M 16X50
11
SCREW ,1 789238 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3469902504, +001A3859900150
11
SCREW FRONT WHEEL BRAKE TO STEERING KNUCKLE
11
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X50
11
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X60, IN CONJUNCTION WITH CODE: 8224
14
NUT WITH COLLAR
14
NUT BEARING BRACKET TO BRAKE ANCHOR
17
PROTECTIVE PLATE PARTS KIT
26
PLUG PROTECTIVE PLATE
29
SCREW , Replaced By: N304017010042
32
BRAKE SHOE LESS LINING, ONLY REPLACEABLE BY PAIRS
35
PIN RELEASE SPRING
38
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
41
BUSHING BRAKE SHOE BEARING
41
BUSHING ,669845
41
BUSHING ,669845
44
ROLLER , Replaced By: A3014200039, +002A0039971548
47
BUSHING
47
BUSHING
50
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
53
PIN BRAKE SHOE ROLLER
56
FITTED WASHER BRAKE SHOE ROLLER
59
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
62
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 19.0 MM
62
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 18.0 MM
62
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 17.0 MM
65
RIVET
65
RIVET
65
RIVET
68
PIN BRAKE SHOE TO BRAKE ANCHOR PLATE,078418
71
LOCK BRAKE SHOE TO BRAKE ANCHOR
74
SCREWM 10X20
74
SCREW BRAKE SHOE TO BRAKE ANCHOR M 10X16
77
REPAIR KIT BRAKE SHOE BEARING
80
SPRING (RELEASE SPRING)
