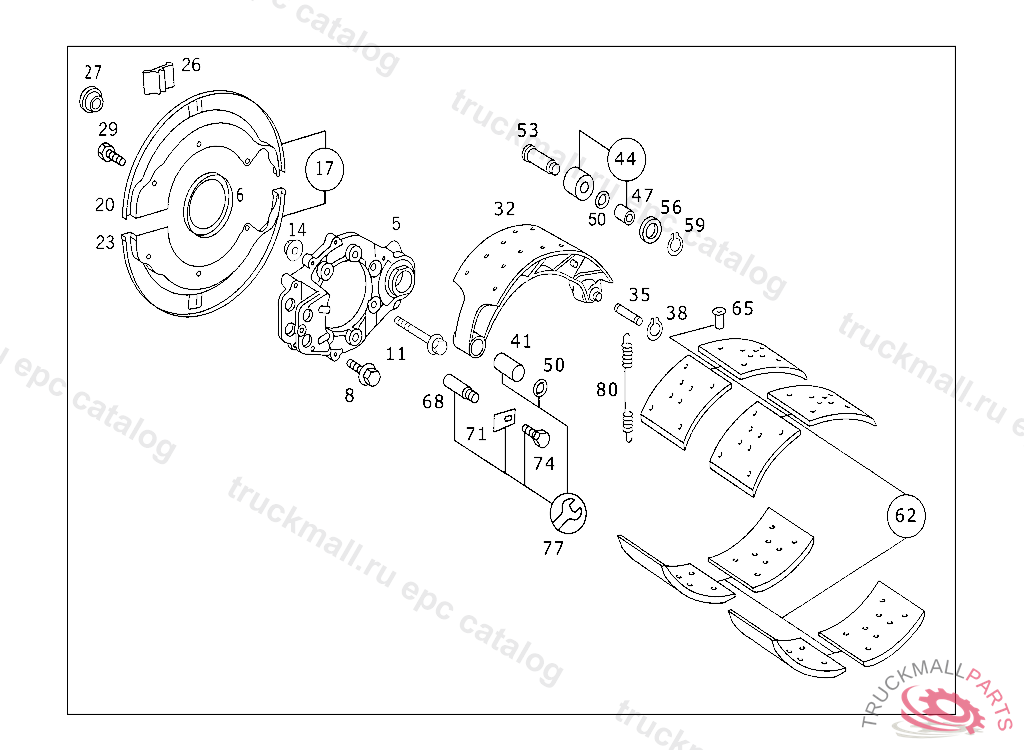

Поз.
Артикул
Описание
5
BRAKE CARRIER (BRAKE ANCHOR),919433
8
SCREW CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS
8
SCREW BEARING BRACKET TO BRAKE ANCHOR
14
NUT BEARING BRACKET TO BRAKE ANCHOR
14
NUT WITH COLLAR
20
PROTECTIVE COVER LEFT TOPABS - MOLA
20
PROTECTIVE PLATE RIGHT BOTTOMAIR
20
PROTECTIVE COVER RIGHT TOP ABS - MOLA
23
PROTECTIVE PLATE RIGHT BOTTOMAIR
23
PROTECTIVE PLATE LEFT TOP AND RIGHT BOTTOMMOLA
26
PLUG PROTECTIVE PLATE
29
SCREW , Replaced By: N304017010042
32
BRAKE SHOE CAST VERSION
32
BRAKE SHOE LESS LINING
35
PIN RELEASE SPRING
38
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
41
BUSHING ,669845
41
BUSHING ,669845
41
BUSHING BRAKE SHOE BEARING
44
ROLLER , Replaced By: A3014200039, +002A0039971548
47
BUSHING BRAKE SHOE ROLLER
47
BUSHING
47
BUSHINGTO 301 420 00 39
47
BUSHING
50
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
50
SEAL RING BRAKE SHOE ROLLER
53
PIN BRAKE SHOE ROLLER
56
FITTED WASHER BRAKE SHOE ROLLER
59
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
62
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 18.70 MM
62
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 19.7 MM
62
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 18.0 MM
62
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 19.0 MM
62
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 17.0 MM
62
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 17.7 MM
65
RIVET
65
PANHEAD RIVET BRAKE LINING TO BRAKE SHOE 18 MM
65
RIVET
65
RIVET
68
PIN BRAKE SHOE TO BRAKE ANCHOR PLATE,078418
71
LOCK BRAKE SHOE TO BRAKE ANCHOR
74
SCREW BRAKE SHOE TO BRAKE ANCHOR M 10X16
80
SPRING (RELEASE SPRING)
