Поз.
Артикул
Описание

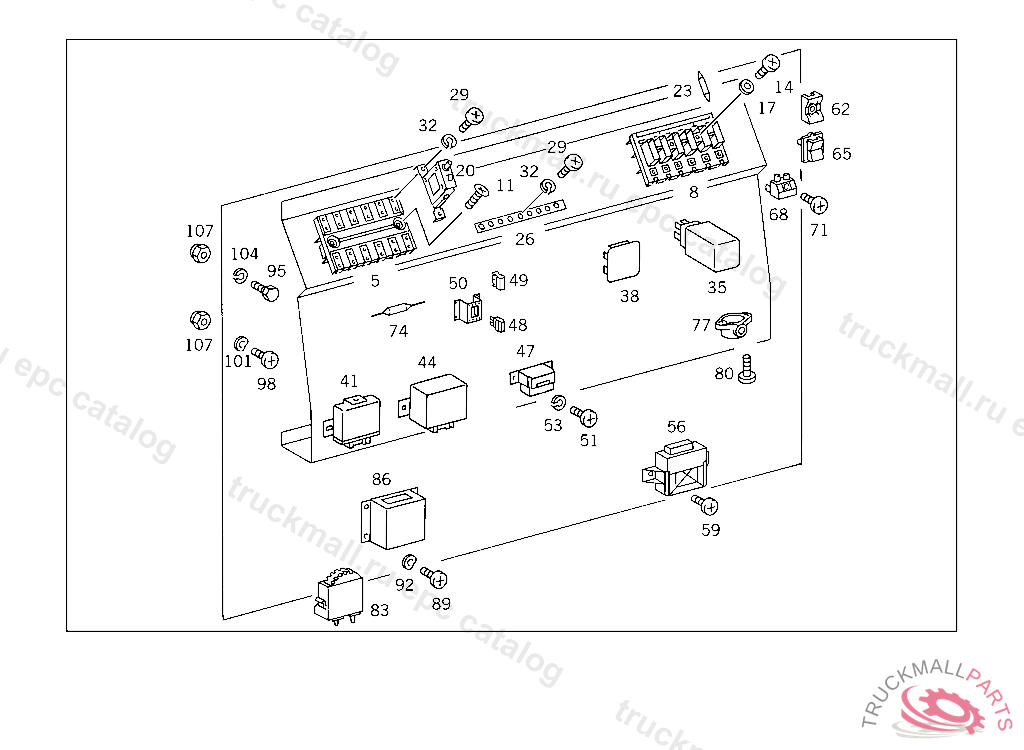

5
JUNCTION BOX
11
SCREW GUIDE TO STEERING COLUMN END,5 227753
20
FUSE"10A"
20
FUSE FUSE BOX
20
FUSE MAIN INSTRUMENT PANEL 2.5 A
20
FUSE"4A"
20
FUSE (OVERLOAD PROTECTOR) 16 A
20
FUSE TERMINAL 15 A
20
FUSE THERMO-MAGNETIC 8 A
26
CONTACT RAIL AUTOMATIC CUT-OUT CONNECTION
26
CONTACT RAIL , Replaced By: A6005450202
29
SCREW FUSE BOX TO SIDE MEMBER,5 097182
29
SCREW , Replaced By: N000000001933
32
LOCK WASHER T-FITTING TO BRACKET
35
RELAYA33
35
RELAY APPARATUS PLATE
35
RELAY , Replaced By: A0035459605
35
RELAYA32/K6
35
RELAY RELAY WITH ERASE DIODE 24V-10/20A,A32, K1, K3, K5
35
RELAYA33, Replaced By: A0009822123
35
RELAY OIL PRESSURE GAUGE ECONOMY SWITCHING
35
RELAY , Replaced By: A0035459605
38
COVER TO PLUG THE FREE HOLES USED FOR RELAY
41
SENDER UNIT HAZARD WARNING LIGHT 24 V/21 W,5 107260
41
SENDER UNIT HAZARD WARNING LIGHT 24 V
41
SENDER UNIT HAZARD WARNING LIGHT 24 V/21 W,5 107260
41
SENDER UNIT HAZARD WARNING LIGHT 24 V
44
SENDER UNIT , Replaced By: A0225452532
44
SENDER UNIT WIPER PULSE SENDER UNIT
44
SENDER UNIT WIPER PULSE SENDER UNIT
47
DIODE BOX RELAY TYP: AK 336.1
47
CASE. DIODE , Replaced By: A0005400024
48
DIODE ,K 182153
49
DIODE BOX'A61'
50
BRACKET DIODE CASE,079653
50
BRACKET ,079654
51
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
53
LOCK WASHER BRACKET TO STEERING COLUMN END
62
BRACKET , NOT USED
65
BRACKET LINE MOUNTING
77
PLUG SOCKET HAND LAMP
80
SCREW ELECTRIC CABLE TO FUSE BOX
83
SWITCH TEMPERATURE SWITCH 24 V
86
BRACKET TEMPERATURE SWITCH
86
BRACKET TEMPERATURE SWITCH
89
SCREW FUSE BOX TO SIDE MEMBER,5 097182
89
SCREW , Replaced By: N000000001933
92
SPRING WASHER ALTERNATOR CONNECTION D+
95
SCREW BRACKET TO CROSS CONNECTION STRUT
95
SCREW , Replaced By: N304017008034
101
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
101
SPRING WASHER , Replaced By: N000137008212
104
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
107
NUT , Replaced By: N913004008001
