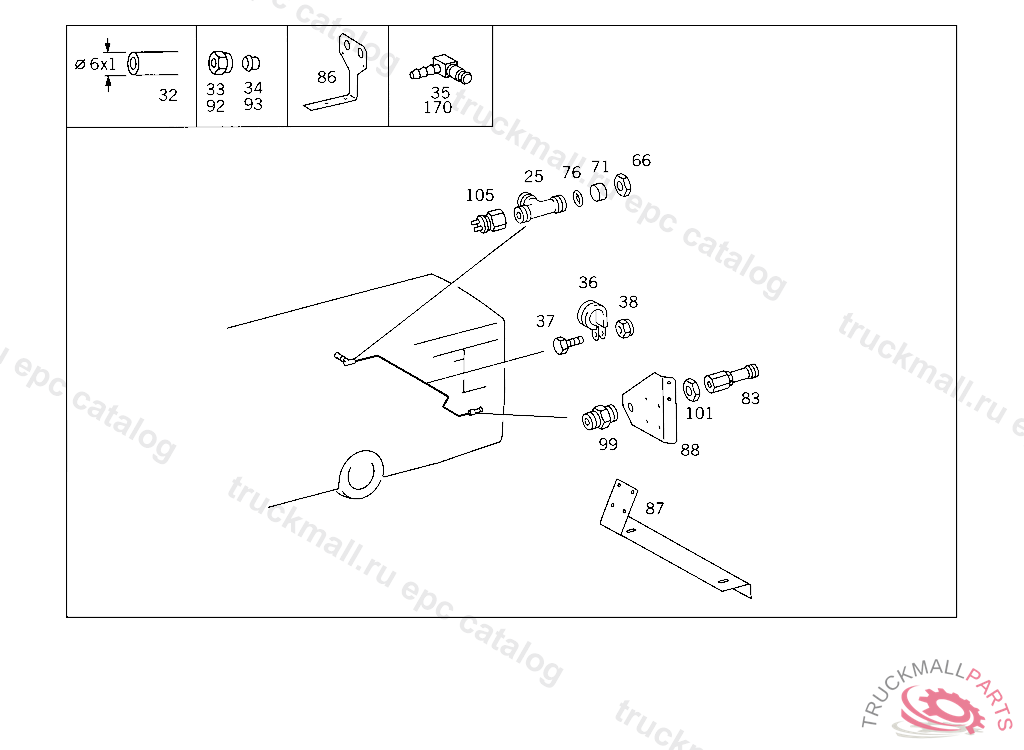

Поз.
Артикул
Описание
25
ELBOW FITTING. T-FITTING LINE CONNECTION TO ENGINE TO M16
25
T-FITTING , Replaced By: N074317000100
32
LINE EXHAUST BRAKE, LENGTH AVAILABLE: 3000 MM
33
UNION NUT
34
GLAND , Replaced By: A0019901667
35
ELBOW FITTINGTO M22 / 4MM / M12X1,5 / VOSS 230
36
CLAMP DELIVERY AND SUCTION LINES TO FRAME
36
CLAMP SUCTION LINE TO CROSS MEMBER
36
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
36
CLAMP LINE MOUNTING
37
SCREW CAB FLOOR COVERING M 6X25
38
NUT PUMP TO BRACKET
38
NUT , Replaced By: N913004006001
66
NUT CHECK VALVE TO AIR RESERVOIR
71
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
71
THRUST RING THROTTLE VALVE,CONNECTIONS: "1,2"
76
O-RING CHECK VALVE TO AIR RESERVOIR
83
TEST CONNECTION
83
TEST CONNECTION CHECK VALVE
83
TEST CONNECTION
86
BRACKET REFILLING CONNECTION
87
BRACKET TEST CONNECTION
88
BRACKET TEST CONNECTION
92
UNION NUT LINE CONNECTION
92
UNION NUT LINE CONNECTION, Replaced By: N000000006239
93
GLAND , Replaced By: A0019901967
93
SEAL CONE LINE CONNECTION
99
FITTING , Replaced By: A0009977172
99
FITTING HYDRAULIC LINE TO BRACKET,K 130132
99
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
101
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
101
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
101
NUT AT TEST CONNECTION BRACKET
105
GUIDE SIGN
105
UNIT IDENTIFICATION PLATE
170
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
999
FITTING QUICK-RELEASE VALVE TO BRACKET
999
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236
999
SEAL RING
