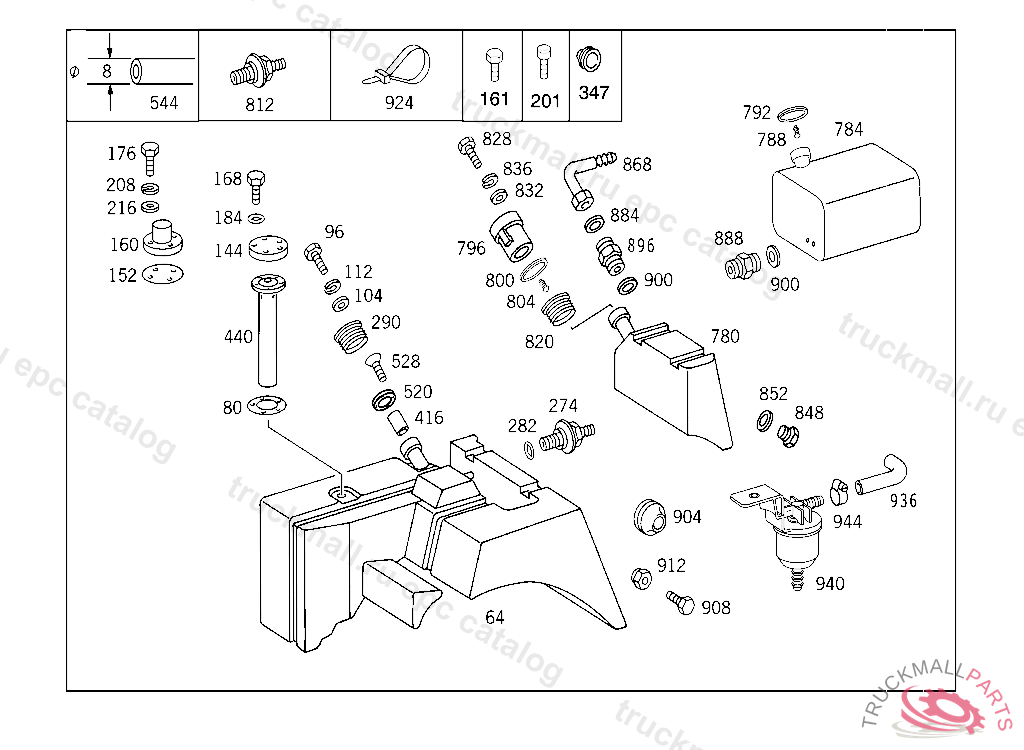

Поз.
Артикул
Описание
64
FUEL TANK LESS SENDER UNIT 190 L,093523
64
FUEL TANK LESS SENDER UNIT 393 L
64
FUEL TANK LESS SENDER UNIT 270 L,075828
64
FUEL TANK LESS SENDER UNIT 190L,093522
80
GASKET SENDER UNIT AND COVER TO FUEL TANK
96
SCREW COVER PLATE TO COVER PLATE M 6 X 12
104
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
112
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
144
COVER FUEL TANK
152
COVER AT TANK
160
FLANGE AT TANK
161
SCREW BOOT TO BATTERY CASE
168
SCREW LEVER TO SHAFT
168
SCREW
176
SCREW COVER PLATE TO COVER PLATE M 6 X 12
176
SCREW BOOT TO BATTERY CASE
184
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
201
SCREW
208
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
216
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
274
CONNECTOR ,075828
282
SEAL RING ,075828
290
BOOT ,075828
347
CAP FUEL TANK
416
HOSE FILLER NECK
440
SENDER UNIT FUEL GAUGE
440
SENDER UNIT FUEL GAUGE
520
FLANGE FUEL TANK
528
SCREW
528
SCREW FUEL TANK M 4X20
544
PLASTIC PIPE AERATION, ORDER BY THE METER
544
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
780
FUEL TANK (FUEL-OIL TANK),075828
784
FUEL TANK (FUEL-OIL TANK)
784
FUEL TANK (FUEL-OIL TANK)
788
VALVE FUEL TANK
792
GASKET
792
GASKET
796
FILLER CAP FUEL-OIL TANK,075828
800
GASKET
800
GASKET
804
VALVE FUEL TANK
812
CONNECTOR ,075828
820
BOOT ,075828
828
SCREW COVER PLATE TO COVER PLATE M 6 X 12
828
SCREW , Replaced By: N304017006018
832
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
836
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
848
SCREW PLUG WATER DRAIN
852
GASKET EXTRACTION OPENING FOR FUEL OIL,075828
868
ELBOW FITTING RETURN
884
GASKET EXTRACTION OPENING FOR FUEL OIL,075828
888
SCREW FITTING , Replaced By: A4039971172
888
DOUBLE FITTING
896
FITTING WATER SEPARATOR
900
SEAL RINGTO 000 553 03 05,000 553 18 05,
904
GROMMET BREATHER LINE
908
SCREW , Replaced By: N007985005157
908
SCREW COVER PLATE TO BRACKET
908
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
912
NUT TWO-WAY VALVE TO BRACKET
924
LOOM TIE LINE MOUNTING
936
HOSE BLEEDING,093523 ORDER BY THE METER
940
VALVE DE-AERATION,618 115 13 091995, 618 215 11 092223
944
CLAMP BLEEDING,093523
944
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
GASKETTO 612 470 22 01
999
INSULATION AERATION/DEAERATION
999
STRAP
999
FUEL TANK LESS SENDER UNIT 76 L
999
STRAP
999
FUEL TANK
999
FILLER NECK
999
FUEL TANK
999
FUEL TANK265 L
999
FUEL TANK (FUEL-OIL TANK)
999
FUEL TANK
999
FUEL TANK LESS SENDER UNIT 114 L
999
FUEL TANK
999
FUEL TANK220 L,050329
999
BRACKET CABLE HARNESS THRU RIGHT SIDE MEMBER, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET CABLE HARNESS THRU RIGHT SIDE MEMBER, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
HOSE CONNECTION OF FUEL TANKS
999
HOSE FROM FUEL TANK TO ADDITIONAL TANK
999
HOSE FROM FUEL TANK TO FUEL TANK
999
HOSE
999
FUEL TANK
999
FUEL TANK
999
LINE FROM FUEL TANK TO FUEL TANK
999
SENDER UNITTO 612 470 32 01
