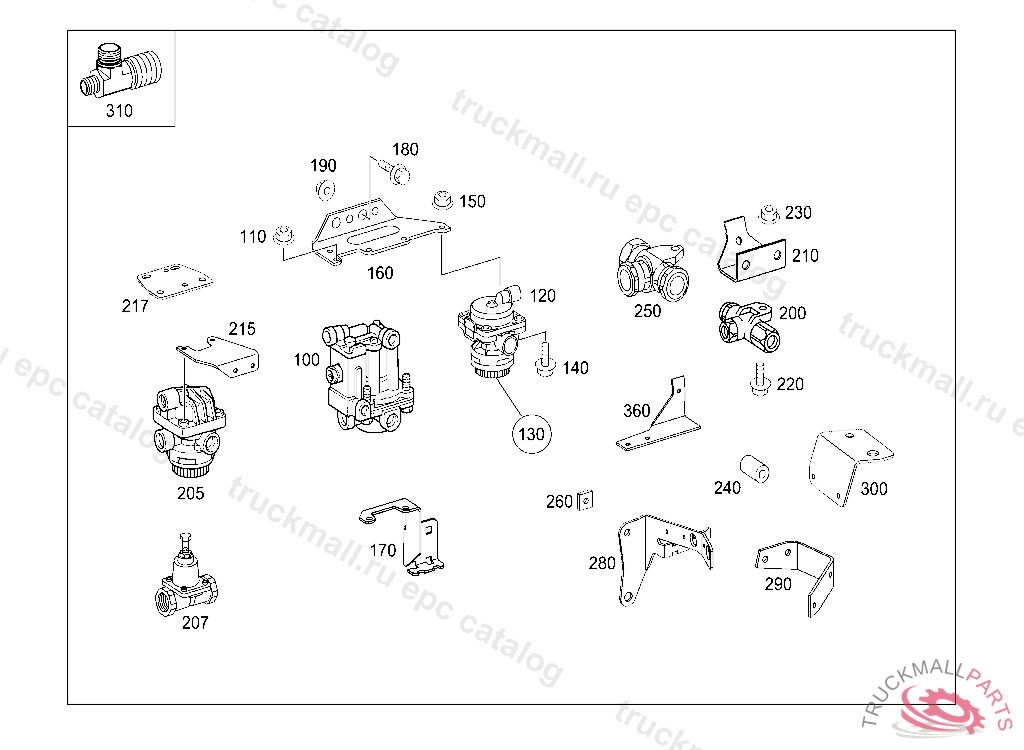

Поз.
Артикул
Описание
100
REDUNDANCY VALVEEPB
110
NUT HORN TO BRACKET M8
120
PRESSURE CONTROL VALVE. RELAY VALVE PARKING BRAKE WABCO, REPAIR IMPOSSIBLE
130
MUFFLERBOSCH, TO 004 429 80 44
140
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
150
NUT HORN TO BRACKET M8
160
BRACKET VALVE BLOCK
170
BRACKET AT RELAY VALVE
180
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
190
NUT HORN TO BRACKET M8
200
SHUTTLE VALVE. VALVE (SHUTTLE VALVE)
205
VALVE (RELAY VALVE)
207
VALVE (OVERFLOW VALVE)
207
VALVE
210
BRACKET SHUTTLE VALVE
215
BRACKET RELAY VALVE
217
BRACKET RELAY VALVE 4MM
220
SCREW SHIFT LEVER TO BRACKET M8X30
230
NUT HORN TO BRACKET M8
240
SPACER TUBE MOUNTING PARTS, Replaced By: A4182420050
240
SPACER TUBE , Replaced By: A4423110750
240
BUSHING MOUNTING PARTS 20/11X10 MM
240
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
240
BUSHING MOUNTING PARTS 50/17X49 MM, TO BE ADAPTED DURING ASSEMBLY
240
BUSHING RIGHT FRONT 43.3X40X17MM, TO BE ADAPTED DURING ASSEMBLY
250
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
260
SHIM MOUNTING PARTS 7MM
280
BRACKET FRONT RIGHT
280
BRACKET FRONT LEFT
280
BRACKET FRONT RIGHT,NO.1457IIIII I
280
BRACKET FRONT LEFT,NO.1457IIIII I
290
BRACKET FRONT RIGHT
290
BRACKET FRONT LEFT
300
BRACKET MOUNTING PARTS,NO.1457IIIII I
310
T-FITTING FRONT AXLE,CONNECTION: "20"
360
BRACKET SHUTTLE VALVE
