Поз.
Артикул
Описание

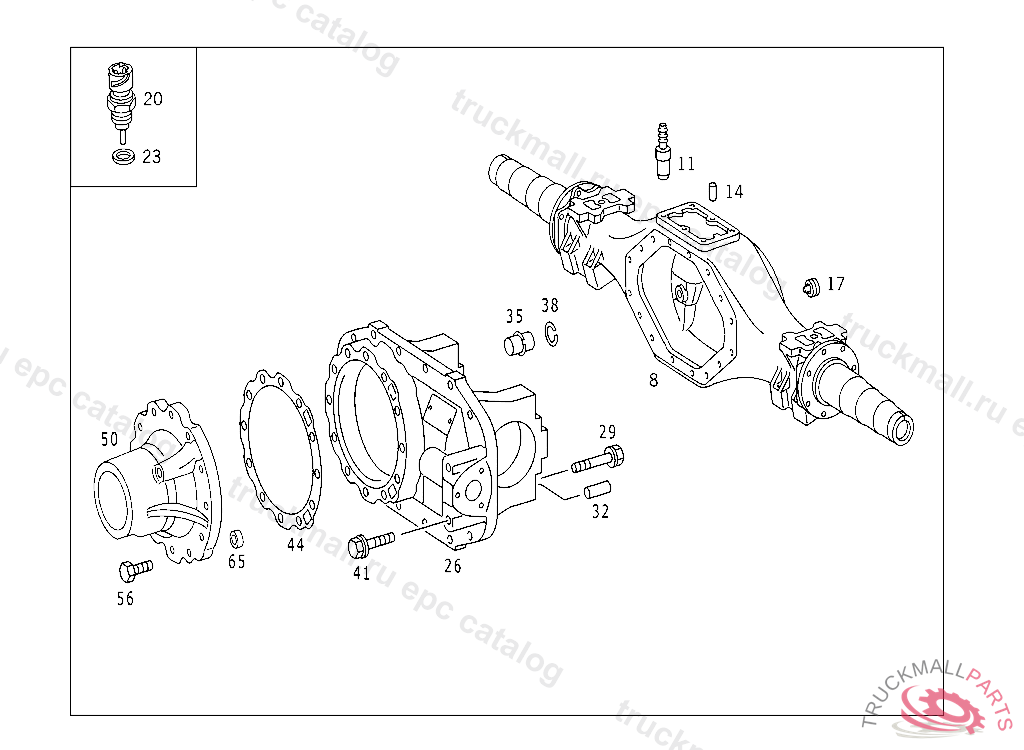

8
AXLE CASING CAST VERSION
11
FITTING AXLE BREATHING
11
FITTING BLEEDING
17
SCREW PLUG BELL HOUSING
20
SENDER UNIT TEMPERATURE SENDER UNIT B47
23
SEAL RING TEMPERATURE GAUGE SENDER UNIT
26
AXLE HOUSING WITH BEARING CAP
29
SCREW BEARING COVER TO AXLE HOUSING
32
CYLINDRICAL PIN
32
CYLINDRICAL PIN , Replaced By: N000007008101
35
PIN REAR AXLE HOUSING TO AXLE CASING
38
SNAP RING
41
SCREW REAR AXLE HOUSING TO AXLE CASING M12 X 35
41
SCREW BRACKET TO BRACKET
41
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3559901704
44
SPACER WASHER PINION HOUSING,AS REQUIRED 0.20 MM
44
SPACER WASHER PINION HOUSING,AS REQUIRED 1.50 MM
44
SPACER WASHER PINION HOUSING,AS REQUIRED 1.00 MM, NOT USED
44
SPACER WASHER PINION HOUSING,AS REQUIRED 0.10 MM, NOT USED
44
SPACER WASHER DIFFERENTIAL HOUSING,AS REQUIRED 0.50 MM
44
SPACER WASHER PINION HOUSING,AS REQUIRED 0.15 MM
44
SPACER WASHER PINION HOUSING,AS REQUIRED 0.35 MM, NOT USED
50
HOUSING. OIL COLLECTOR (PINION HOUSING)
56
SCREW APPARATUS SUPPORT TO FRAME
65
SEAL RING PINION HOUSING TO AXLE HOUSING
