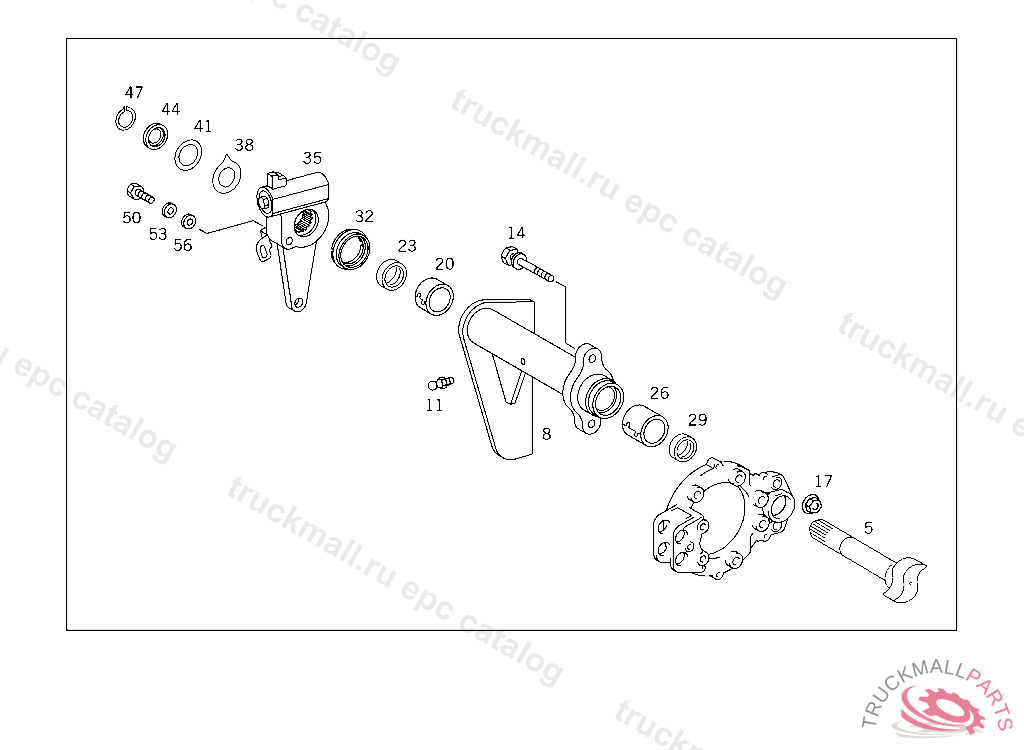

Поз.
Артикул
Описание
5
BRAKE CAMSHAFT ON BEARING BRACKET,RIGHT
5
BRAKE CAMSHAFT ON BEARING BRACKET,LEFT
8
BEARING BRACKET RIGHT BRAKE CAMSHAFT
8
BEARING BRACKET LEFT BRAKE CAMSHAFT
11
GREASE NIPPLE
14
SCREW CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS
17
NUT BEARING BRACKET TO BRAKE ANCHOR
20
BUSHING BRAKE CAMSHAFT BEARING,INSIDE
20
BUSHING OUTSIDE
23
SEAL RING INSIDE BEARING BRACKET
23
SEAL RING INSIDE BEARING BRACKET
23
SEAL RING INSIDE BEARING BRACKET
26
BUSHING BRAKE CAMSHAFT BEARING,OUTSIDE
26
BUSHING INSIDE
29
SEAL RING OUTSIDE BEARING BRACKET
29
SEAL RING OUTSIDE BEARING BRACKET
29
SEAL RING OUTSIDE BEARING BRACKET
32
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
35
ADJUSTER AUTOMATIC,LEFT AND RIGHT HALDEX
38
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
41
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
41
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
41
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
41
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
44
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
44
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT 6.00 MM
44
SPACER WASHER ADJUSTER TO BEARING BRACKET 5.00 MM
44
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT 7.50 MM
47
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
50
HEXAGON HEAD BOLT CONTROL ARM, LINKAGE ADJUSTER ON BEARING BRACKET M8X12
53
WASHER EXHAUST MUFFLER TO STRAP
56
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
56
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
