Поз.
Артикул
Описание
6

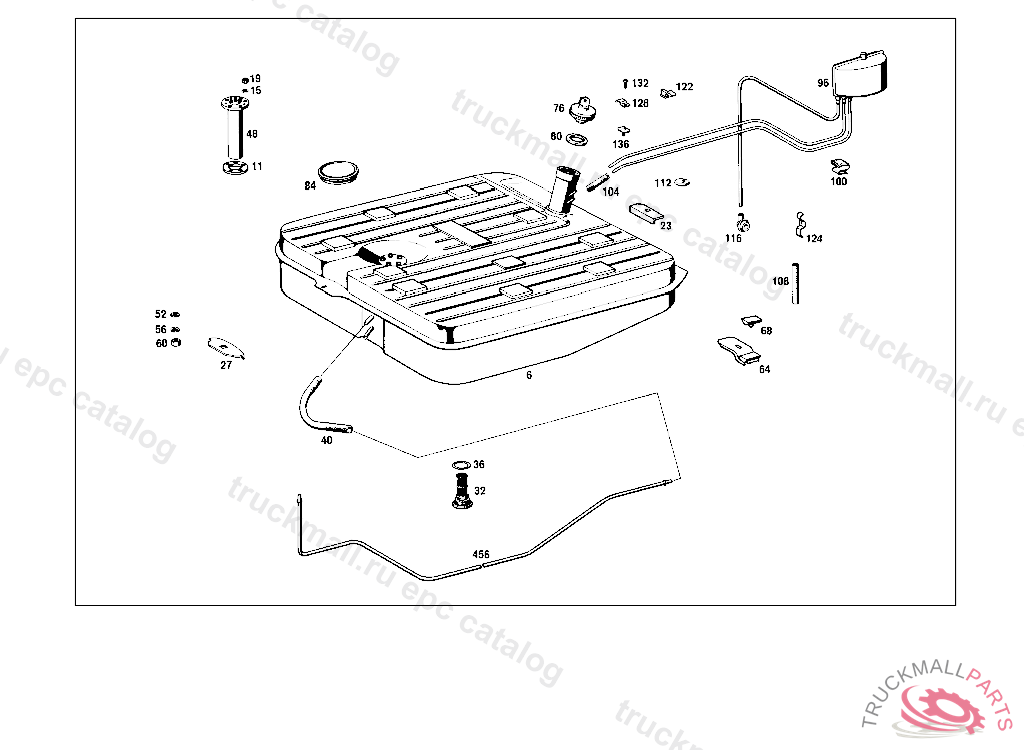

FUEL TANK 82 L.
11
GASKET
15
SPRING WASHER ALTERNATOR CONNECTION D+
19
NUT TACHOGRAPH TO BRACKET
23
REINFORCEMENT
27
REINFORCEMENT
32
FUEL STRAINER
36
SEAL RING
40
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
48
GAUGE SENDER UNIT
52
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
56
LOCK WASHER TAIL LAMP TO BRACKET
60
NUT , Replaced By: N304032008006
60
NUT
64
BRACKET
68
RUBBER BUFFER
76
FILLER CAP MAKE YMOS YMOS, STATE LOCK NUMBER WHEN ORDERING UP TO CHASSIS:012 058944,014 045196,015 002591
80
GASKET
84
LOCKING CAP
96
TANK
100
CLIP
104
HOSE4.5X10X900MM
108
HOSE , ORDER BY THE METER
112
GROMMET
116
BOOT
122
CLIP
124
CLAMP , 012 FROM CHASSIS 058521, 014 FROM CHASSIS 045548, 015 FROM CHASSIS 002627
128
CLAMP
132
SHEET METAL SCREW , Replaced By: N000000002062
132
SCREW
136
SCREW VENT PIPES TO BODY, 012 FROM CHASSIS 058521, 014 FROM CHASSIS 045548 016 UP TO CHASSIS 035213 EXCEPT FOR, SEE FOOTNOTE 29, 018,019 UP TO CHASSIS 036080 EXCEPT FOR, SEE FOOTNOTE 30
456
LINE
999
FILLER CAP , Replaced By: A0004717130
999
SPRING , 018,10/50,12/52 UP TO CHASSIS 030631, 20/60,22/62 UP TO CHASSIS 028985
999
CARBON BRUSH SET2 PIECES, 018 UP TO CHASSIS 030631, 019 UP TO CHASSIS 030488
999
RUBBER SECTION20 MM, ORDER BY THE METER
999
NUT RETAINER ,123 415950
999
LOCK CABLE TO FUEL PUMP
999
FUEL PUMP , Replaced By: A0010915201, +001A1084700281, +003A1269880011, +001N000127005203, +003N000127006203, +003N000933006016, +003N000934005004
999
HOSE CLAMP HOSE FASTENING 9/13MM
999
CLAMP , 014 UP TO CHASSIS 043329, 015 UP TO CHASSIS 002569
999
CLAMP , 014 UP TO CHASSIS 043329, 015 UP TO CHASSIS 002569
999
PROTECTIVE TUBE FUEL PUMP CABLE HARNESS THRU REAR CROSS MEMBER
999
CLAMP FORKED SUPPORT,TOP
999
HOSE , Replaced By: A1149971882
999
CLAMP
999
TANK , 012 UP TO CHASSIS 058520, 014 UP TO CHASSIS 045547, 015 UP TO CHASSIS 002626, Replaced By: A1154710268, +001A0009903533, +001A1109950332, +001N000127004203, +001N000934004006, +001N007981004240, +001N072571002015
999
TANK , 012 UP TO CHASSIS 058520, 014 UP TO CHASSIS 045547, Replaced By: A1154710268, +001A0009903533, +001A1109950332, +001N000127004203, +001N000934004000, +001N007981004240, +001N072571002015
999
DAMPING STRIP (VENT LINE) FROM ACTIVATED CHARCOAL FILTER TO BOOT,B 858834
999
CLIP , 012 UP TO CHASSIS 058520, 014 UP TO CHASSIS 045547, 015 UP TO CHASSIS 002626
999
SEAL RING
999
FILLER CAP , WITH LOCK UNDEFINED
999
GROMMET
999
CLAMP , 000,001,010 FROM CHASSIS 130558, 100,101,110 FROM CHASSIS 225648
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
SCREW COVER PLATE TO BRACKET
999
NUT AIR INTAKE PIPE TO AIR INTAKE PIPE,937184
999
SHEET METAL SCREW BRACKET TO CAB FLOOR, EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 5 180559
999
SHEET METAL SCREW VALVE TO WINDOW SILL
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
HOSE30 MM, ORDER BY THE METER
999
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
999
SCREW PUMP TO BRACKET
999
CLAMP HOSE & VENT PIPE TO RESERVOIR, 012 UP TO CHASSIS 058520, 014 UP TO CHASSIS 045547
999
CLAMP
999
CLAMP
999
CLAMP , 018 FROM CHASSIS 030632, 019 FROM CHASSIS 030489
999
CLAMP
999
CLAMP
999
CLAMP
999
LOCK WASHER T-FITTING TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
