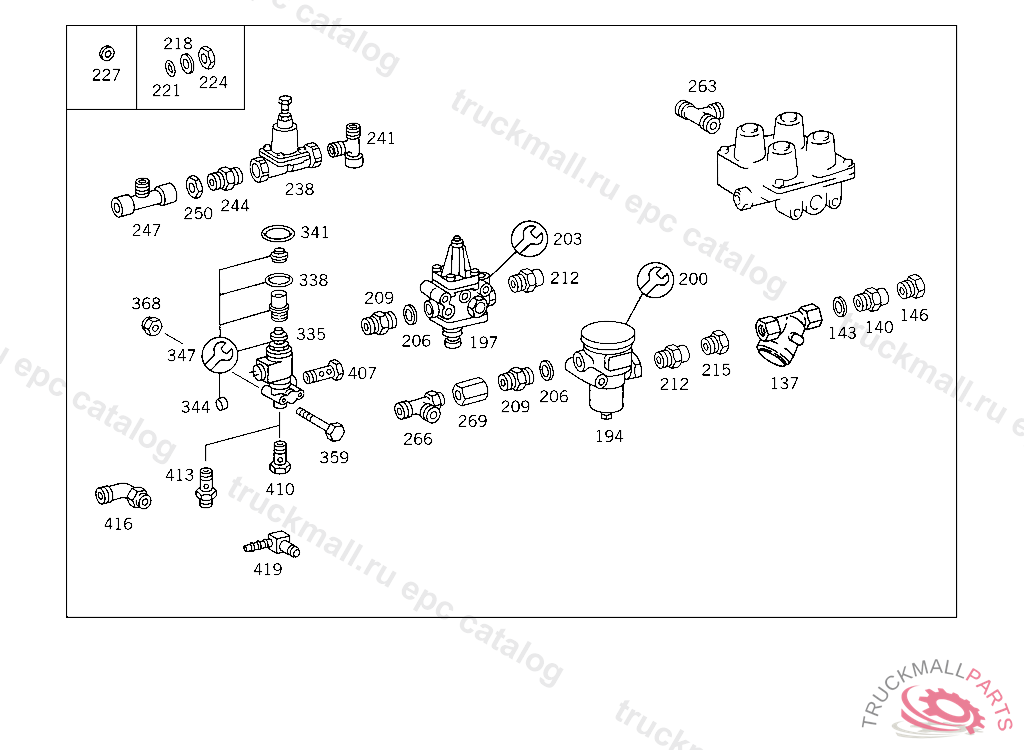

Поз.
Артикул
Описание
137
AIR CLEANER COMPRESSED AIR LINE
140
FITTING LINE CONNECTION
143
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
146
SCREW. UNION SCREW LINE CONNECTION
194
VALVE PRESSURE RELIEF
197
VALVE (PRESSURE LIMIT VALVE) WABCO
200
REPAIR KIT PRESSURE RELIEF VALVE
203
REPAIR KIT PRESSURE REGULATOR WABCO
206
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
206
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
209
FITTING TWO-WAY VALVE
209
FITTING DELIVERY LINE TO PUMP
209
FITTING PRESSURE LIMIT VALVE
212
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
215
SCREW. UNION SCREW LINE CONNECTION
218
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
221
O-RING CHECK VALVE TO AIR RESERVOIR
224
NUT CHECK VALVE TO AIR RESERVOIR
227
WASHER
238
VALVE (OVERFLOW VALVE) WABCO
241
TANK RECESS. T-FITTING LINE CONNECTION
244
FITTING LINE CONNECTION
247
T-FITTING LINE CONNECTION
250
NUT CHECK VALVE TO AIR RESERVOIR
263
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "10"
266
T-FITTING BETWEEN THE LINES
266
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
269
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
335
VALVE , Replaced By: A0049975736
335
VALVE SOLENOID VALVE,5 450429 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
335
VALVE (3/2-WAY SOLENOID VALVE) EKS
338
SEAL RINGWABCO
341
SEAL RING24X2 MM
344
SEAL RING VALVE TO VALVE
347
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
359
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
359
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
359
SCREW VALVE TO BRACKET M 8X55
359
SCREW , Replaced By: N304017008043
359
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
368
NUT , Replaced By: N913004008001
407
HOLLOW SCREW LINE CONNECTION
410
HOLLOW SCREW HEATING CONNECTION
413
HOLLOW SCREW FITTING DISTRIBUTOR,CONNECTION: "5"
416
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
419
ELBOW FITTING , Replaced By: A0049905371
419
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
999
RESERVOIR COMPRESSED AIR,5 295503
999
ELBOW FITTING PRESSURE REGULATOR,CONNECTION: "21",051560
999
RESERVOIR , Replaced By: A0034322401
