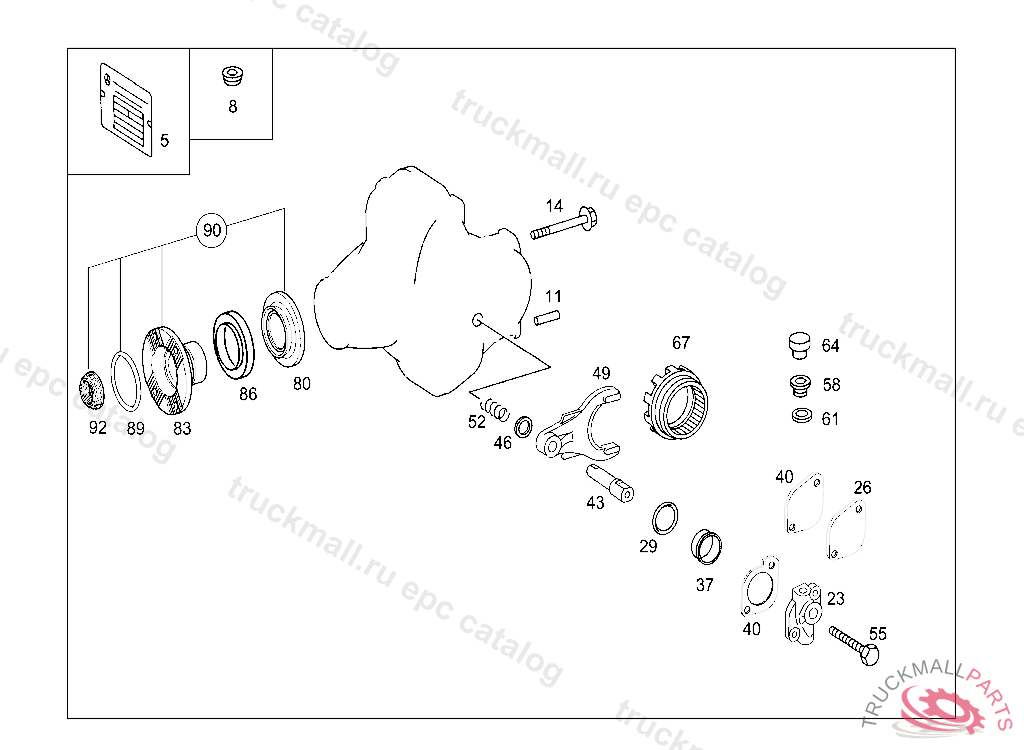

Поз.
Артикул
Описание
5
UNIT IDENTIFICATION PLATE
5
UNIT IDENTIFICATION PLATE
8
SCREW PLUG
11
CYLINDRICAL PIN INTERMEDIATE GEAR
14
SCREW BEARING COVER TO AXLE HOUSING
23
COVER DIFFERENTIAL LOCK,N 272757M 007001
26
COVER DIFFERENTIAL LOCK
29
SEAL RING OPERATING CYLINDER DIFFERENTIAL LOCK
37
BUSHING ACTUATING CYLINDER,DIFFERENTIAL LOCK, BRASS VERSION,M203592
37
BUSHING ACTUATING CYLINDER,DIFFERENTIAL LOCK, BRASS VERSION,M 067682
40
GASKET ,N 272757M 007001
40
GASKET
43
SHAFT SHIFTING ROD,M 203591
46
THRUST WASHER OPERATING CYLINDER DIFFERENTIAL LOCK 1MM
49
SHIFTING FORK DIFFERENTIAL LOCK
49
SHIFTING FORK DIFFERENTIAL LOCK, Replaced By: A9463530034
52
PRESSURE SPRING OPERATING CYLINDER DIFFERENTIAL LOCK,M365498
52
SPRING OPERATING CYLINDER DIFFERENTIAL LOCK,M 203591
55
HEXALOBULAR BOLT PLATE TO TRANSMISSION CASE M 10X25,TO A 970 260 02 46,04 46
58
SCREW PLUG, FILLING HOUSING,BOTTOM M18X1.5
61
SEAL RING ON OIL PUMP HOUSING
64
PLUG TO PLUG HYDRAULIC LINE
67
FOLLOWER DIFFERENTIAL LOCK, Replaced By: A9603530036
67
FOLLOWER DIFFERENTIAL LOCK
67
SLIDING SLEEVE DIFFERENTIAL LOCK
80
SEAL RING
83
FLANGE STAGGERED TEETH 180 MM, SEE FIGURES: 71 AND 73
86
PROTECTIVE PLATE
89
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
90
FLANGE PARTS KIT, SEE FIGURES: 71 AND 73 NOT FOR FLANGE INSIDE DIAMETER D65.4 MMM 132019
90
FLANGE PARTS KIT
92
NUT FLANGE TO REAR AXLE SHAFT
