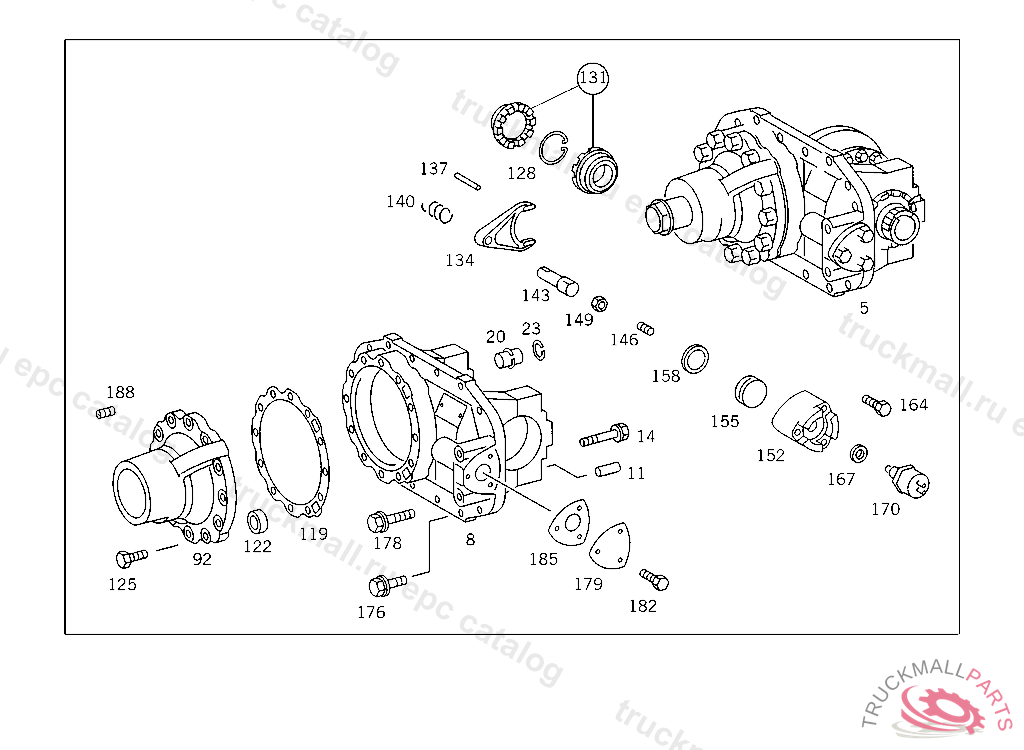

Поз.
Артикул
Описание
5
DIFFERENTIAL GEAR LESS FLANGE 27:18
8
AXLE HOUSING WITH BEARING CAP
11
CYLINDRICAL PIN , Replaced By: N000007008101
14
SCREW BEARING COVER TO AXLE HOUSING
20
PIN REAR AXLE HOUSING TO AXLE CASING
23
SNAP RING
92
HOUSING. OIL COLLECTOR (PINION HOUSING)
119
SPACER WASHER PINION HOUSING,AS REQUIRED 0.15 MM
119
SPACER WASHER PINION HOUSING,AS REQUIRED 0.10 MM, NOT USED
119
SPACER WASHER PINION HOUSING,AS REQUIRED 1.00 MM, NOT USED
119
SPACER WASHER DIFFERENTIAL HOUSING,AS REQUIRED 0.50 MM
122
SEAL RING PINION HOUSING TO AXLE HOUSING
125
SCREW APPARATUS SUPPORT TO FRAME
128
LOCK FOLLOWER
131
DIFFERENTIAL LOCK PARTS KIT
134
SHIFTING FORK DIFFERENTIAL LOCK
137
CYLINDRICAL PIN DIFFERENTIAL LOCK,167955
140
SPRING SHIFTING FORK
143
SHAFT SHIFTING ROD,232175
146
HEADLESS SETSCREW TRANSVERSE DIFFERENTIAL LOCK
149
NUT
152
CYLINDER TRANSVERSE DIFFERENTIAL LOCK
155
PISTON TRANSVERSE DIFFERENTIAL LOCK
158
SEAL RING SHIFTING CYLINDER
164
SCREW MASTER CYLINDER TO BRACKET
167
SEAL RING SWITCH TO CASE COVER
170
SWITCH
170
SWITCH , Replaced By: A0015455709
176
SCREW , Replaced By: A3559900604
176
SCREW BRACKET TO BRACKET
178
SCREW REAR AXLE HOUSING TO AXLE CASING M 12X35
178
SCREW , Replaced By: A0069908101
185
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
188
SCREW PLUG
