Поз.
Артикул
Описание

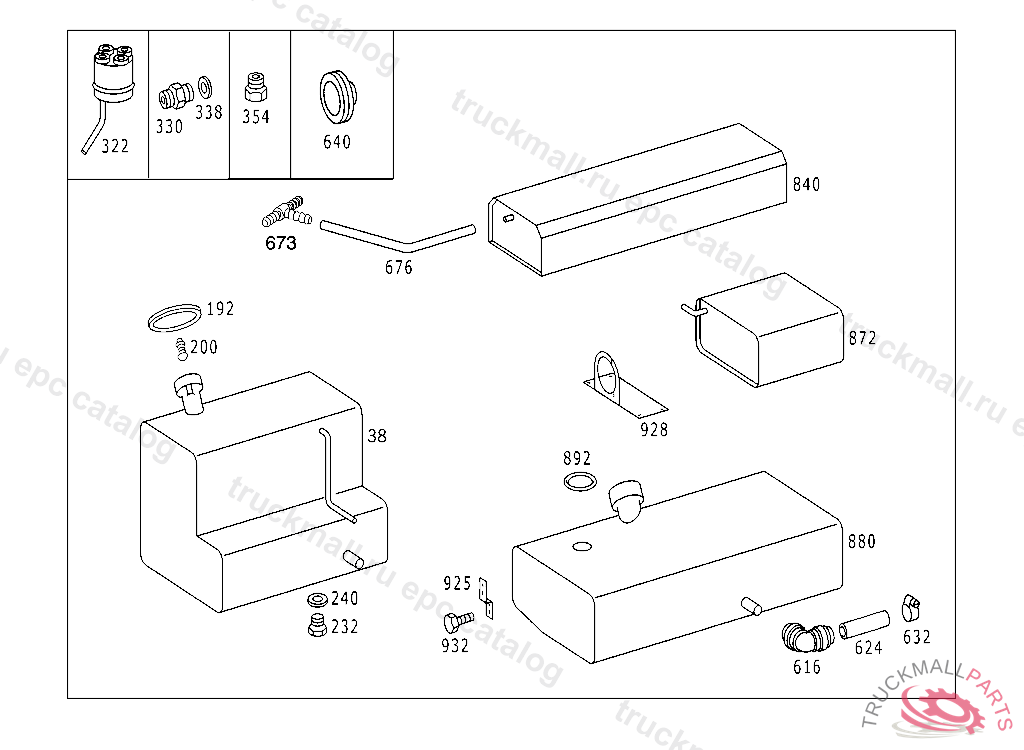

38
FUEL TANK
192
GASKET
192
GASKET
200
VALVE FUEL TANK
232
SCREW PLUG FUEL TANK
240
SEAL RINGTO 000 553 03 05,000 553 18 05,
322
LINE FUEL TANK
322
LINE FUEL TANK
330
SCREW FITTING , Replaced By: A4039971172
330
DOUBLE FITTING FUEL TANK
338
SEAL RINGTO 000 553 03 05,000 553 18 05,
354
SCREW PLUG WATER DRAIN
616
ELBOW FITTING AERATION/DEAERATION
624
HOSE BREATHER PIPE TO FUEL TANK, FROM CHASSIS 005564 ALSO INSTALLED ON 005452,005460,005468,005469,005476,005483,005484,005491,005492,005498,005499,005506,005513,005514, 005519,005520,005526-005528,005532-005536,005538-005543,005549-005551,005558,005559.
632
CLAMP LINE MOUNTING
640
GROMMET
673
ELBOW FITTING FROM FUEL HOSE TO T-FITTING
676
LINE FROM FUEL TANK TO ADDITIONAL TANK
676
LINE FROM FUEL TANK TO ADDITIONAL TANK
840
FUEL TANK (FUEL-OIL TANK), COMPONENT PARTS NOT AVAILABLE
872
FUEL TANK (FUEL-OIL TANK)
880
FUEL TANK LESS SENDER UNIT
880
FUEL TANK (FUEL-OIL TANK)
892
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
925
BRACKET FUEL LINE CONNECTOR
928
BRACKET FUEL LINE CONNECTOR
932
SCREW FUEL LINE CONNECTOR
932
SCREW PUMP TO BRACKET
999
GASKET EXTRACTION OPENING FOR FUEL OIL,075828
999
GASKETTO 612 470 22 01
999
INSULATION AERATION/DEAERATION
999
STRAP
999
FUEL TANK LESS SENDER UNIT 76 L
999
STRAP
999
FUEL TANK
999
FILLER NECK
999
FUEL TANK (FUEL-OIL TANK)
999
FUEL TANK
999
FUEL TANK265 L
999
FUEL TANK (FUEL-OIL TANK)
999
FUEL TANK LESS SENDER UNIT 270 L,075828
999
FUEL TANK (FUEL-OIL TANK),075828
999
FUEL TANK
999
FUEL TANK LESS SENDER UNIT 114 L
999
FUEL TANK
999
FUEL TANK220 L,050329
999
BRACKET CABLE HARNESS THRU RIGHT SIDE MEMBER, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET CABLE HARNESS THRU RIGHT SIDE MEMBER, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
HOSE CONNECTION OF FUEL TANKS
999
HOSE FROM FUEL TANK TO ADDITIONAL TANK
999
HOSE FROM FUEL TANK TO FUEL TANK
999
HOSE
999
FUEL TANK LESS SENDER UNIT 190 L,093523
999
FUEL TANK
999
FUEL TANK
999
LINE FROM FUEL TANK TO FUEL TANK
999
SENDER UNITTO 612 470 32 01
