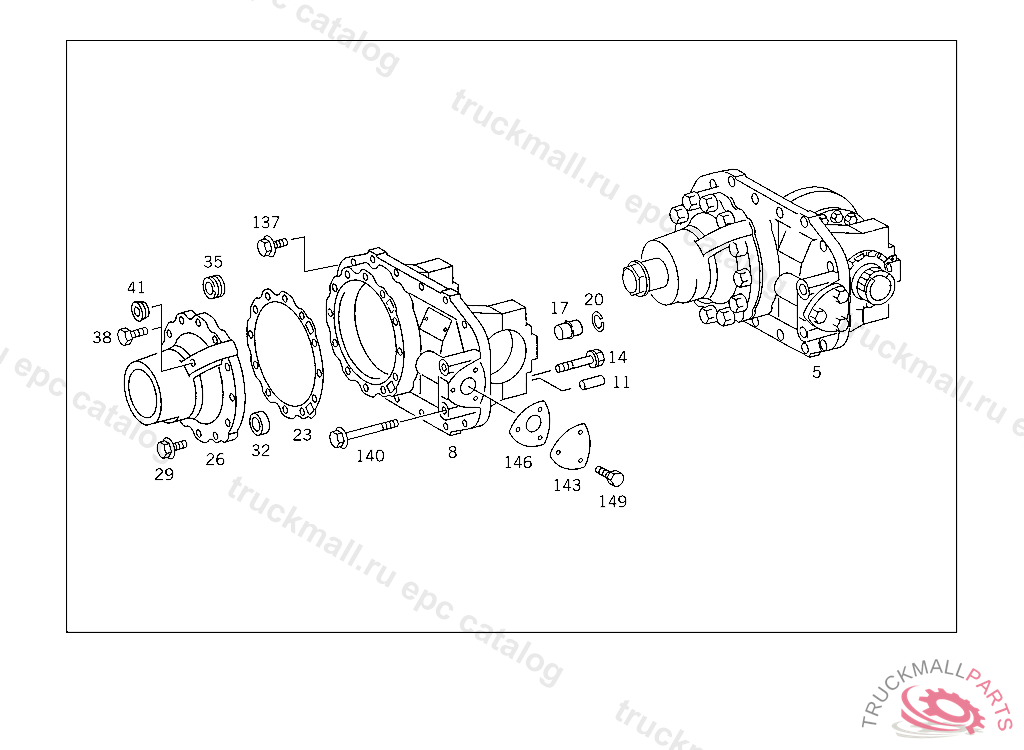

Поз.
Артикул
Описание
5
DIFFERENTIAL GEAR
8
AXLE HOUSING WITH BEARING CAP
8
AXLE HOUSING , Replaced By: A9423500603
8
AXLE HOUSING WITH BEARING CAP
11
CYLINDRICAL PIN , Replaced By: N000007008101
11
CYLINDRICAL PIN
14
SCREW BEARING COVER TO AXLE HOUSING
17
PIN AXLE HOUSING
20
SNAP RING
23
SPACER WASHER PINION HOUSING, AS REQUIRED 1.50 MM
23
SPACER WASHER AS REQUIRED 1.00 MM
23
SPACER WASHER AS REQUIRED 0.50 MM
23
SPACER WASHER PINION HOUSING, AS REQUIRED 0.35 MM
23
SPACER WASHER PINION HOUSING, AS REQUIRED 0.20 MM
23
SPACER WASHER AS REQUIRED 0.15 MM
23
SPACER WASHER AS REQUIRED 0.10 MM
26
HOUSING PINION HOUSING
26
HOUSING (PINION HOUSING)
29
SCREW PINION HOUSING TO REAR AXLE HOUSING
29
SCREW PINION HOUSING TO REAR AXLE HOUSING M 12X38
32
SEAL RING PINION HOUSING TO AXLE HOUSING
137
SCREW , Replaced By: A3559900604
137
SCREW BRACKET TO BRACKET
137
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3559901704
140
SCREW IN CASE OF STEEL AXLE M 12X85
140
HEXAGON HEAD BOLT COVER TO DIFFERENTIAL CASE M12X1.5X85
140
SCREW PINION HOUSING TO AXLE HOUSING M12X1,5X85
143
COVER
146
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
149
SCREW PIPE CLAMP
