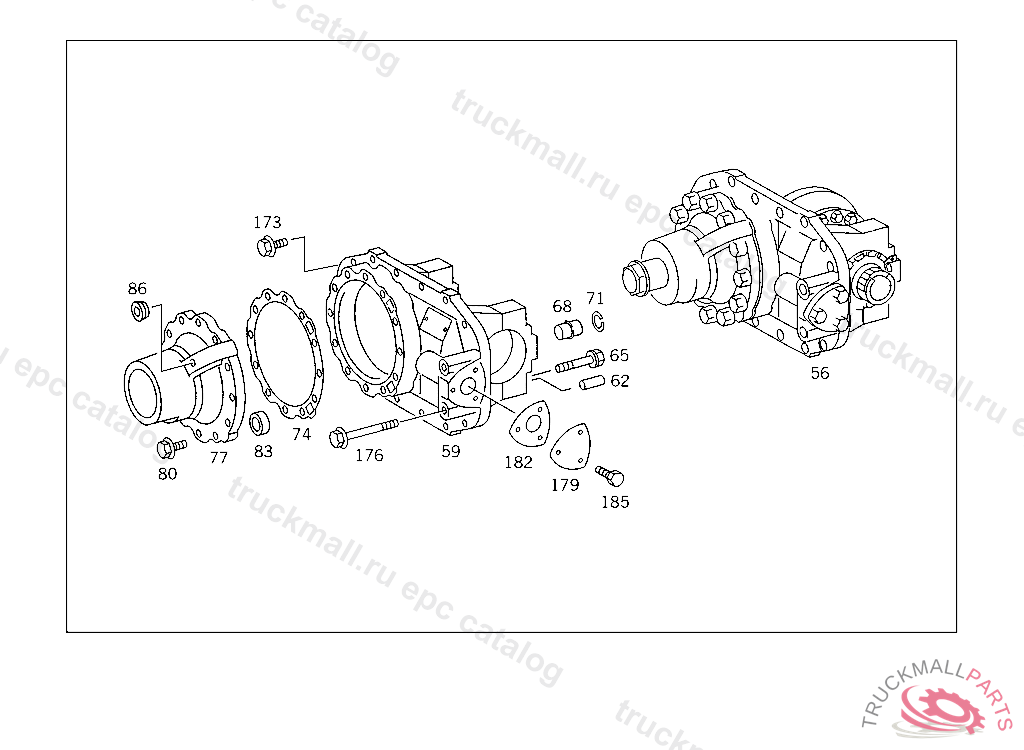

Поз.
Артикул
Описание
56
DIFFERENTIAL GEAR LESS FLANGE
59
AXLE HOUSING
62
CYLINDRICAL PIN
62
CYLINDRICAL PIN , Replaced By: N000007008101
65
SCREW BEARING COVER TO AXLE HOUSING
68
PIN AXLE HOUSING
71
SNAP RING
74
SPACER WASHER PINION HOUSING,AS REQUIRED 0.20 MM
74
SPACER WASHER PINION HOUSING,AS REQUIRED 0.15 MM
74
SPACER WASHER PINION HOUSING,AS REQUIRED 1.50 MM
74
SPACER WASHER PINION HOUSING,AS REQUIRED 0.35 MM, NOT USED
74
SPACER WASHER PINION HOUSING,AS REQUIRED 0.10 MM, NOT USED
74
SPACER WASHER DIFFERENTIAL HOUSING,AS REQUIRED 0.50 MM
74
SPACER WASHER PINION HOUSING,AS REQUIRED 1.00 MM, NOT USED
77
HOUSING , Replaced By: A3553530807, +001N000906020003
77
HOUSING. OIL COLLECTOR (PINION HOUSING)
80
SCREW APPARATUS SUPPORT TO FRAME
83
SEAL RING PINION HOUSING TO AXLE HOUSING
86
SCREW PLUG
173
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3559901704
173
SCREW BRACKET TO BRACKET
176
SCREW DIFFERENTIAL GEAR TO REAR AXLE CASING M 12X40
179
COVER
182
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
185
SCREW PIPE CLAMP
