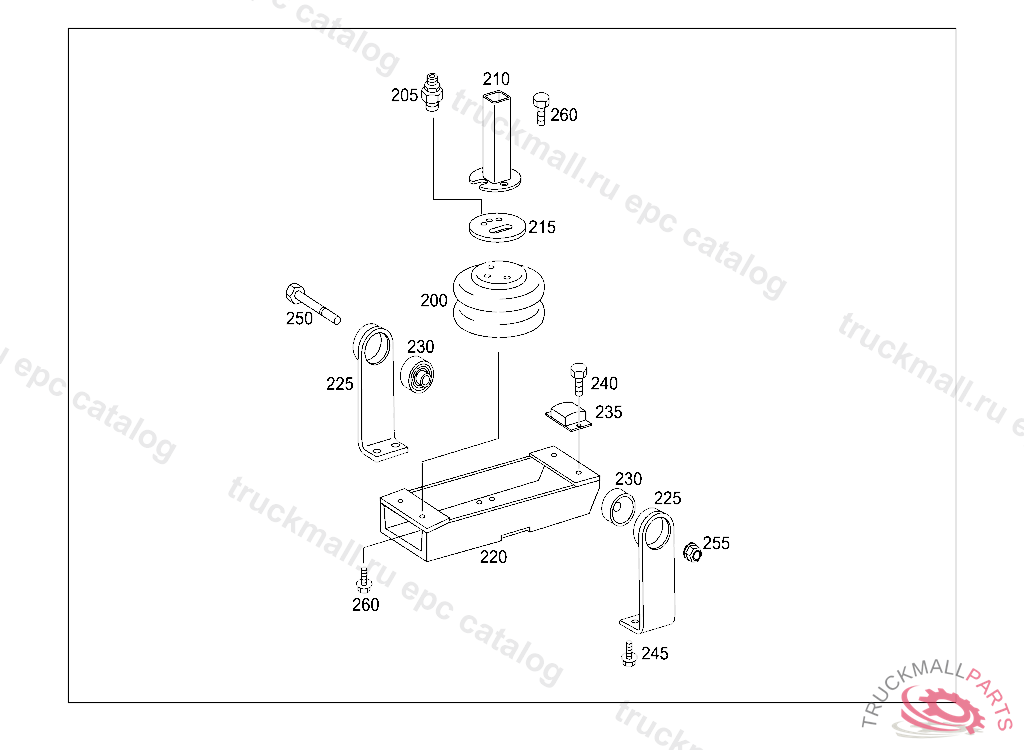

Поз.
Артикул
Описание
200
AIR SPRING BELLOWS AXLE LIFTING ARM
205
INSERT
210
FASTENING PLATE
215
STOP PLATE F BELLOWS AIR SPRING BELLOWS AT BEARING BRACKET H200MM
215
STOP PLATE F BELLOWSH50
220
CONTROL ARM AXLE LIFTING ARM
225
BRACKET AXLE LIFTING ARM
230
THRUST WASHER AXLE LIFTING ARM
235
RUBBER BUFFER AXLE LIFTING ARM
240
SCREWM 10X20
245
SCREW BRACKET TO SIDE MEMBER M10X35
250
SCREW LEFT AND RIGHT AXLE TUBES M22X1.5X195
255
NUT. WHEEL NUT DISC WHEELS TO FRONT AND REAR AXLES
260
SCREW BRACKET TO CAB REAR PANEL M 8X20
