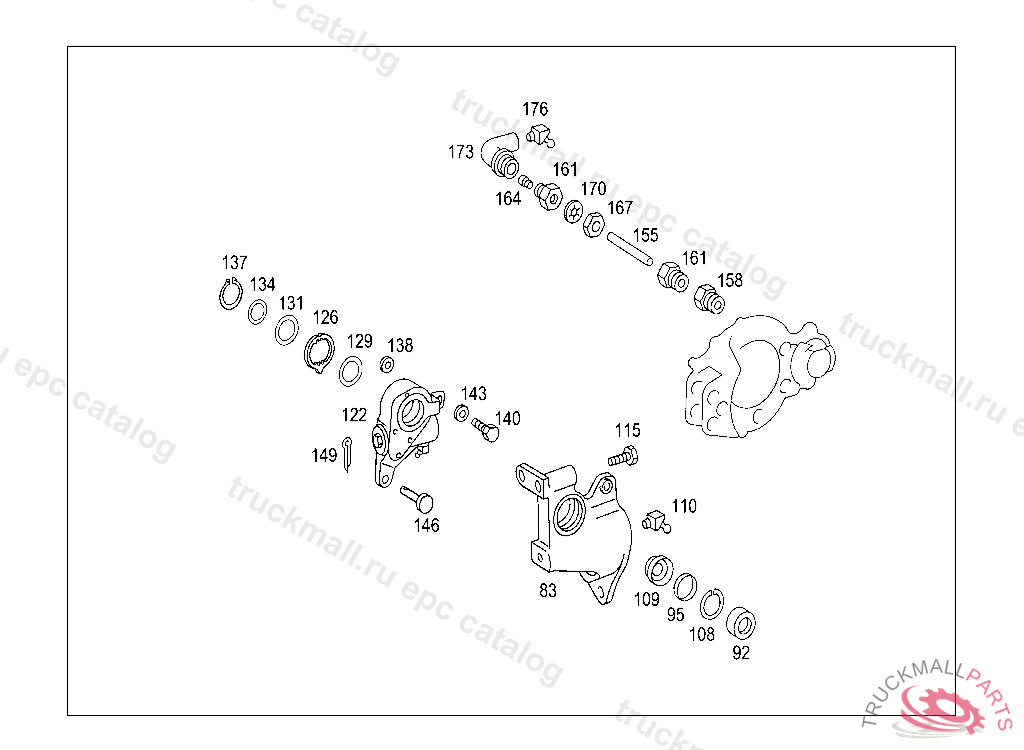

Поз.
Артикул
Описание
83
BEARING BRACKET RIGHT
83
BEARING BRACKET LEFT
92
JOINT BEARING BRAKE CAMSHAFT BEARING IN CASE
92
JOINT BEARING BEARING BRACKET
92
JOINT BEARING BEARING BRACKET
95
SEAL RING BEARING BRACKET
95
SEAL RING INSIDE BEARING BRACKET
95
SEAL RING BRAKE CAMSHAFT BEARING IN CASE
95
SEAL RING INSIDE BEARING BRACKET
95
SEAL RING INSIDE BEARING BRACKET
108
SNAP RING BEARING BRACKET TO AXLE
108
SNAP RING BRAKE CAMSHAFT BEARING
109
SEAL HOLDER BEARING BRACKET
110
GREASE NIPPLE FOR SPRING
110
GREASE NIPPLE
115
SCREW SHOCK ABSORBER TO SPRING SUPPORT
122
ADJUSTER LEFT
122
ADJUSTER RIGHT
122
LINKAGE ACTUATOR AUTOMATIC,LEFT HALDEX
122
LINKAGE ACTUATOR AUTOMATIC,RIGHT
126
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
129
SPACER WASHER BEARING BRACKET TO AXLE
131
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
131
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
131
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
131
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
134
SPACER WASHER ADJUSTER
137
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
138
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
138
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
140
SCREW CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE M 8X25
143
WASHER EXHAUST MUFFLER TO STRAP
146
PIN WHEEL CYLINDER TO SLACK ADJUSTER
149
COTTER PIN STRAP TO SUPPORT
155
PIPE FROM GRASE NIPPLE TO BRAKE CAMSHAFT
158
CONNECTOR , Replaced By: A0005730432
158
CONNECTOR LUBRICATING LINE TO SUPPORT,BEARING BRACKET & BRACKET
161
FITTING LINE CONNECTION VOGEL
164
SEAL CONE LINE CONNECTION VOGEL
164
SEAL CONE
167
NUT RELEASE BEARING LUBRICATION
170
TOOTHED WASHER LINE CONNECTION TO FIRE WALL,684146
173
BULKHEAD FITTING LUBRICATING OIL LINE
176
GREASE NIPPLE
176
GREASE NIPPLE FOR SPRING
