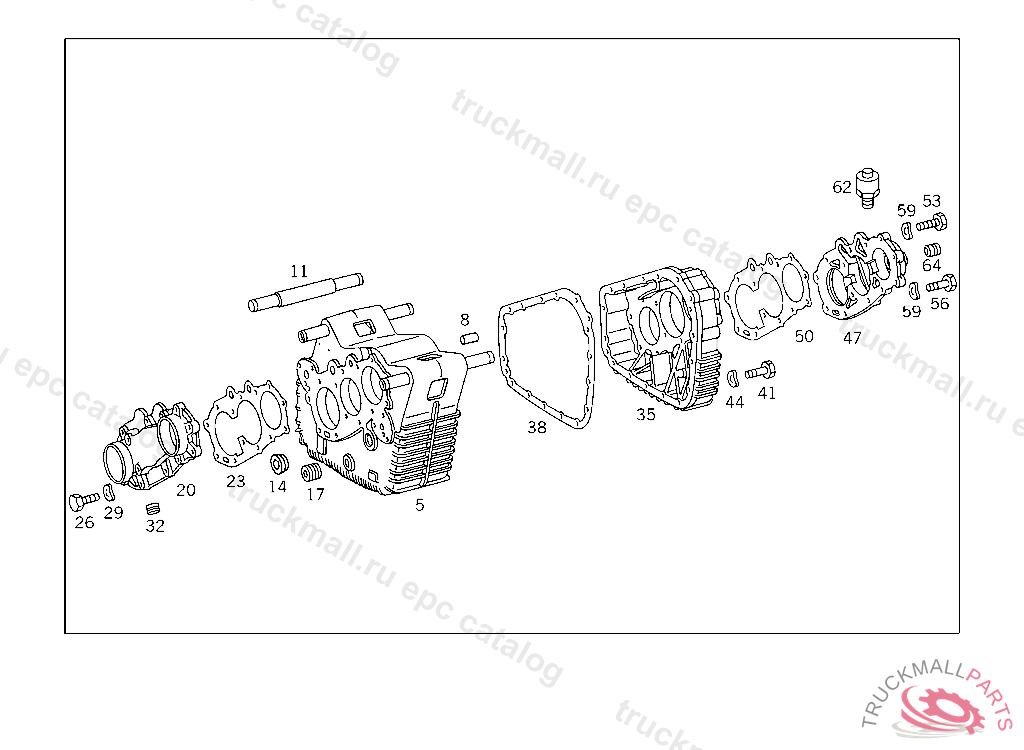

Поз.
Артикул
Описание
5
HOUSING TRANSFER CASE
8
CYLINDRICAL PIN COVER
11
PIN
14
SCREW PLUG OIL FILLING
17
SCREW PLUG HOUSING,BOTTOM,183596
17
SCREW PLUG HOUSING,BOTTOM,183596
20
COVER HOUSING,FRONT
23
GASKET FRONT COVER TO TRANSFER CASE HOUSING
23
GASKET , Replaced By: A3832811580
26
HEXAGON HEAD BOLT FRONT COVER TO TRANSFER CASE HOUSING M12X1.5X70
26
HEXAGON HEAD BOLT FRONT COVER TO TRANSFER CASE HOUSING M12X1.5X40
29
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
29
SPRING WASHER CAB FLOOR
32
PLUG
35
INTERMEDIATE FLANGE REAR, FROM TRANSFER CASE 010127
38
GASKET INTERMEDIATE FLANGE TO HOUSING
38
GASKET , Replaced By: A3832811380
41
HEXAGON HEAD BOLT. SCREW PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
44
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
44
SPRING WASHER CAB FLOOR
47
COVER REAR, EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO TRANSFER CASE 003678
50
GASKET , Replaced By: A3832811680
50
GASKET REAR COVER
53
HEXAGON HEAD BOLT FRONT COVER TO TRANSFER CASE HOUSING M12X1.5X40
53
HEXAGON HEAD BOLT COVER TO INTERMEDIATE FLANGE M12X1.5X60
59
SPRING WASHER CAB FLOOR
59
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
62
BREATHER TRANSFER CASE
64
PLUG
