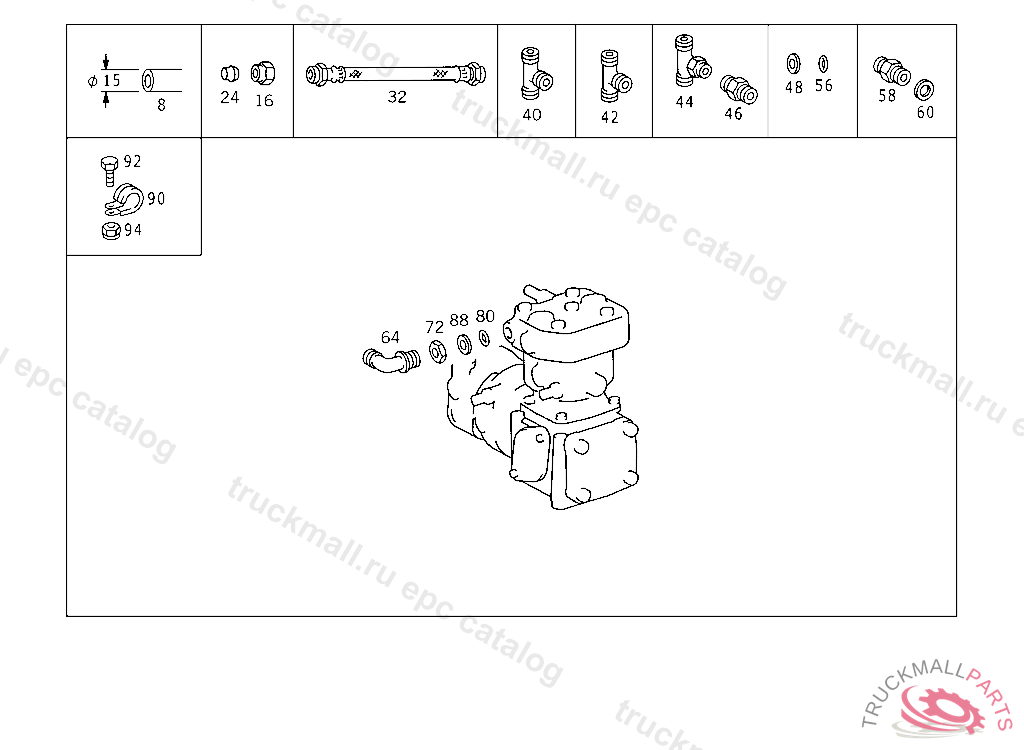

Поз.
Артикул
Описание
8
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
16
UNION NUT BUTT SCREW CONNECTION
16
UNION NUT LINE CONNECTION
24
GLAND LINE CONNECTION
32
BRAKE HOSE FROM AIR COMPRESSOR TO PRESSURE REGULATOR
32
BRAKE HOSE COMPRESSED AIR LINE TO COMPRESSED AIR LINE
40
T-FITTING , Replaced By: N074317000100
42
T-FITTING LINE CONNECTIONS
44
FITTING PRESSURE LIMIT,CIRCUIT II
46
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
48
THRUST RING COMPRESSED AIR LINE TO AIR RESERVOIR AND TO T-FITTING
56
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
58
DOUBLE FITTING LINE CONNECTION TO AIR COMPRESSOR
58
FITTING AT AIR COMPRESSOR
60
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
60
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
64
ELBOW FITTING BUTT SCREW CONNECTION "20",5 271048
72
NUT 3/2-WAY VALVE TO CAB,4 685151
72
NUT , Replaced By: N080705026003
80
SEAL RING LINE CONNECTION
88
THRUST RING SUCTION LINE TO OIL PUMP
90
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
90
CLAMP DELIVERY AND SUCTION LINES TO FRAME
90
CLAMP LINE MOUNTING
92
SCREW CAB FLOOR COVERING M 6X25
94
NUT , Replaced By: N913004006001
94
NUT PUMP TO BRACKET
