Поз.
Артикул
Описание

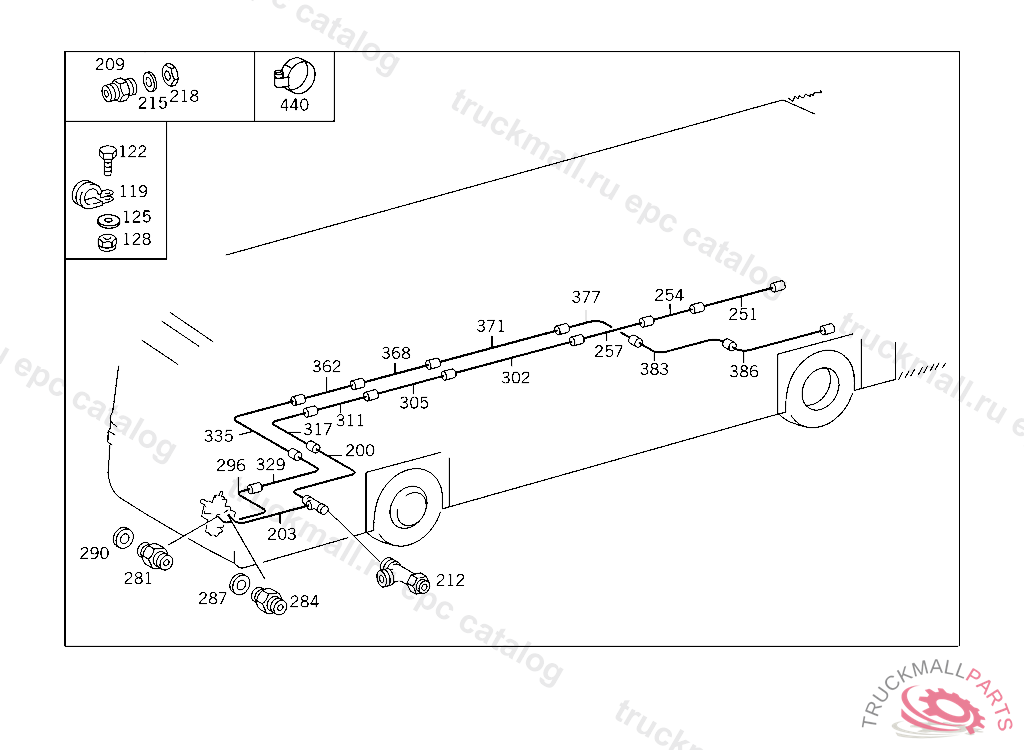

119
CLAMP BRAKE HOSE BRACKET
122
SCREW CAB FLOOR COVERING M 6X25
125
WASHER COMPRESSED AIR LINE TO BRACKET
125
WASHER , Replaced By: N009021006208
128
NUT , Replaced By: N913004006001
128
NUT PUMP TO BRACKET
200
LINE FROM CONNECTOR IX TO TEST CONNECTION,079427
200
LINE FROM CONNECTOR IX TO TEST CONNECTION,079428
203
LINE FROM TEST CONNECTION TO STEERING GEAR
209
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
212
FITTING STEERING GEAR DELIVERY LINE,CIRCUIT II
215
WASHER , Replaced By: N000125015019
215
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
218
NUT CHECK VALVE TO AIR RESERVOIR
251
LINE FROM CONNECTOR VIII TO CONNECTOR IX,075753
251
LINE , Replaced By: A3574601924
251
LINE FROM CONNECTOR VIII TO CONNECTOR IX,075754
254
LINE FROM CONNECTOR IX TO CONNECTOR IXA,075753
254
LINE , Replaced By: A3574602024
257
LINE FROM PUMP TO HIGH PRESSURE HOSE 15 MM,069259076422
257
LINE CONNECTOR IXA TO CONNECTOR X,075753
284
FITTING , Replaced By: A0019901770
284
FITTING AT STEERING GEAR
287
SEAL RINGTO 006 997 00 72
290
SEAL RING SOLENOID VALVE A 18X24
296
LINE FROM STEERING GEAR TO CONNECTOR X,079427
302
LINE FROM CONNECTION FITTING V TO CONNECTION FITTING VI,068909
302
LINE FROM CONNECTOR X TO CONNECTOR XA
305
LINE FROM CONNECTOR XA TO CONNECTOR XI,075753
305
LINE FROM CONNECTOR VI TO CONNECTOR VII
305
LINE , Replaced By: A3574604224
311
LINE FROM CONNECTOR VII TO CONNECTOR VIII
311
LINE FROM CONNECTOR VII TO CONNECTOR VIII,061218079427
317
LINE FROM CONNECTOR VIII TO CONNECTOR IX
317
LINE FROM CONNECTOR VIII TO CONNECTOR IX,079427
329
LINE FROM CONNECTOR X TO CONNECTOR XI,079428
329
LINE FROM CONNECTOR X TO CONNECTOR XI
335
LINE FROM CONNECTOR XI TO CONNECTOR XII,079427
335
LINE FROM CONNECTOR XI TO CONNECTOR XII
362
LINE FROM CONNECTOR XII TO CONNECTOR XIII,079428
362
LINE FROM CONNECTOR XII TO CONNECTOR XIII,061218079427
368
LINE FROM CONNECTOR XVII TO CONNECTOR XVIII 18 MM
368
LINE FROM CONNECTOR XIII TO CONNECTOR XIV,068909
371
LINE FROM CONNECTOR XVIIA TO CONNECTOR XVIII
371
LINE FROM CONNECTOR XIV TO CONNECTOR XV,068909
377
LINE FROM CONNECTOR XVIII TO CONNECTOR XIX 18 MM
377
LINE , Replaced By: A3574602424
377
LINE FROM CONNECTOR XVIII TO CONNECTOR XIX
383
LINE FROM CONNECTOR XIX TO CONNECTOR XX 18 MM
383
LINE FROM CONNECTOR XIX TO CONNECTOR XX
386
LINE , Replaced By: A3574602624
386
LINE FROM CONNECTOR XX TO CONNECTOR XXI
386
LINE FROM CONNECTOR XX TO CONNECTOR XXI,075754
440
CLAMP LINE MOUNTING
