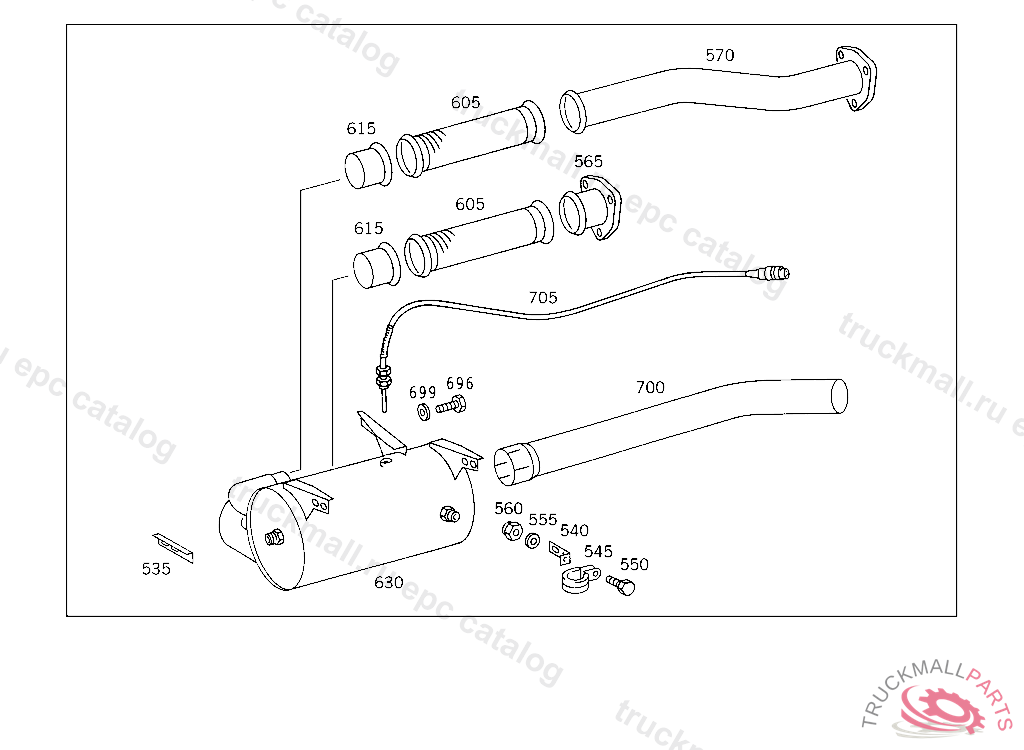

Поз.
Артикул
Описание
535
BRACKET ACTIVATING AGENT LINE LEADING TO PARTICLE FILTER
540
ANGLE PRESSURE GAUGE LINE LEADING TO PARTICLE FILTER, TO BE ADAPTED DURING ASSEMBLY
540
BRACKET , Replaced By: A3520180141
545
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
545
CLAMP ,K 147121, Replaced By: N000000000319
545
CLAMP SENSOR CABLE TO BRACKET
550
SCREW COVER PLATE TO BRACKET
550
SCREW CAB FLOOR COVERING M 6X25
550
SCREW OIL LINE TO CRANKCASE
550
SCREW , Replaced By: N304017006016
550
SCREW PUMP TO BRACKET
555
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
560
NUT PUMP TO BRACKET
560
NUT , Replaced By: N913004006001
565
EXHAUST PIPE BETWEEN EXHAUST MANIFOLD AND FLEXIBLE METAL TUBE
570
EXHAUST PIPE BETWEEN EXHAUST MANIFOLD AND FLEXIBLE METAL TUBE
605
FLEXIBLE METAL TUBE FROM COLLAR TO FRONT EXHAUST PIPE
615
COLLAR FLEXIBLE METAL TUBE TO PARTICLE FILTER,065002
615
COLLAR FLEXIBLE METAL TUBE TO PARTICLE FILTER
630
SOOT FILTER PARTICLE FILTER (DOUBLE CLAMP COLLAR SCREW-CONNECTION)
630
SOOT FILTER , Replaced By: A0004910894
630
SOOT FILTER , Replaced By: A0004910694, +001A3574901866, +001A3574902066
696
SCREW , Replaced By: N304017006018
696
SCREW COVER PLATE TO COVER PLATE M 6 X 12
699
WASHER COMPRESSED AIR LINE TO BRACKET
699
WASHER , Replaced By: N009021006208
700
REAR EXHAUST PIPE
700
REAR EXHAUST PIPE
700
REAR EXHAUST PIPE (TAIL PIPE)
705
SENDER UNIT TEMPERATURE
999
FLEXIBLE METAL TUBE FRONT LEFT
999
FLEXIBLE METAL TUBE CONNECTOR
999
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
999
BOOT PRESSURE SWITCH SCREW-CONNECTION TO M 27X1, M 24X1
999
BRACKET AT BRACKET
999
BRACKET
999
BRACKET
999
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
PUMP (METERING PUMP)
999
VALVE PRESSURE RELIEF VALVE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
LINE
999
EXHAUST PIPE FRONT
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE REAR
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER ,076651
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
BRACKET EXHAUST PIPE TO SUPPORT
999
CONNECTOR
999
BRACKET REAR EXHAUST PIPE,079546
999
SUPPORT REAR EXHAUST MUFFLER
999
GROMMET LINE CONNECTION
999
CONSOLE EXHAUST MUFFLER
999
FITTING LINE CONNECTION
999
RUBBER BUFFER COVERING TO FRAME
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 27X1
999
ACTIVATING AGENT
999
ACTIVATING AGENT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009890250
999
CONNECTOR HEATER PLUG
999
AIR INTAKE PIPE , Replaced By: A3909970682
999
NOZZLE
999
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
999
VALVE
999
VALVE COOLING AIR
999
SEPARATOR (WATER SEPARATOR)
