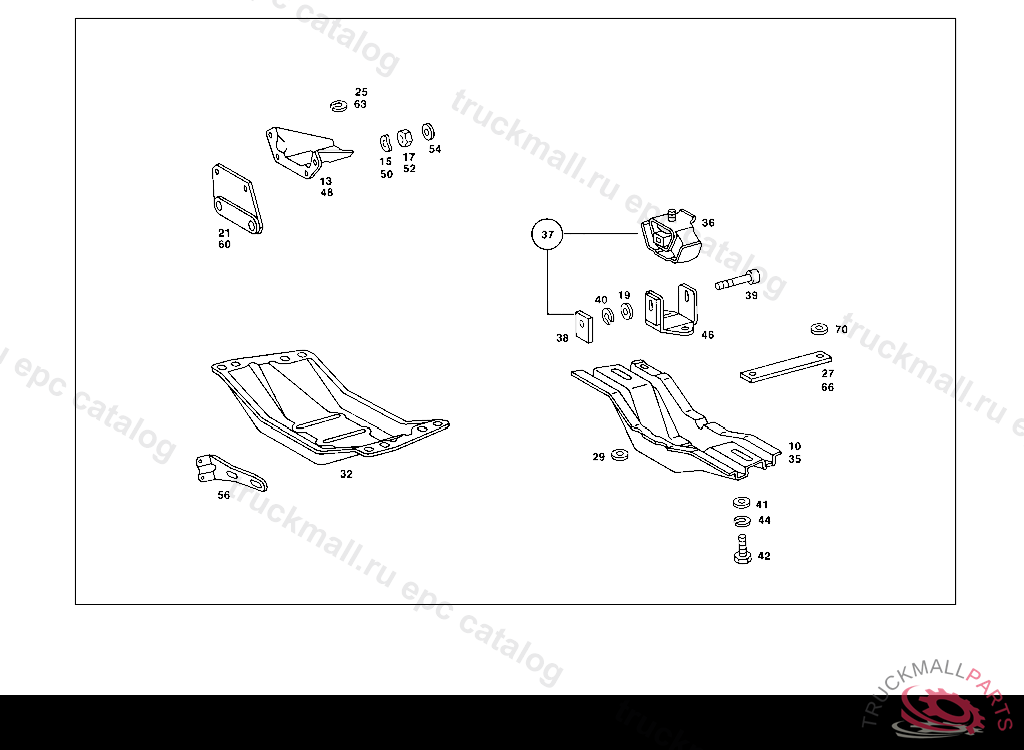

Поз.
Артикул
Описание
10
ENGINE SUPPORT
10
ENGINE SUPPORT
13
SUPPORT
15
SPRING WASHER , Replaced By: N000137008212
17
NUT
19
WASHER REAR FOGLAMP TO BRACKET
21
PLATE
25
LOCK WASHER FITTING TO BRACKET
27
BRACKET
29
WASHER
32
ENGINE SUPPORT
32
ENGINE SUPPORT , Replaced By: A1162420501
32
ENGINE SUPPORT , Replaced By: A1162420601
35
ENGINE SUPPORT
36
RUBBER MOUNTING REAR, 116.020 025446 116.024 028863
36
RUBBER MOUNTING , Replaced By: A1162400418
37
REPAIR KIT , Replaced By: A1232420413, +001A1232420272
37
RUBBER MOUNTING ENGINE REAR SUSPENSION
38
NUT , Replaced By: A1232420272
38
NUT BRACKET TO ENGINE MOUNTING
39
SCREW
40
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
41
WASHER REAR FOGLAMP TO BRACKET
42
SCREW , Replaced By: N304017008016
44
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
46
BRACKET
48
SUPPORT
50
SPRING WASHER , Replaced By: N000137008212
52
NUT
52
NUT , Replaced By: N304032008006
54
WASHER REAR FOGLAMP TO BRACKET
56
BRACKET , 114.011 014698 114.015 125698 114.023 009130 114.060 003009 114.062 003318 114.072 002880 114.073 000421
56
BRACKET , Replaced By: A1144920641
56
BRACKET , Replaced By: A1154920141
56
BRACKET
60
PLATE
63
LOCK WASHER FITTING TO BRACKET
66
BRACKET
70
WASHER , Replaced By: N000125010532
70
WASHER RADIATOR TO RUBBER MOUNTING
999
MOUNTING PLATE MOUNTING WITH SUPPORT TO TRANSMISSION
999
PLATE
999
PLATE
999
PLATE
