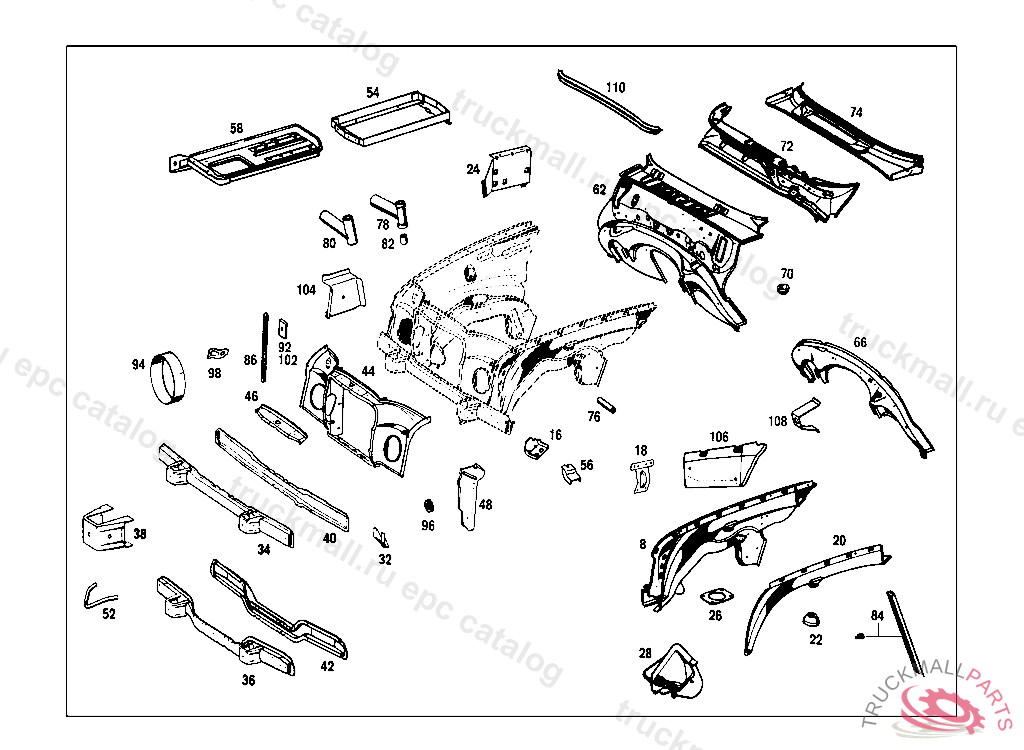

Поз.
Артикул
Описание
8
WHEELHOUSE FRONT LEFT WITH SIDE MEMBERS
16
BRACKET BRAKE HOSE, LEFT FRONT
20
STRUT FRONT LEFT
22
RETAINER
26
PLATE
28
CONSOLE FRONT AXLE LEFT BRACING
36
SUPPORT FRONT
38
CONSOLE FRONT LEFT SHOCK ABSORBER
42
CROSS MEMBER FRONT, 024/025 FROM CHASSIS 003545 ALSO INSTALLED ON 003479,003498,003515-003519,003521,003522,003524-003530,003532-003534,003536-003 543
48
STIFFENING FRONT, 024/025 FROM CHASSIS 003545 ALSO INSTALLED ON 003479,003498,003515-003519,003521,003522,003524-003530,003532-003534,003536-003 543
52
EYE FRONT
56
ANGLE LEFT (ENGINE SHOCK ABSORBER)
58
REST
70
EXPANSION PLUG , Replaced By: A1139870044
70
EXPANSION PLUG ELECTRIC CABLE THRU FIRE WALL,4 9400475 187082
72
INSTRUMENT PANEL SHELL
74
PANELLING
76
TUBE
80
TRUNNION BEARING
84
ADHESIVE TAPE (SEAL),BETWEEN OUTSIDE REAR PILLAR AND ROOF 560 MM, ORDER BY THE METER
94
SHELL
96
GROMMET
98
CLAMP
102
SHEET METAL NUT CONDENSER TO FRONT STIFFENING
104
BRACKET
106
CONNECTION
108
MOUNTING CONTROL LINKAGE TO FIRE WALL, CENTER
999
RUBBER SECTION , Replaced By: A0009876233
999
STRUT BETWEEN STIFFENING AND FRONT CROSS MEMBER
999
BRACKET FUEL FINE-MESH FILTER, 003778
999
CONSOLE FRONT RIGHT SHOCK ABSORBER
999
CONSOLE FRONT AXLE RIGHT BRACING
999
BRACKET KICK-DOWN, NO LONGER AVAILABLE
999
STRUT FRONT RIGHT
999
COWL LESS FIRE WALL, NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
999
WHEELHOUSE FRONT RIGHT WITH SIDE MEMBERS
999
FRONT PANEL , FROM CHASSIS 002864 ALSO INSTALLED ON 002123,002193,002327,002402,002539,002546,002726,002731,002744,002748,002757,002760,0027 63,002797,002862
999
WHEELHOUSE FRONT LEFT LESS SIDE MEMBERS
999
WHEELHOUSE FRONT RIGHT LESS SIDE MEMBERS
999
STRUT BETWEEN STIFFENING AND FRONT CROSS MEMBER, 024/025 FROM CHASSIS 003545 ALSO INSTALLED ON 003479,003498,003515-003519,003521,003522,003524-003530,003532-003534,003536-003 543
999
REINFORCEMENT
999
BRACKET BRAKE HOSE, LEFT FRONT
999
CONNECTION AT WHEELHOUSE PANEL AND AT FIRE WALL, RIGHT
999
SHEET METAL NUT , Replaced By: N913008006300
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
SCREW , Replaced By: N304017006018
999
SCREW , Replaced By: N304017008016
999
SHEET METAL SCREW BRACKET TO WINDOW SILL
999
SCREW
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COLD START SYSTEM TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
