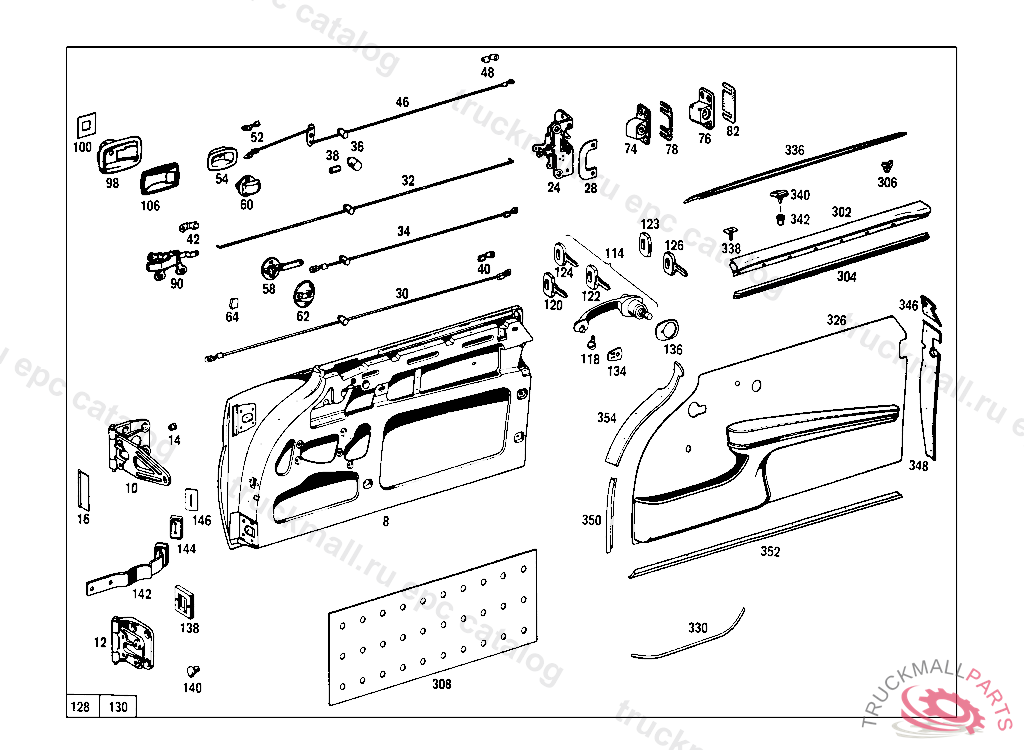

Поз.
Артикул
Описание
8
DOOR SHELL RIGHT, FROM CHASSIS 033128 ALSO INSTALLED ON SEE FOOTN.66
10
HINGE TOP LEFT
10
HINGE , Replaced By: A1117205137
12
HINGE , Replaced By: A1117205138
12
HINGE BOTTOM RIGHT, VOR EINBAU SCHARNIERBOLZEN VON ANDERER SEITE EINPRESSEN, SCHARNIERBOLZENKOPF MUSS NACH OBEN ZEIGEN.
14
GREASE NIPPLE
16
SEAL DOOR UPPER HINGE 70 MM, 000,001,004,010 UP TO CHASSIS 026625 EXCEPT FOR,SEE FOOTNOTE 002,100,101,104,110 UP TO CHASSIS 036694 EXCEPT FOR,SEE FOOTNOTE 003
24
LOCK CENTRAL DOOR,001274
28
EDGING RIGHT COVER PLATES BETWEEN LOCKS AND DOOR LINING
32
ROD , FROM CHASSIS 088725 ALSO INSTALLED ON 088472,088717
36
MOLDED PIECE , 043 002979
38
SLEEVE , 043 002979
42
LOCK PULL ROD TO DOOR LOCK
46
DOOR LOCKING DEVICE RIGHT, FROM CHASSIS 088725 ALSO INSTALLED ON 088472,088717
48
LOCK PULL ROD TO DOOR LOCK
52
LOCK
54
ESCUTCHEON
60
DOOR LOCKING DEVICE
76
LOCKING EYE RIGHT, FROM CHASSIS: 010 031987 ALSO INSTALLED ON: 026127-026384 110 071329 ALSO INSTALLED ON: 057116-057347
82
PLATE 0.5 MM, FROM CHASSIS: 010 031987, ALSO INSTALLED ON: 026127-026384 110 071329, ALSO INSTALLED ON: 057116-057347
90
INTERIOR HANDLE ASSEMBLY RIGHT
98
ESCUTCHEON RIGHT
100
SEAL
106
INSERT RIGHT
122
KEYHUF, STATE LOCK NUMBER WHEN ORDERING
123
KEY HEAD
124
KEY SECONDARY KEY, STATE NUMBER OF LOCK WHEN ORDERING STATE LOCK NUMBER WHEN ORDERING
130
KEY HEAD
134
PAD DOOR HANDLES RIGHT FRONT, FROM CHASSIS 033128 ALSO INSTALLED ON SEE FOOTN.66
136
PAD LEFT REAR
138
PLATE DOOR CHECK
140
RUBBER BUFFER , UP TO CHASSIS: 014534, EXCEPT FOR: 014490,014497,014503,014507,014511-014524,014526-014533.
142
DOOR CHECK
144
RUBBER BUFFER
146
PLATE
302
PANELLING WITH LINING,RIGHT, WHEN ORDERING,STATE COLOR AND CHASSIS NO.
304
GARNISH MOULDING
306
CLIP , Replaced By: A0029884578
306
CLIP
308
INSULATION
308
INSULATION , Replaced By: A2106820008
308
INSULATION , Replaced By: A1237270090
308
INSULATION , Replaced By: A1107270390
330
GARNISH MOULDING FOR POCKET RIGHT
336
GARNISH MOULDING RIGHT FRONT DOOR
338
SCREW
340
FASTENER BUTTON
342
FASTENER BUTTON
342
FASTENER BUTTON. GROMMET , Replaced By: A0019882081
342
FASTENER BUTTON , Replaced By: A0089970381
342
GROMMET , Replaced By: A0019882081
346
ORNAMENTAL COVER TOP RIGHT
348
ORNAMENTAL COVER BOTTOM RIGHT
350
COVER RAIL RIGHT
352
COVER RAIL BOTTOM RIGHT
354
ORNAMENTAL COVER RIGHT
999
SCREW LICENSE PLATE TO BRACKET
999
NAIL
999
LOCK , UP TO CHASSIS: 005,007,008,015,017 207357 011 101648 060 102313 062 101808
999
LOCK WASHER T-FITTING TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
TOOTHED WASHER MASKED STOP LAMP
999
LOCK PLATE LEVER TO BRACKET
999
RIVET ARMREST TO COVERING
999
TAPPING SCREW DOOR HINGE,TOP RIGHT
999
SHEET METAL SCREW
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SHEET METAL SCREW TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
999
SHEET METAL SCREW , 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113
999
SHEET METAL SCREW COVERING TO HOUSING
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SHEET METAL SCREW EDGING TO DOOR
999
SHEET METAL SCREW
999
SHEET METAL SCREW ARMREST TO COVERING
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SCREW
999
SCREW
999
SCREW , Replaced By: N000000001145
999
SCREW
999
SCREW
999
SCREW
999
SCREW
999
SCREW HINGE TO DOOR
999
SCREW
999
SCREW
999
WASHER , Replaced By: N009021004207
999
WASHER COVERING TO CYCLONE AIR TRAP
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
TOOTHED WASHER , 123.020 082784 123.023 100522 123.026 050534 123.120 116041 123.123 080963 123.126 045537 123.130 101733
999
TOOTHED WASHER CABLE TO FUSE BOX
999
TOOTHED WASHER COVER TO COVERING,K 093739
999
GROOVED PIN
999
NUT BALL PIVOT TO LEVER
999
NUT AIR INTAKE PIPE TO AIR INTAKE PIPE,937184
999
SCREW INTERMEDIATE BEARING TO BRACKET M 8X20
999
SCREW , Replaced By: N304017006020
999
SCREW , Replaced By: N304017006018
999
SCREW ELECTRIC CABLE TO BRACKET M 6X60
999
SCREW WINDOW GUIDE TO DOOR,BOTTOM
999
SCREW BRACKET TO AIR INTAKE PIPE
999
SCREW
999
WASHER
999
NUT CLAMP TO BRACKET
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER WINDOW REGULATOR TO DOOR SHELL
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
LOCK WASHER TAIL LAMP TO BRACKET
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
WASHER BRACKET TO SUPPORT
999
WASHER , Replaced By: N000125004319
999
COTTER PIN FROM BRAKE SHAFT TO BRAKE LEVER
999
SCREW
999
PLATE , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A1867230019
999
SCREW , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A1806900071
999
WASHER
999
WASHER , Replaced By: A1809900640
999
WASHER DOOR HINGE,TOP RIGHT
999
CRANK
999
REPAIR KIT
999
SEAL INSIDE 4000 MM
999
SLIDE , Replaced By: A1155860072
999
WASHER , Replaced By: A1205450076
999
WASHER , EXCEPT FOR 001813, 001816
999
PLATE 1.5 MM, FROM CHASSIS: 010 031987, ALSO INSTALLED ON: 026127-026384 110 071329, ALSO INSTALLED ON: 057116-057347
999
PLATE , Replaced By: A1157230611
999
PLATE , Replaced By: A1157230511
999
LOCKING EYE LEFT
999
LOCK WITH INTERIOR LOCKING MECHANISM,LEFT
999
REPAIR KIT , Replaced By: A1237200114
999
RUBBER BUFFER , Replaced By: A1159870740
999
PAD DOOR HANDLES LEFT FRONT, FROM CHASSIS 033128 ALSO INSTALLED ON SEE FOOTN.66
999
PAD RIGHT REAR
999
DOOR HANDLE WITH KEY,RIGHT, 003225
999
DOOR HANDLE WITH KEY,LEFT, 003225
999
KNOB , 099999
999
DOOR HANDLE LESS KEY,RIGHT, STATE LOCK NUMBER WHEN ORDERING
999
DOOR HANDLE LESS KEY,LEFT, 003225 STATE LOCK NUMBER WHEN ORDERING
999
ORNAMENTAL COVER BOTTOM LEFT
999
ORNAMENTAL COVER TOP LEFT
999
ORNAMENTAL COVER LEFT
999
COVER RAIL BOTTOM LEFT
999
GARNISH MOULDING LEFT FRONT DOOR, ON SPECIAL REQUEST, PULL ROD WITH ADDIT. LOCKING MECHANISM
999
COVER RAIL LEFT
999
GARNISH MOULDING FOR POCKET LEFT
999
RAIL LEFT
999
GARNISH MOULDING
999
SEAL WEATHERSTRIP, FROM CHASSIS 056778
999
WINDOW REGULATOR LEFT, MIND RANGE OF DELIVERY
999
WINDOW REGULATOR , 004624, Replaced By: A1117256402, +002A1237600102, +002A1237600020, +002A1087680113
999
SEAL ROOF RAIL,LEFT
999
WINDOW REGULATOR , 004624, Replaced By: A1117256302, +002A1237600102, +002A1237600020, +002A1087680113
999
CONNECTION LEFT, 021 FROM CHASSIS 020004 ALSO INSTALLED ON SEE FOOTN.65
999
SEALING RAIL , Replaced By: A1117255165
999
WINDOW GUIDE LEFT REAR, FROM CHASSIS 032495 EXCEPT FOR 032719-032726,032734-032743
999
WINDOW REGULATOR RIGHT
999
SEALING RAIL LEFT FRONT DOOR
999
SEAL VENTILATOR WINDOW, 021 FROM CHASSIS 013263
999
WINDOW REGULATOR LEFT
999
ADAPTER WINDOW RUN TO FRONT DOOR,TOP 1.0 MM
999
SEALING RAIL DOOR FRONT PILLAR,LEFT
999
GLASS PANE LEFT
999
STOP
999
EDGING FOR DOOR LOCK LEFT
999
PANELLING LEFT FRONT DOOR, STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS: 111.024,025 002864, ALSO INSTALLED ON: 002123,002193,002327,002402,002539,002546,002726,002731,002744,002748,002757,002760,002763,002797, 002862. 111.026,027 000001
999
PANELLING LEFT FRONT DOOR, STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS: 111.024,025 002864, ALSO INSTALLED ON: 002123,002193,002327,002402,002539,002546,002726,002731,002744,002748,002757,002760,002763,002797, 002862. 111.026,027 000001
999
VENTILATOR WINDOW LEFT, 021 FROM CHASSIS 030089,023 FROM CHASSIS 030103 ALSO INSTALLED ON 029037-029045,029070 EXCEPT FOR 030138,030130
999
WEATHERSTRIP LEFT FRONT DOOR, 021 FROM CHASSIS 020004 ALSO INSTALLED ON SEE FOOTN.65
999
WINDOW REGULATOR RAIL LEFT
999
DOOR SHELL LEFT, FROM CHASSIS 033128 ALSO INSTALLED ON SEE FOOTN.66
999
PANELLING WITH LINING,LEFT, WHEN ORDERING,STATE COLOR AND CHASSIS NO.
999
VENTILATOR WINDOW LEFT, FROM CHASSIS 011206 ALSO INSTALLED ON 010880,010882 FROM CHASSIS 047898 BOTTOM OBLONG HOLE MODIFIED FROM 8 MM TO 6.3 MM
999
WINDOW REGULATOR RAIL , Replaced By: A1117206245
999
WINDOW REGULATOR RAIL , Replaced By: A1117206145
999
FRAME TOP LEFT, 021 FROM CHASSIS 030089,023 FROM CHASSIS 030103 ALSO INSTALLED ON 029037-029045,029070 EXCEPT FOR 030138,030130
999
ANGLE CRANK OPERATED WINDOW
999
DOOR LOCKING DEVICE LEFT, FROM CHASSIS 088725 ALSO INSTALLED ON 088472,088717
999
RUBBER MOULDING
999
PAD , Replaced By: A1087680095
999
WASHER , Replaced By: A1087680113
999
CAP
999
FASTENER RIGHT, 000,001,004,010 FROM CHASSIS 188164,100,101,104,110 FROM CHASSIS 352146,002,003,005,011 FROM CHASSIS 031994
999
FASTENER LEFT, 000,001,004,010 FROM CHASSIS 188164,100,101,104,110 FROM CHASSIS 352146,002,003,005,011 FROM CHASSIS 031994
999
WASHER
999
ESCUTCHEON LEFT
999
INSERT LEFT
999
INTERIOR HANDLE ASSEMBLY LEFT, 000,001,004,010 FROM CHASSIS 188150,100,101,104,110 FROM CHASSIS 352119,002,003,005,011 FROM CHASSIS 031990
999
CRANK , FROM CHASSIS: 000,002,010 046471 015 047683 100,102,110 111771 103,112 112413 115 051671 005,017,105,107,108,117,119 000001, Replaced By: A1237600102
999
HOSE26 MM, ORDER BY THE METER
999
HOSE , Replaced By: A0009978482
999
HOSE
999
SCREW
999
WASHER , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
CLEANER
999
WASHER , FROM CHASSIS: 034089, ALSO INSTALLED ON: 033673,033706,033709,033716,033736,033765,033914,033922,033926,033930,033931,033934,033936,033938, 033939,033941-033951,033953,033955,033956,033959,033960,033962,033964,033966,033967,033969-033998, 034000-034010,034012-034022,034024-034087. 050734
