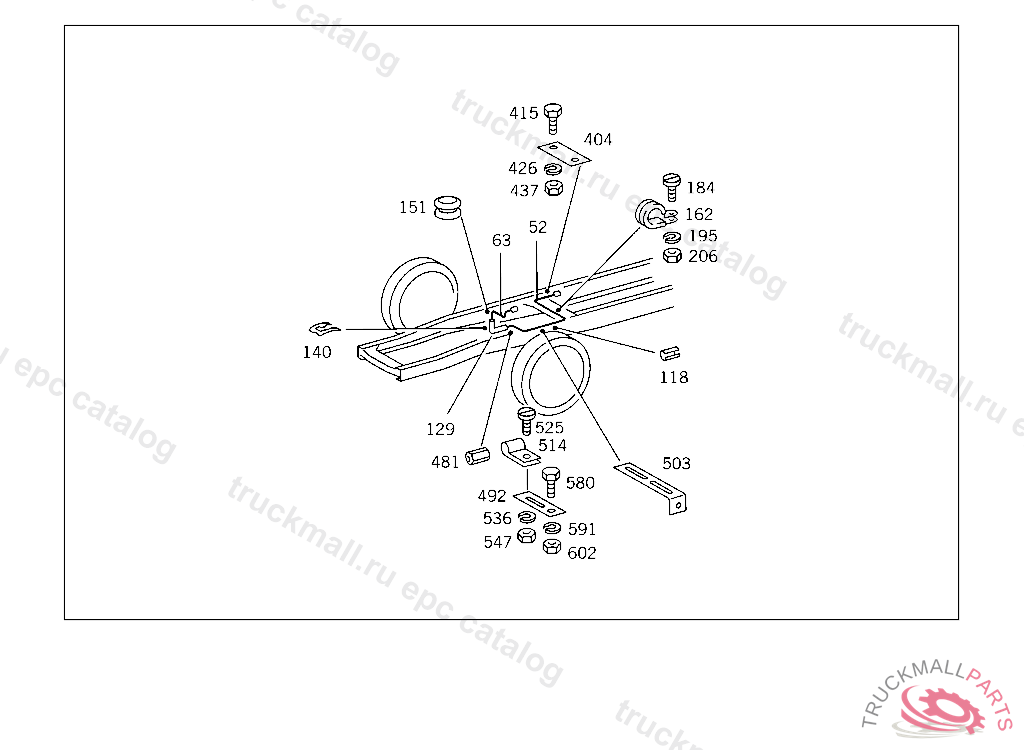

Поз.
Артикул
Описание
52
LINE FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER 650 MM
52
LINE FROM BRAKE POWER REGULATOR TO BRAKE PRESSURE RELIEF 600 MM
63
LINE FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE 500 MM
118
HOSE
129
BRAKE HOSE BETWEEN THE LINES
129
BRAKE HOSE BETWEEN THE LINES
129
BRAKE HOSE BETWEEN THE LINES
140
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
140
BRACKET. LOCK , Replaced By: A6525040038
151
GROMMET LINE MOUNTING 16/11 MM
151
GROMMET
162
CLAMP , Replaced By: N916016008200
162
CLAMP ,K 147121, Replaced By: N000000000319
162
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
184
SCREW PROTECTION PLATE TO BRACKET
195
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
206
NUT BALL PIVOT TO LEVER
404
BRACKET LINE MOUNTING
415
SCREW COVER PLATE TO BRACKET
426
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
437
NUT BALL PIVOT TO LEVER
481
CONNECTOR , Replaced By: A0004292736
481
CONNECTOR OIL DELIVERY LINE
492
BRACKET CONNECTOR, UP TO CHASSIS 734559
503
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
514
CLAMP FEED LINE TO THERMOSTAT
525
SCREW PROTECTION PLATE TO BRACKET
536
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
547
NUT BALL PIVOT TO LEVER
580
SCREW , Replaced By: N304017008034
580
SCREW BRACKET TO CROSS CONNECTION STRUT
591
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
602
NUT
