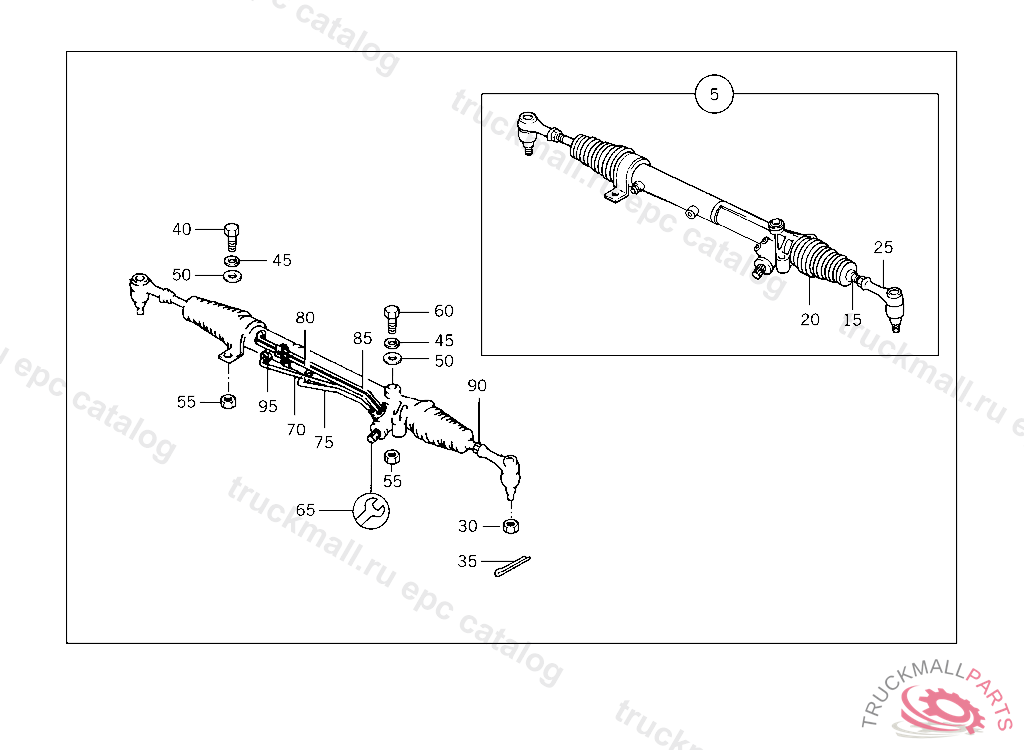

Mercedes A6614603100 -

STEERING N/N 766.520

46 STEERING - 030 STEERING

Поз.
Артикул
Описание
5
A6614603300
STEERING BOX ASSEMBLY
5
A6614603400
STEERING BOX ASSEMBLY
5
A6614603100
STEERING BOX ASSEMBLY , Replaced By: A6614603300
5
A6614603200
STEERING BOX ASSEMBLY , Replaced By: A6614603400
15
A6614603091
ROD
20
A6614613096
BOOT REPAIR KIT
25
A6614603048
DRAG LINK END
30
N000935016002
NUT , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
35
N000094004060
COTTER PIN4X32, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
40
N000960012413
SCREW
45
N912004012100
LOCK WASHER FITTING TO BRACKET
50
N000125013008
WASHER
55
N000934012034
NUT PROPELLER SHAFT TO COUPLING FLANGE
60
N000960012413
SCREW
65
A6614603501
REPAIR KIT STEERING TO A 661 460 34 00
65
A6614603301
REPAIR KIT STEERING TO A 661 460 33 00
70
A6614603024
LINE FEED LINE,LEFT
75
A6614603124
LINE FEED LINE,RIGHT
80
A6614603324
LINE RETURN
85
A6614603224
LINE DELIVERY LINE
90
A6619903550
NUT
95
A6614603160
SEAL RING
95
A6614603060
SEAL RING
999
A6614613001
BOX
999
A6614613101
BOX
