Поз.
Артикул
Описание
5

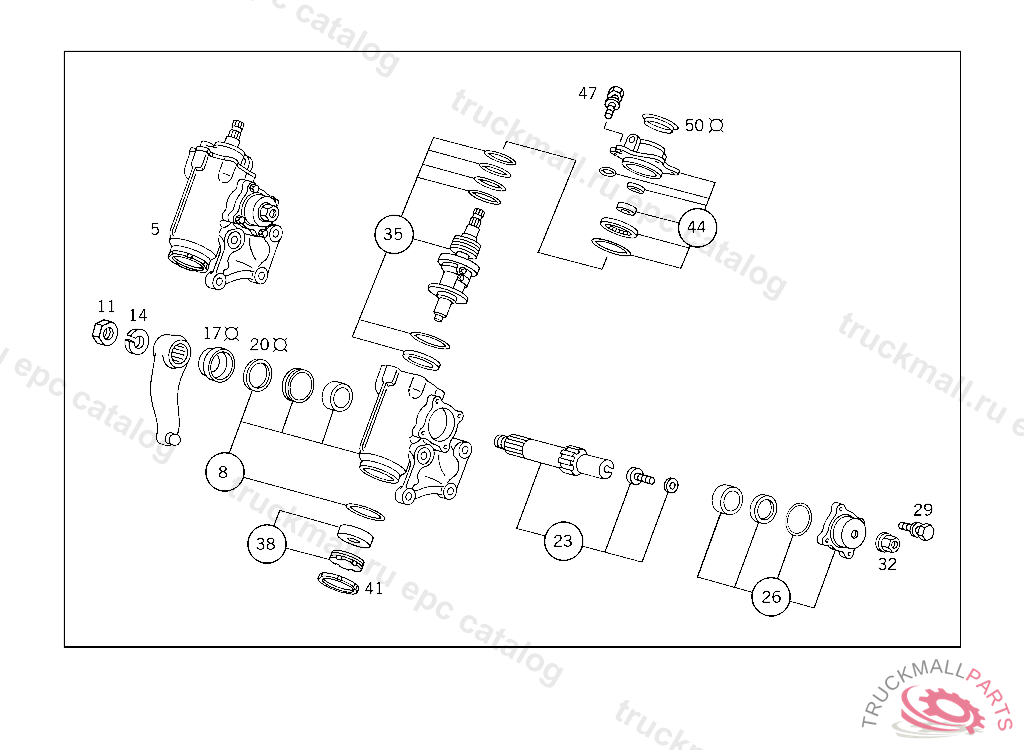

STEERING BOX ASSEMBLYKOYO 2710-8CR1-1
8
STEERING BOX
8
STEERING BOX , NOT USED
11
NUT , Replaced By: A0009904055
11
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
14
WASHER PITMAN ARM TO STEERING BOX ASSEMBLY
17
BOOT PITMAN ARM TO STEERING BOX ASSEMBLY
20
SEAL RING STEERING WORM SECTOR SHAFT SEALING
23
STEERG. WORM SECTOR SHAFT
26
STEERING BOX COVER LATERAL
29
SCREW COVER TO STEERING BOX
32
NUT STEERING WORM SECTOR SHAFT ADJUSTMENT
35
STEERING NUT WITH STEERING WORM, NOT USED
35
STEERING NUT WITH STEERING WORM
50
BOOT STEERING WORM SEALING
999
SCREW CONSOLE TO FRAME SIDE MEMBER
