Поз.
Артикул
Описание

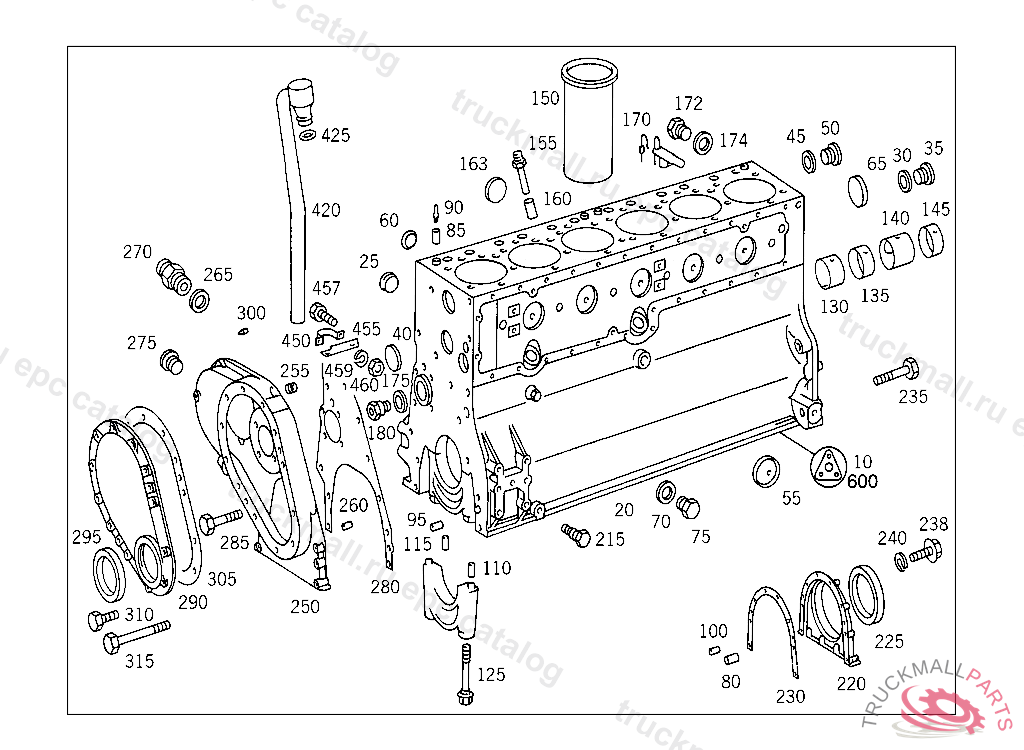

10
GASKET KIT CYLINDER CRANKCASE, FOR BREAK-DOWN OF OF GASKET KIT, SEE END OF GROUP 01
10
GASKET KIT ENGINE, FOR BREAK-DOWN,SEE GASKET KITS OF CYLINDER CRANKCASE AND CYLINDER HEAD, IN ADDITION: 6 X 016 997 82 48 6 X 346 017 01 60 1 X 327 141 07 80 1 X 327 141 10 80 1 X 102 018 00 80 1 X 352 203 04 80 1 X 352 203 07 80 1 X 352 203 16 80 1 X 327 203 02 80
10
GASKET KIT , Replaced By: A3600105508
20
CRANKCASE
25
SCREW PLUG CORE HOLE IN PUSH ROD CHAMBER
30
SEAL RING
35
SCREW PLUG OIL PASSAGE,REAR
40
EXPANSION PLUG FRONT CORE HOLE,041127
40
EXPANSION PLUG FRONT CORE HOLE,041126
45
SEAL RING REAR CORE HOLE
50
SCREW PLUG REAR CORE HOLE
55
EXPANSION PLUG CORE HOLE,OIL COOLER SIDE
60
EXPANSION PLUG P.T.O.
65
EXPANSION PLUG CAMSHAFT BEARINGS NO. 7
70
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
75
SCREW PLUG OIL PASSAGE,REAR
80
CYLINDRICAL PIN FLYWHEEL HOUSING TO CYLINDER CRANKCASE
85
CYLINDRICAL PIN CYLINDER HEAD TO CYLINDER CRANKCASE
90
GROOVED PIN CYLINDER HEAD TO CYLINDER CRANKCASE
95
CYLINDRICAL PIN
95
CYLINDRICAL PIN ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
100
CYLINDER PIN. CYLINDRICAL PIN , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
110
CYLINDRICAL PIN , Replaced By: N000007008108
110
CYLINDER PIN. CYLINDRICAL PIN
115
CYLINDRICAL PIN
125
SCREW CRANKSHAFT BEARING CAP TO CYLINDER CRANKCASE
130
CAMSHAFT BEARINGNO. 1
135
CAMSHAFT BEARINGNO. 2, NO. 3, NO. 5, NO. 6
140
CAMSHAFT BEARINGNO. 4
145
CAMSHAFT BEARINGNO. 7
150
CYLINDER LINER REPAIR SOLUTION, CYLINDER CRANKCASE WITH DRY LINERS 120.00 MM
150
CYLINDER LINER STANDARD SIZE I
155
GUIDE TUBE
155
GUIDE TUBE , Replaced By: A3520184216
160
SPACER TUBE GUIDE TUBE TO CYLINDER CRANKCASE
170
SPRING ,4 263013
172
SCREW PLUG
174
SEAL RING VALVE TO VALVE,K 025179
175
SEAL RING
180
FITTING
215
SUSPENSION EYE
220
COVER CRANKSHAFT,REAR
225
SEAL RING CRANKSHAFT SEALING,REAR
230
GASKET COVER TO CYLINDER CRANKCASE
238
SCREW WATER PUMP COVER TO WATER PUMP HOUSING M 8X28
240
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
250
TIMING CASE
250
TIMING CASE
255
SCREW PLUG STABILIZER
260
CYLINDER PIN. CYLINDRICAL PIN , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
265
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
270
SCREW FITTING
280
GASKET , Replaced By: A3600150480
280
GASKET TIMING CASE TO CYLINDER CRANKCASE
285
SCREW PROPELLER SHAFT TO COUPLING FLANGE
290
COVER
295
SEAL RING
295
SEAL RING
300
POINTER
305
GASKET TIMING CASE COVER TO TIMING CASE
310
SCREW CABLE HARNESS MOUNTING
310
SCREW , Replaced By: N304017008023
315
SCREW DIFFERENTIAL CASE
420
BREATHER PIPE , 000288
425
SEAL RING
450
CLAMP BREATHER PIPE TO OIL PAN
455
BRACKET BREATHER PIPE TO OIL PAN
457
SCREW COVER PLATE TO COVER PLATE M 6 X 10
457
SCREW , Replaced By: N304017006034
459
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
460
NUT BALL PIVOT TO LEVER
600
GASKET KIT CYLINDER CRANKCASE, FOR BREAK-DOWN OF OF GASKET KIT, SEE END OF GROUP 01
999
GASKET. SEAL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3559970149
999
GASKET HEATING PIPE TO ENGINE
999
SEAL RING
999
SEAL RING OIL LINE TO OIL COOLER
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SEALING RING. SEAL RING OIL DRAIN
999
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
999
SEAL RING LINE CONNECTION
999
SEAL RING , 001778
999
SEAL RING TEMPERATURE GAUGE SENDER UNIT
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING INJECTION PUMP
999
SEAL RING FROM FUEL TANK TO FUEL TANK
999
SEAL RING LINE CONNECTION
999
SEAL RING PNEUMATIC VALVE
999
SEAL RING
999
SEAL RING , Replaced By: N007603010110
999
SEAL RING BRACKET TO CYLINDER HEAD
999
SEAL RING SCREW PLUG
999
SEAL RINGBOSCH
999
GASKET OIL FILTER TO CYLINDER CRANKCASE
999
GASKET COVER TO TIMING CASE, Replaced By: A0259976947
999
SEAL RING OIL COOLER CONNECTION
999
GASKET KIT , Replaced By: A3600100280
999
GASKET KIT , EXHAUST STOCK OF OLD PART NUMBER FIRST, Replaced By: A3605860790, +001A3600103220
999
GASKET UPPER COOLING WATER LINE TO CYLINDER HEAD
999
GASKET WATER PUMP TO CYLINDER CRANKCASE
999
GASKET SUCTION PIPE TO OIL PUMP HOUSING
999
GASKET EXHAUST MANIFOLD TO CYLINDER HEAD
999
GASKET INTAKE MANIFOLD
999
GASKET
999
GASKET CYLINDER SIDE COVER TO CYLINDER CRANKCASE
999
CYLINDER HEAD GASKET
999
GASKET CYLINDER HEAD COVER TO CYLINDER HEAD
999
CYLINDER HEAD GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3600160320
999
CYLINDER HEAD COVER , Replaced By: A3270160905
999
GASKET , Replaced By: A3600150480
999
GASKET PUSH ROD CHAMBER COVER TO CYLINDER CRANKCASE
999
GASKET , Replaced By: A3600150222
999
GASKET OIL PAN TO CYLINDER CRANKCASE
999
CYLINDER HEAD ,014209
999
CRANKCASE , RANGE OF DELIVERY INCLUDES: 1 X 352 010 25 66 1 X 327 018 00 53 1 X 326 997 08 20, Replaced By: A3600101108
999
CYLINDER HEAD ,014208
999
CYLINDER HEAD ,014208
999
OIL PAN , Replaced By: A3600100313, +001N007603018101, +001N007604018101
999
CYLINDER HEAD ,014208
999
CYLINDER HEAD ,014208
999
COVER , Replaced By: A3600100116
999
GASKET OUTLET TO ENGINE
999
GASKET INJECTION PUMP DRIVE TO TIMING CASE
999
GASKET
999
SEAL RING DELIVERY LINES
999
GASKET DE-AERATION LINE TO HEATING LINE
999
GASKET , Replaced By: A3522032680
999
GASKETTO 352 010 01 68
999
GUIDE TUBE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 036669, Replaced By: A3520102566
999
CAP , Replaced By: A0000180702
999
GASKET INTAKE MANIFOLD TO CYLINDER HEAD
999
SEAL FUEL LEAK LINE
999
VALVE GUIDE , Replaced By: A3600530330, +001A3600530096
999
VALVE GUIDE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 103937, Replaced By: A3600530230, +001A3600530096
999
VALVE GUIDE , Replaced By: A3600530130, +001A3600530096
999
VALVE GUIDE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 103937, Replaced By: A3600530329, +001A3600530096
999
VALVE GUIDE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 103937, Replaced By: A3600530229, +001A3600530096
999
VALVE GUIDE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 103937, Replaced By: A3600530129, +001A3600530096
999
CYLINDER HEAD GASKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3600160320
999
COVER , FROM ENGINE 002294 ALSO INSTALLED ON, SEE FOOTNOTE 020, Replaced By: A3270150501
999
SEAL HOLDER
999
SEAL RING ANGLE DRIVE
999
BRACKET
999
FLANGE GASKET COVER TO TIMING CASE
999
SEAL RING OIL FILLER PIPE
999
SEAL RING WATER PUMP
999
SEAL RING CRANKSHAFT SEALING,REAR
999
SEAL RING INJECTION TIMING DEVICE
999
SEAL RING ,D 031246
999
SEAL RING FUEL FILTER COVER
999
GASKET , Replaced By: A0004773180
999
BRACKET
999
GASKET FILTER HOUSING TO FILTER HEAD
999
GASKETTO 366 180 09 10
999
GASKET OIL FILTER BOWL WITH FULL-FLOW FILTER TO OIL FILTER HEAD
