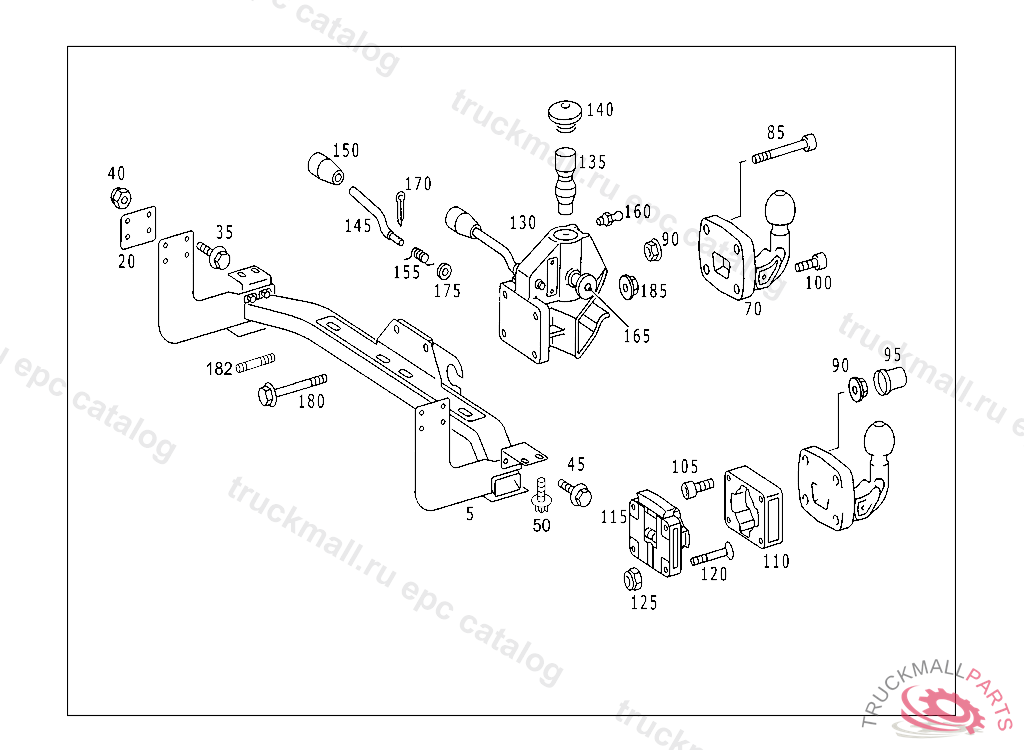

Поз.
Артикул
Описание
5
CROSS MEMBER CROSS MEMBER
20
PLATE 0
35
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
40
NUT BRACKET TO SIDE MEMBER M12X1.5
45
SCREW HITCHING MECHANISM TO STIFFENING SUPPORT
50
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
70
TRAILER COUPLING REAR
85
CAP BOLT. SCREW BELT TIGHTENER TO SUPPORT M10X50,*0211352
90
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
95
CAP TRAILER COUPLING TO COUNTER PLATE
100
CAP BOLT. SCREW COVER ON REAR PART OF TRANSMISSEION CASING M 10X35,041837
105
SCREW ROLLER ON SUPPORT
110
PLATE
115
PLATE WITH COVERING CAP 3,25T
120
SCREW BASE PLATE TO TRAILER COUPLING
120
SCREWM 10X50
125
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
130
COUPLING MOUTH (MOUTH-TYPE COUPLING)
135
COUPLING PINROCKINGER TYP 243 U115 EO/EK
140
COVERROCKINGER TYP 243 U115 EA/EL
145
LEVERROCKINGER TYP 243 U115 EA/EL
150
HANDLE
155
SPRINGROCKINGER TYP 243 U115 EO/EK
160
GREASE NIPPLEROCKINGER
165
LOCK
170
COTTER PIN STRAP TO BRACKET
175
WASHER BRACKET TO AIR INTAKE SCOOP
180
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
182
STUD TRAILER COUPLING TO REAR CROSS MEMBER
185
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
