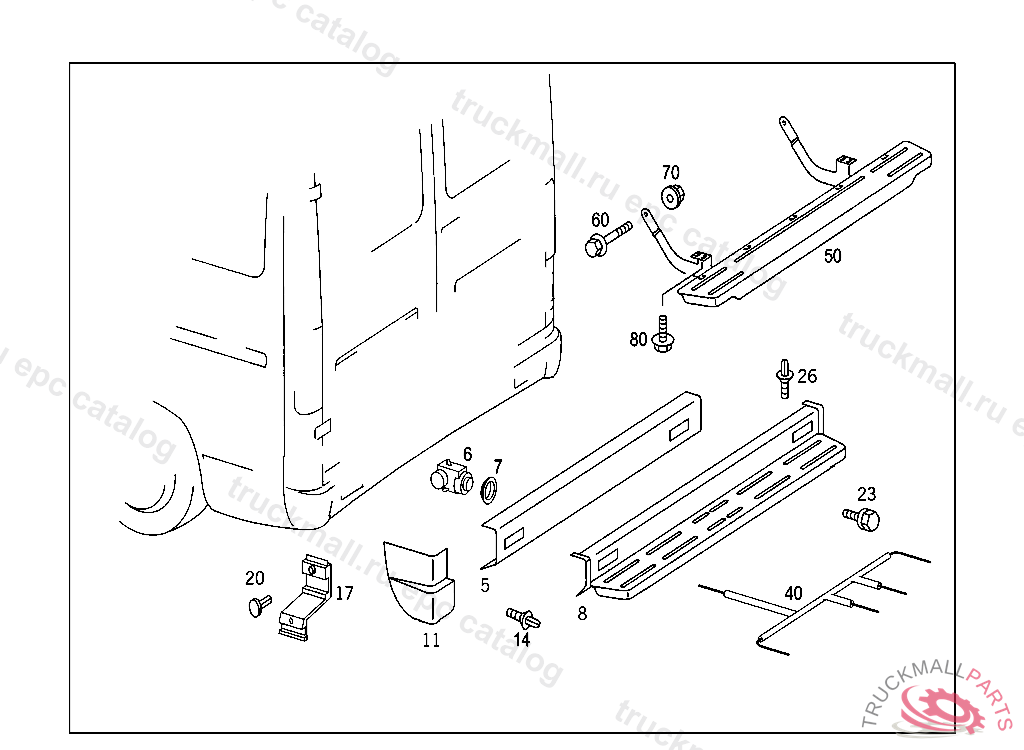

Поз.
Артикул
Описание
5
REAR BUMPER FACE BAR BUMPER,CENTRAL, TO BE PAINTED PRIOR TO INSTALLATION
5
REAR BUMPER BACK-UP AID
5
REAR BUMPER BACK-UP AID
5
REAR BUMPER FACE BAR. REAR BUMPER
6
DISTANCE SENSOR , TO BE PAINTED PRIOR TO INSTALLATION 9999QFT168L9000 COLORLESS, Replaced By: A0045428718
7
SPACER RING PARKTRONIC SYSTEM, A 55589720030630804 E 02000020070101804 A 97499920070630 E 06000020080901809
8
REAR BUMPER FACE BAR WITH STEP, CENTRE REAR
8
REAR BUMPER , TO BE PAINTED PRIOR TO INSTALLATION
11
REAR BUMPER FACE BAR LEFT
11
REAR BUMPER RIGHT
11
REAR BUMPER FACE BAR LEFT
11
REAR BUMPER FACE BAR. REAR BUMPER LEFT, TO BE PAINTED PRIOR TO INSTALLATION
11
REAR BUMPER FACE BAR LEFT, TO BE PAINTED PRIOR TO INSTALLATION
11
REAR BUMPER FACE BAR. REAR BUMPER RIGHT
11
REAR BUMPER FACE BAR. REAR BUMPER RIGHT, TO BE PAINTED PRIOR TO INSTALLATION
11
REAR BUMPER FACE BAR RIGHT, TO BE PAINTED PRIOR TO INSTALLATION
14
RIVET FASTENING FOR LINING
17
BRACKET LEFT
17
BRACKET RIGHT
20
GUIDE
23
SCREW
26
RIVET FASTENING FOR LINING
40
WIRING HARNESS BACK-UP AID
50
RUNNING BOARD WHEELBASE: 3000MM
50
RUNNING BOARD
60
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
70
NUT BRACKET TO SIDE MEMBER M12X1.5
80
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
