Главная
›
Mercedes
›
VAN
›
208 CDI TO IDENT-NR. R337626
›
901.671
›
78 SLIDING ROOF
›
025 ELECTRIC GLASS TILTING ROOF
Mercedes N007985005530 - Болт

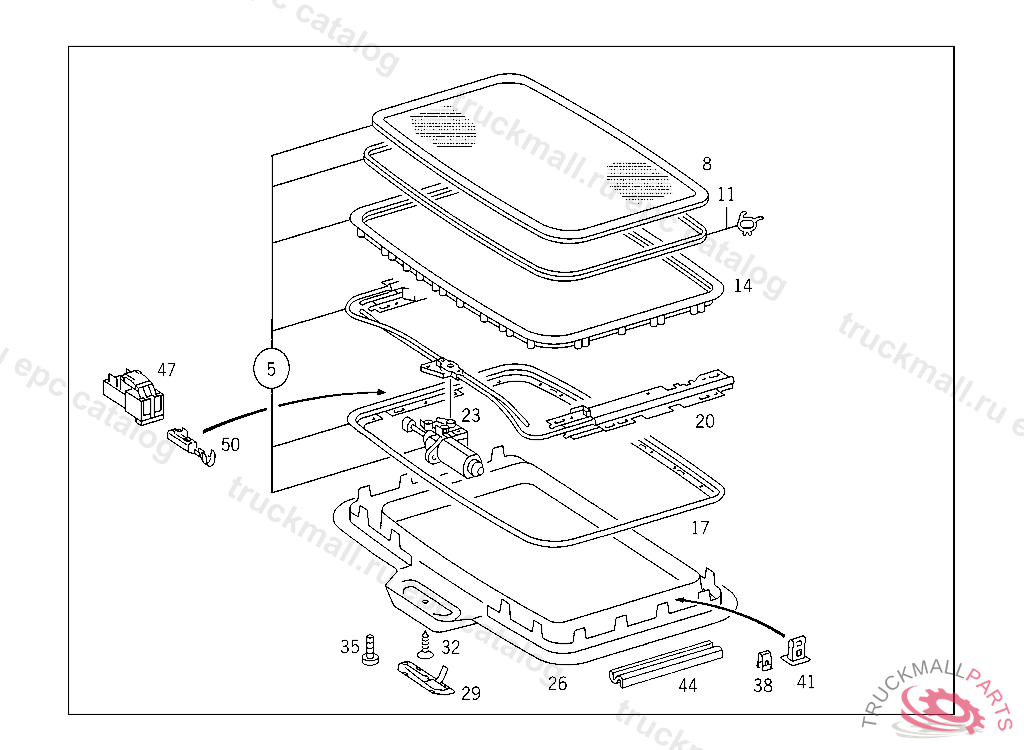

208 CDI TO IDENT-NR. R337626 901.671
78 SLIDING ROOF - 025 ELECTRIC GLASS TILTING ROOF
Поз.
Артикул
Описание
5
A9018300642
LIFTING GLASS ROOF REAR 4025
8
A0008370588
GLASS PANE
11
A0008372498
SEALKLEBEBAND
11
A0008371298
SEAL LIFTING GLASS ROOF
14
A0008300865
FRAME
17
A0008300965
FRAME
20
A0007800007
DRIVE
23
A0018350002
MOTOR. ENGINE
26
A9018370330
FRAME ELEVATED ROOF
29
A9018300052
COVERING. COVER
29
A9018300652
COVER EMERGENCY CONTROL
32
N007985005530
SCREW AT FRAME M5X20
32
N000000002035
SCREW. HEXALOBULAR BOLT COVER TO MOUNTING FRAME M5X12
32
A0019901021
BOLT. SCREWTO 008 154 80 02
35
N914145005700
SCREW
38
A0089884278
CLIP LEFT STABILIZER MOUNTING
41
A0089884378
CLIP REAR
44
A9018370150
REST SEAL, TO BE ADAPTED DURING ASSEMBLY
47
A0325458128
PLUG
50
A0085454326
PLUG SOCKET
