Mercedes N910105008005 - БОЛТ М8

208CDI, 211CDI, 213CDI, 216CDI FROM IDENT-NR. R337627, 5337627, A901274 902.622

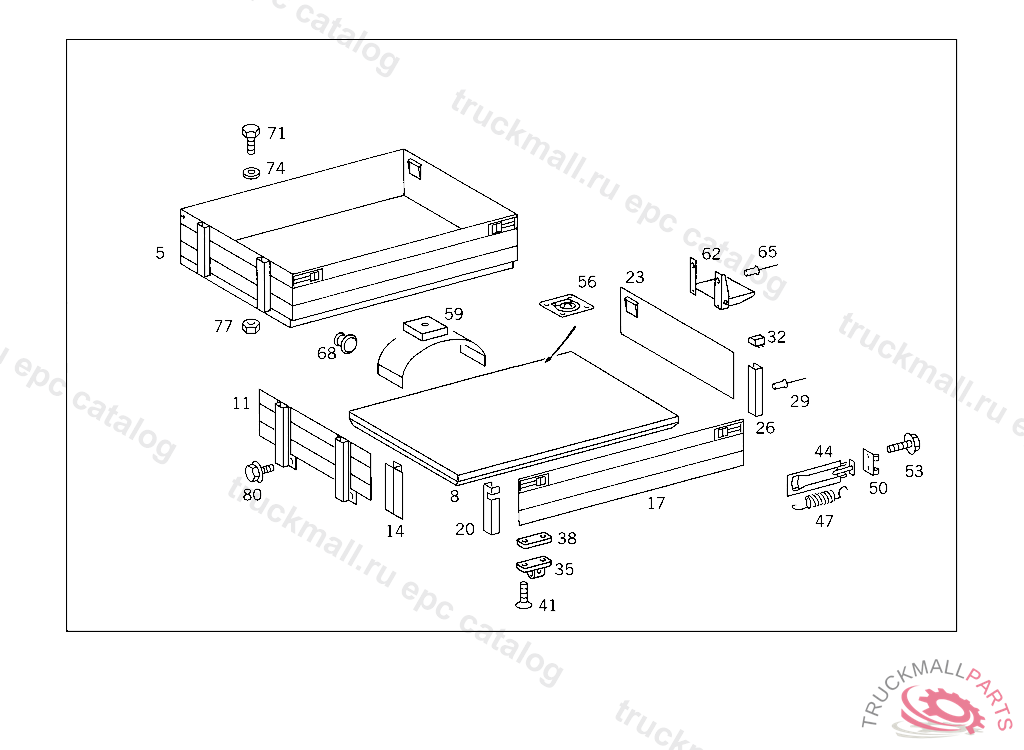

60 BODY SHELL AND PLATFORM - 105 PLATFORM

Поз.
Артикул
Описание
5
A9016000320
PLATFORM LONG CAB, WITH UNDERRUN PROTECTION 2756 MM
5
A9016000903
PLATFORM LONG CAB 2756MM
8
A0006100982
FLOOR LAYER-GLUED PLATE
11
A0006200202
FRONT PANEL1932 MM
14
A0006470535
RAIL FRONT PANEL,LEFT
14
A0006470635
RAIL FRONT PANEL,RIGHT
17
A0006300001
SIDE PANEL2759 MM
20
A0006370034
RAIL ON LEFT SIDE PANEL AT THE REAR,AND ON RIGHT SIDE PANEL AT THE FRONT
20
A0006370134
RAIL ON LEFT SIDE PANEL AT THE FRONT,AND ON RIGHT SIDE PANEL AT THE REAR
23
A0006400001
REAR PANEL1932 MM
26
A0006470835
RAIL REAR PANEL,RIGHT
26
A0006470735
RAIL REAR PANEL,LEFT
29
A0009910980
CLINCH-PIN RAIL TO FLAP
32
A0006260043
CAP
35
A0006300182
HINGE PLATFORM SIDE AND END PANELS
38
A0006020011
PLATE
41
N000966008031
SCREW FOLDING STEP TO REAR PANEL,546180
44
A0006300290
FASTENER PLATFORM PANEL FASTENER
47
A0009935710
SPRING PLATFORM PANEL FASTENER
50
A0006300089
TAKE-UP DEVICE PLATFORM PANEL FASTENER
53
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
56
A0009881091
EYE ANCHORING LUG
59
A0008890090
SPACER REAR FENDER TO PLATFORM
62
A0008500102
FOLDING STEP FOR REAR PANEL
65
A0009910980
CLINCH-PIN RAIL TO FLAP
68
A0029871040
RUBBER BUFFER FOLDING STEP AND SIDE PANEL
71
N304017010038
HEXAGON HEAD BOLT BRACKET TO BRACKET
74
N007349010007
WASHER STRUT TO CROSS MEMBER
77
N910113010001
NUT CROSS MEMBER TO SIDE MEMBERS
80
N910105008011
SCREW STOP TO BATTERY CASE
