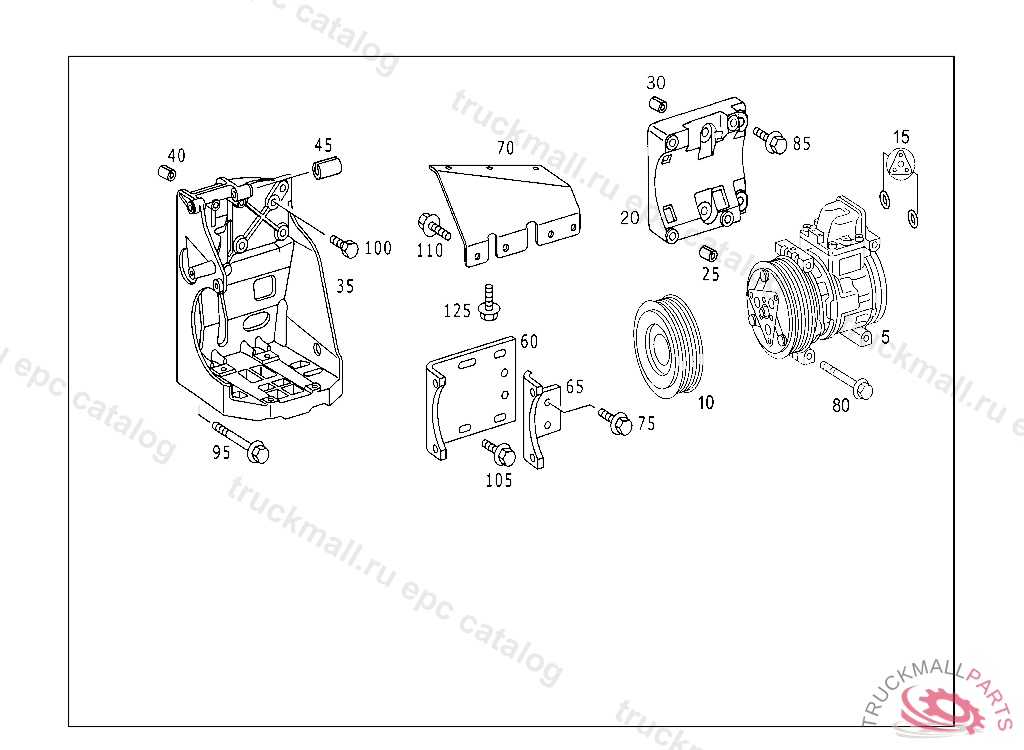

Поз.
Артикул
Описание
5
COMPRESSOR WITH COUPLING
5
COMPRESSOR
10
COUPLING REFRIGERANT COMPRESSOR
15
GASKET KIT
20
CONSOLE REFRIGERANT COMPRESSOR
20
CONSOLE REFRIGERANT COMPRESSOR, Replaced By: A9042300942
25
SLEEVE
30
SLEEVEFRIGOBLOCK
35
SUPPORT
35
CONSOLE
40
SLEEVEFRIGOBLOCK
45
BUSHING
60
BRACKET
65
BRACKET
70
BRACKET BRACKET TO REFRIGERANT COMPRESSOR SUPPORT
75
SCREWM 10X20
80
SCREW VALVE TO TRANSMISSION CASE COVER
85
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
95
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
95
SCREW AT FRAME
95
HEXAGON HEAD BOLT MOUNTING,GAS CYLINDERS M10X110
100
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
105
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
110
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
125
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
