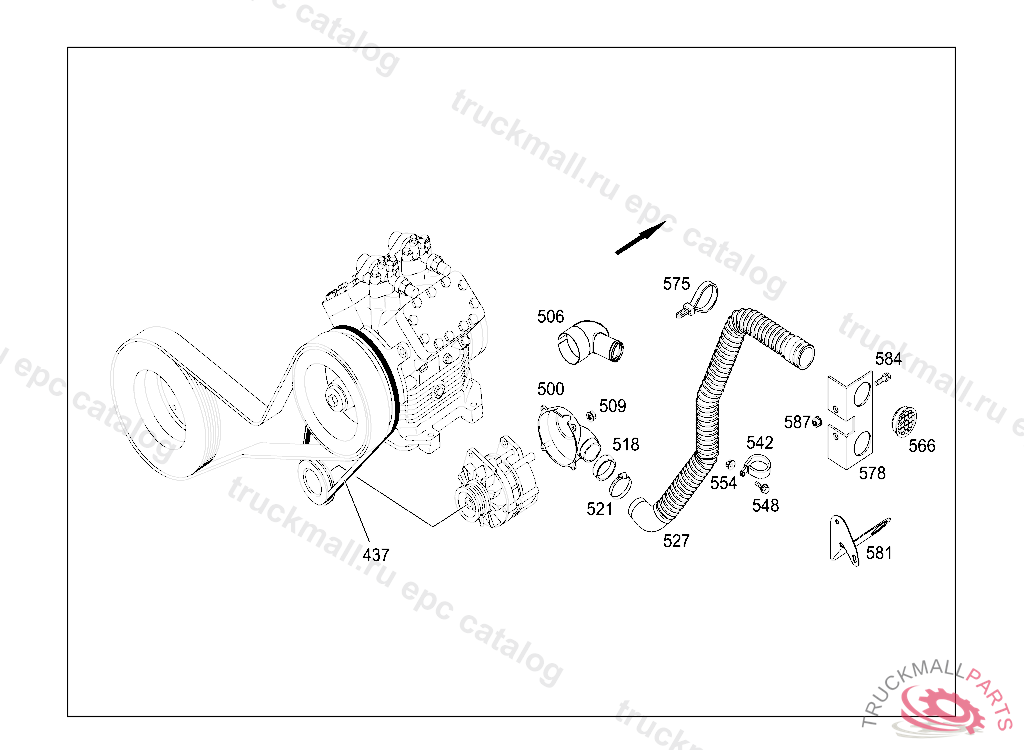

Поз.
Артикул
Описание
437
V-BELT1050 MM
500
COVER
506
AIR INTAKE PIPE ALTERNATOR AIR INTAKE DREHSTROMGENERATOR
509
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
518
INTERMEDIATE PIECE70X60X25MM
521
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
521
CLAMP CONNECTION OF COOLING WATER LINES 55-75X13MM
527
HOSE
527
HOSE INTAKE HOUSE LUFTANSAUGUNG DREHSTROMGENERATOR
527
HOSE1200MM
542
CLAMP42/20
542
CLAMP76-25 W3 RSGU
542
CLAMP10/15
542
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
542
CLAMP42/20, Replaced By: N000000007548
542
CLAMP76/25MM, Replaced By: N000000006128
542
CLAMP76/25MM
542
CLAMP , Replaced By: N916016010211
548
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
548
SCREW , Replaced By: N910143008002
548
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
554
NUT , Replaced By: N913023010002
554
NUT , Replaced By: N913023006001
566
PROTECTIVE GRILLE ALTERNATOR AIR INTAKE
575
CABLE TIE310X5MM
578
BRACKET
581
PLATE AIR INTAKE HOSE
584
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
584
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
587
NUT , Replaced By: N913023006001
587
NUT HORN TO BRACKET M8
