Главная
›
Mercedes
›
VAN
›
314, 308CDI, 311CDI, 313CDI, 316CDI FROM IDENT-NR. R337627, 5337627, A901274
›
903.611
›

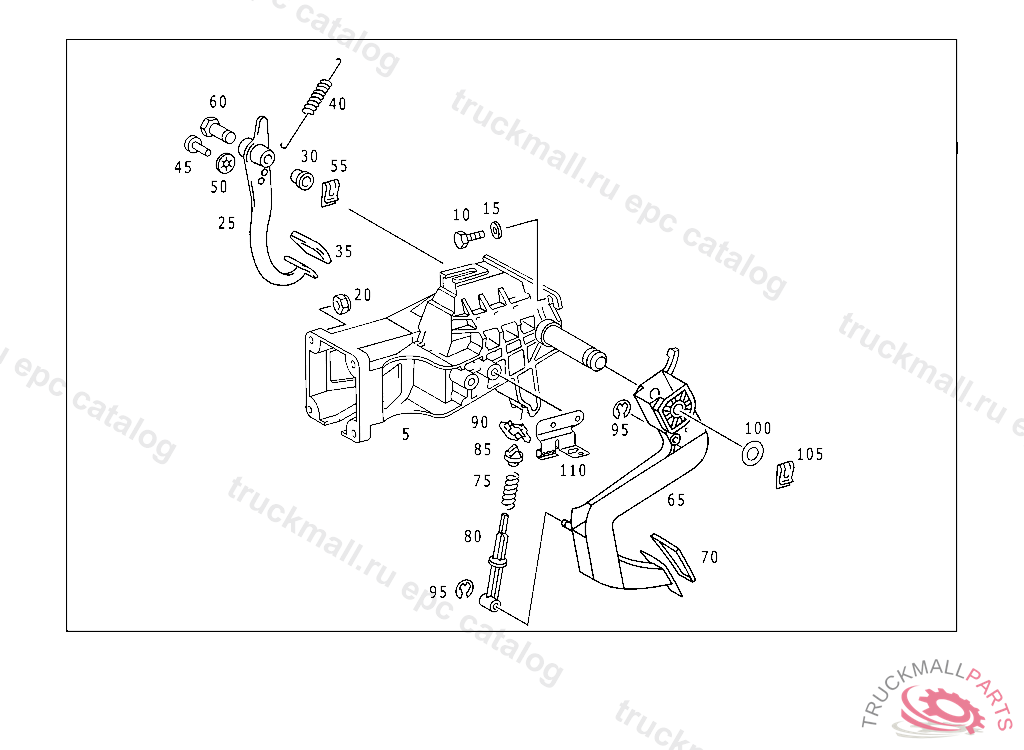

29 PEDAL ASSEMBLY
›
090 CLUTCH AND BRAKE PEDAL ASSEMBLY
Mercedes A1262920074 - Болт
314, 308CDI, 311CDI, 313CDI, 316CDI FROM IDENT-NR. R337627, 5337627, A901274 903.611
29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
Поз.
Артикул
Описание
5
A9012901119
BEARING BRACKET PEDAL ASSEMBLY
5
A9012900919
BEARING BRACKET , Replaced By: A9012901119
5
A9012900719
BEARING BRACKET PEDAL ASSEMBLY
10
N910106008018
SCREW ENGINE MOUNTING TO FRONT CROSS MEMBER
15
N009021008213
WASHER BRACKET TO LEFT SIDE MEMBER
15
N000000003250
WASHER BRACKET TO CAB REAR PANEL
20
N913023008003
NUT HORN TO BRACKET M8
25
A9012901118
BRAKE PEDAL
30
A1242920050
BUSHING BRAKE PEDAL
35
A6382920082
PAD BRAKE PEDAL TO 638 290 03 18, 05 18, 901 290 05 18
40
A9019931210
SPRING BRAKE PEDAL,A 510086
45
A1262920074
PIN BRAKE PEDAL TO BRAKE BOOSTER
50
N912011008000
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
55
A0009941151
LOCK AT WATER EXPANSION TANK
60
A9012940474
PIN BRAKE PEDAL TO BEARING BRACKET
65
A9012902416
CLUTCH PEDAL. PEDAL (CLUTCH PEDAL)
70
A3192920082
COVERING. PAD CLUTCH AND BRAKE
75
A9019933001
SPRING OVER-CENTER ACTING SPRING
80
A2012910633
ROD
85
A1232910491
SPRING RETAINER OVER-CENTER ACTING SPRING
90
A9019880578
CLIP
95
N006799006003
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
100
A1152910076
WASHER PEDALS TO PIVOT PINS
105
A0009941151
LOCK AT WATER EXPANSION TANK
110
A9012900032
STOP CLUTCH PEDAL
