Главная
›
Mercedes
›
VAN
›
314, 308,CDI, 311CDI, 313CDI, 316CDI FROM IDENT-NR. R337627, 5337627, A901274
›
903.613
›
84 TRUNKS AND CASES
›
997 BACKUP AID

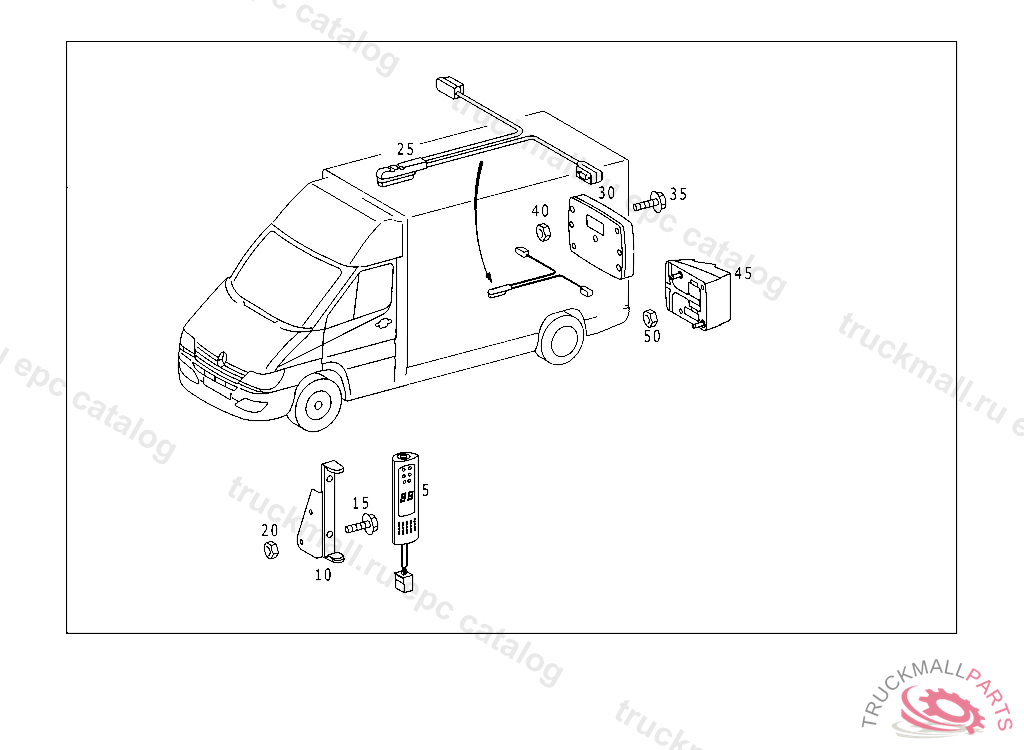

Mercedes A9015400245 - Блок управления
314, 308,CDI, 311CDI, 313CDI, 316CDI FROM IDENT-NR. R337627, 5337627, A901274 903.613
84 TRUNKS AND CASES - 997 BACKUP AID
Поз.
Артикул
Описание
5
A9015422717
SENDER UNIT
10
A9015401173
BRACKET
15
N000000000117
SCREW VALVE TO BRACKET M4X14
20
N910104004000
NUT-AND-WASHER ASSEMBLY ANTENNA AT BRACKET M4
20
N913002004001
NUT ATTACHMENT, MARKER LIGHT
25
A9015400505
WIRING HARNESS. CABLE HARNESS FROM CONTROL UNIT TO SENSOR
30
A9015400245
CONTROL UNIT BACK-UP AID
35
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
40
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
40
N913023008003
NUT HORN TO BRACKET M8
45
A9015420918
SENDER UNIT
50
N910112006003
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
